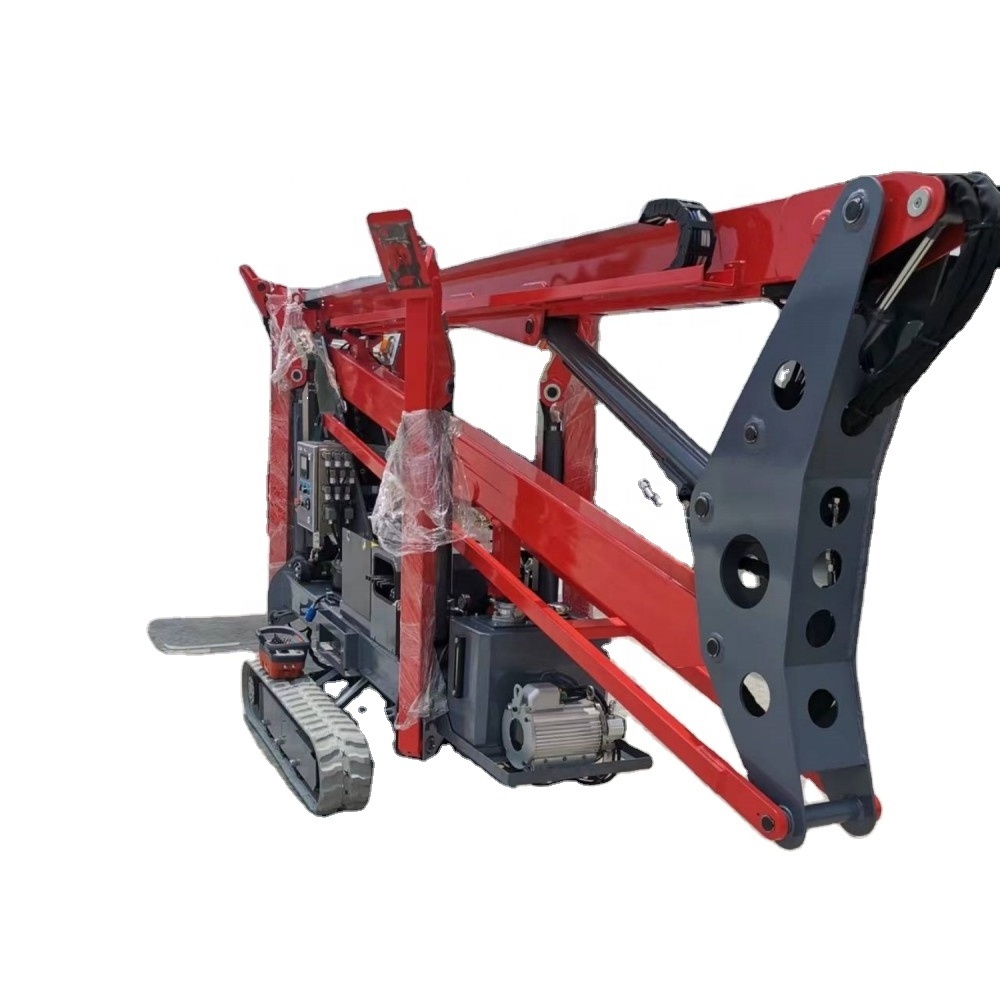

Chinese small light cherry picker 12m, 15m,18m

Type KD-X18
working height (m) 18.00
Platform height (m) 16.00
Safe load (kg) 200
Size of platform (m) 1.0×0.8×1.1
Outreach (m) 7.20
Rotation of jib 180°
Rotation of work cage 180°
Rotation range 360°
Overall length (m) 5.30
Overall width (m) 1.46
Overall height (m) 2.24
Total weight (kg) 2200
Standard jacked area 30%
Speed (km/h) 0-1.3
Climability 30%
Power13HP gas + 220V mains

Type KD-X15
working height (m) 15.00
Platform height (m) 13.00
Safe load (kg) 200
Size of platform (m) 0.95×0.65×1.1
Outreach (m) 6.20
Rotation of jib 180°
Rotation of work cage 180°
Rotation range 360°
Overall length (m) 5.16
Overall width (m) 0.9
Overall height (m) 2.1
Total weight (kg) 1900
Standard jacked area 30%
Speed (km/h) 0-1.3
Climability 30%
Power :13HP gas + 220V mains

—Made of high strength steel, and the European production of hydraulic, control,
parts;
—Pipeline all the built-in, to avoid the sun and rain or foreign objects tangled;
—Shape lightweight, low pressure rubber tracks on the ground, can travel, work on
any ground;
—Outrigger separately controlled to bypass obstacles in a limited space work;
—Reliable torque control to ensure that the vehicle will not roll;
—Wired remote control walks, working bucket with 220V outlet;
