Quick Details
-
Weight (KG):
-
0.5 KG
-
Laser Type:
-
Diode
-
Wavelenght:
-
650nm
-
Operation Current:
-
<25mA
-
Operation Voltage:
-
DC 3v
-
Probe size:
-
6*25mm
-
Operating Temperature:
-
-10 ~ +50
-
Output power:
-
2mw
-
Dot size:
-
4mm by 5m
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Spare Parts Type:
-
laser module
-
Brand Name:
-
SNLASER
-
Weight (KG):
-
0.5 KG
-
Laser Type:
-
Diode
-
Wavelenght:
-
650nm
-
Operation Current:
-
<25mA
-
Operation Voltage:
-
DC 3v
-
Probe size:
-
6*25mm
-
Operating Temperature:
-
-10 ~ +50
-
Output power:
-
2mw
-
Dot size:
-
4mm by 5m
Red diod laser point

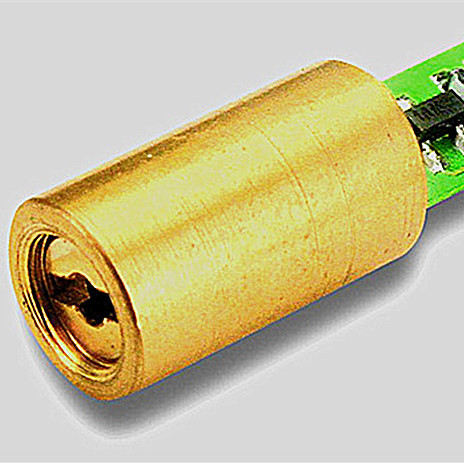

RED LASER POINT MODULE
Model IE75-05P6
Specification Information
|
Wavelength |
650nm +/- 10nm |
|
Output Power |
more than 2.0mW (CLASS a) |
|
PCB |
APC (Automatic Power Control) |
|
Focus |
BY Lens |
|
Dot Size |
Spot Dot. Setting at 4mm to 6mm at 5M of distance (Adjustable) |
|
Operation Voltage |
3VDC |
|
Operation Current |
<25mA |
|
Power Line |
100mm of power line (red/black) in the end of module |
|
Expected Life Time |
6000Hrs |
|
Probe size |
6×25mm |
|
Operating Temperature |
-10 ~ +50 |
