Quick Details
-
Voltage:
-
110V/220V/380V
-
Power:
-
14kw
-
Dimension(L*W*H):
-
1470*750*1200cm
-
Weight (KG):
-
150
-
Marketing Type:
-
New Product 2022
-
Evaporation Capacity(kg/h):
-
50~1000
-
Product name:
-
Drum Dryer
-
motor power:
-
0.75kw
-
heating power:
-
14kw
-
Number of heating pipes:
-
560mm*21
-
Dimensions:
-
1470*750*1200mm
-
Weight:
-
150kg
-
After-sales Service Provided:
-
Online Support
-
Keywords:
-
Dryer Drying Machine
-
Heating source:
-
Electricity Gas
-
Usage:
-
Reduce Material's Moisture
Quick Details
-
Type:
-
Drum Drying Equipment
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XingDian
-
Voltage:
-
110V/220V/380V
-
Power:
-
14kw
-
Dimension(L*W*H):
-
1470*750*1200cm
-
Weight (KG):
-
150
-
Marketing Type:
-
New Product 2022
-
Evaporation Capacity(kg/h):
-
50~1000
-
Product name:
-
Drum Dryer
-
motor power:
-
0.75kw
-
heating power:
-
14kw
-
Number of heating pipes:
-
560mm*21
-
Dimensions:
-
1470*750*1200mm
-
Weight:
-
150kg
-
After-sales Service Provided:
-
Online Support
-
Keywords:
-
Dryer Drying Machine
-
Heating source:
-
Electricity Gas
-
Usage:
-
Reduce Material's Moisture
Product Overview

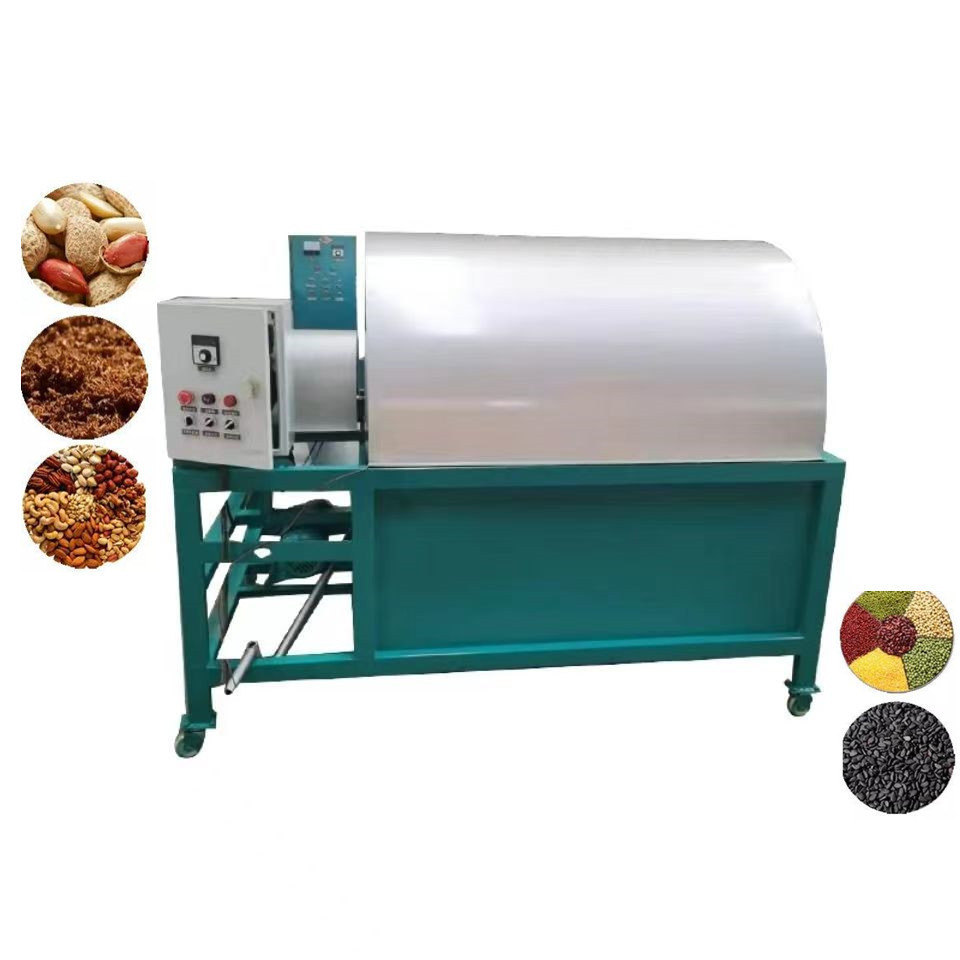

Electric Heating Rotary Drum Dryer / Automatic Heating Drying Electromagnetic Roaster Drum Dryer
Dryer machine including box and drum two parts, the main body adopts the reverse flow tower type internal circulation structure,the overall modular structure,which make it easy to disassemble and transport, small occupation, good drying quality, low labor operation intensity, low equipment cost.Integrated butt joint design of heating system and drum, compact structure, low energy consumption, high thermal efficiency.Small dryer conform to international continuous improvement of material drying quality, reduce energy consumption, reduce losses, conform to the green, quality, fresh drying concept.
FEATURES AT A GLANCE
⭐Features
1.Take hot air as the drying medium, adopt the cycle drying process, the material is evenly heated and fully dehydrated, and the quality after drying is good;
2.equipped with automatic online temperature measurement, humidity measurement device.
3.automatic shutdown, simple operation, greatly reduce labor costs.
4.At the same time at dry can also achieve the purpose of sterilization and deodorization.
5.Wide application range and good drying uniformity
Leisure food industry: melon seeds, peanuts, cashew nuts, almonds, chestnuts, walnuts and so on.
Cereals processing industry: corn, sorghum, rice, glutinous rice, barley, wheat, buckwheat, mung beans, red beans and so on.
Oil extraction industry: sesame, rapeseed, soybean and so on.
Spices industry: chili, pepper, anise, fennel, etc..
Tea making industry: fixing and drying.
Chemical industry: drying and heating chemical raw materials.
Fuel type:heat fuel type can choose coal,wood or gas,diesel,electric,etc.Below is different configurations and introduction please check.
Body material:Body can be carbon steel or 304SUS stainless steel,316SUS steel,if you need customed please tell us.
PRODUCT SPECIFICATIONS
|
Model
|
Drum Size(MM)
|
Dimensions(MM)
|
Motor/Heating Power(KW)
|
Output (KG/h)
|
|
XD-50
|
500*530
|
1470*750*1200
|
0.75kw/14kw
|
50
|
|
XD-100
|
640*750
|
1750*850*1250
|
1.1kw/19.2kw
|
100
|
|
XD-150
|
750*880
|
1750*950*1250
|
1.1kw/22.5kw
|
150
|
|
XD-200
|
800*1000
|
2200*1050*1400
|
1.5kw/26kw
|
200
|
|
XD-300
|
900*1000
|
2200*1150*1400
|
1.5kw/33kw
|
300
|
|
XD-500
|
1000*1500
|
2900*1300*1600
|
3kw/43kw
|
500
|
|
XD-800
|
1200*2000
|
3400*1500*1800
|
4kw/63kw
|
800
|
|
XD-1000
|
1200*2500
|
3900*1500*1800
|
4kw/78kw
|
1000
|
Details Images
Finished product
Packing and shipping:
Company information:
Our services:
1) Highly inspecting equipments in every working procedure, quality comes first; Fast & Safe Delivery;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging;
