The product size is adjustable on required in the range of 80-425 meshes. Some of the materials up to 2,000 mesh.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
11149X7484X10227
-
Weight:
-
15000 KG
-
Product name:
-
Top
-
Material:
-
Steel Material
-
Raw material:
-
Stones Rocks Ores
-
Price:
-
Lowest
-
Certification:
-
ISO 9001
-
Model:
-
YGM190
-
Function:
-
Mining Crusher Equipment
-
Advantage:
-
Low Cost High
-
Usage:
-
Combine
-
Service:
-
Responsible
Quick Details
-
Capacity(t/h):
-
6-15t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TYM
-
Dimension(L*W*H):
-
11149X7484X10227
-
Weight:
-
15000 KG
-
Product name:
-
Top
-
Material:
-
Steel Material
-
Raw material:
-
Stones Rocks Ores
-
Price:
-
Lowest
-
Certification:
-
ISO 9001
-
Model:
-
YGM190
-
Function:
-
Mining Crusher Equipment
-
Advantage:
-
Low Cost High
-
Usage:
-
Combine
-
Service:
-
Responsible

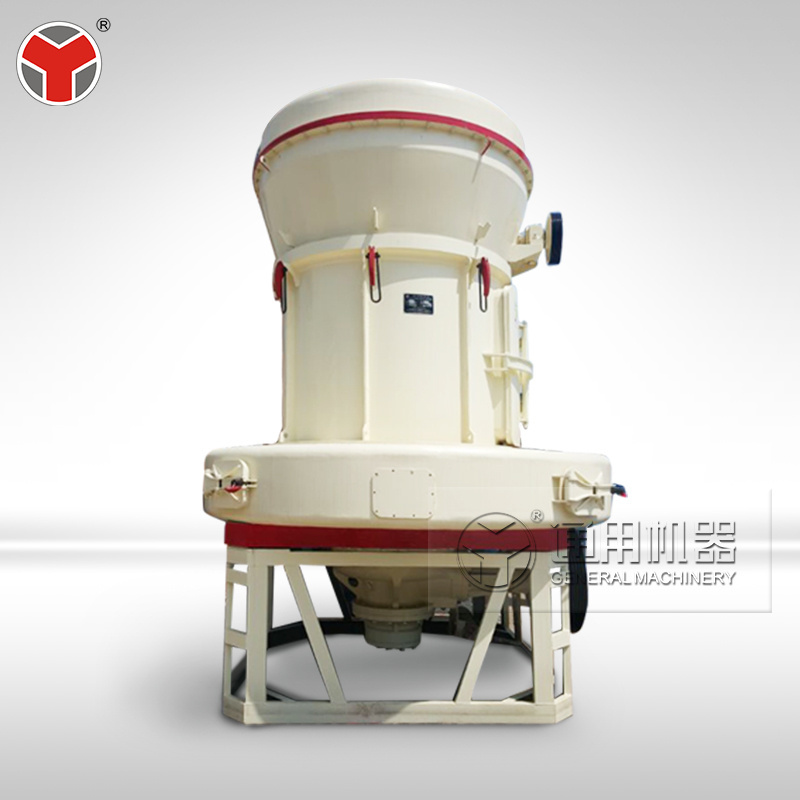

Products Description
Raymond Grinder (Raymond Mill) is used to grind barite, calcite, potash feldspar, talcum, marble,limestone, and slag below scale 7 of Moth'S hardness and 280-odd sorts of non-inflammable and non-explosive stuff in the traded of mining, building material, chemical engineering and metallurgy for power generation and processing.
Working principles
Load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring.When the roller rolls,the stuff is thus grind.
Load the stuff for grinding evenly and continuously into the grinding chamber of the main frame. Due to the centrifugal force in rotation, the roller swings outward and presses closely upon the ring. The shovel carries the stuff to the space between the roller and ring.When the roller rolls,the stuff is thus grind.
Grinding mill classifier
Medium body
grinding mill main unit
New type cage classifier
The classifier adopts a built-in large blade cone turbine classifier, and the particle size of the finished product can be adjusted within 60-400 mesh, which improves the classification.
New Reducer
The reducer is changed to a new type of reducer. The speed of the main machine can be changed from a single speed to an appropriate adjustment of the main machine speed according to the needs of users, and the grinding force is increased to increase the output.
Internal structure of the mill
Larger size grinding rollers and ring with less rollers designing. Compared with traditional models of the same price,the grinding capacity increased 20%, because the conveying space of the grinding chamber is increased, and the conveying resistance is reduced.
Milling Production Line
Material after jaw crusher, bucket elevator sent by the storage silo, by electromagnetic vibrating feeder evenly continuously sent to the host material for grinding, polishing powder separator after blowing blower in action sorting machines, powder after sorting by pipeline to the storagesilos, and finally by the outlet valve output is finished.
Entire production line work process pressure is negative, the first fan blowing air through pipes accompanied powder into the storage silo upper cyclone collector, returned by the return air blower pipe to form air recycling. Secondly, powder collector with the bottom lock powder feeder, its role is to set the external positive pressure gas and powder isolated negative pressure gas, greatly improving the yield. Again, the bottom of the host residual air and dust were sent through a pipeline to filter baghouse dust and other impurities are adsorbed baghouse, effective protection of the environment.
Entire production line work process pressure is negative, the first fan blowing air through pipes accompanied powder into the storage silo upper cyclone collector, returned by the return air blower pipe to form air recycling. Secondly, powder collector with the bottom lock powder feeder, its role is to set the external positive pressure gas and powder isolated negative pressure gas, greatly improving the yield. Again, the bottom of the host residual air and dust were sent through a pipeline to filter baghouse dust and other impurities are adsorbed baghouse, effective protection of the environment.
It is mainly used in the field of metallurgy, building materials, chemicals, mining and such mineral materials for grinding process. This mill can grind materials with Mohs hardness below 9.3 and humidity below 6%, variousnon-tlammable mineral materials„, such as quartz, feldspar, calcite, talcum, barite, fluorite, rare earth, marble,ceramics, bauxite, manganese ore, iron ore, copperore, phosphate rock, iron oxide red, Zircon sand, slagand so on.
Main technical parameters
|
Model
|
Grinding roller nummer
|
Max.feeding size(mm)
|
The final size(mm)
|
Capacity(t)
|
Power(kw)
|
Overall dimension(m)
|
|
YGM65
|
3
|
15
|
0.613-0.033
|
0.4-1.8
|
15
|
4.1*3.3*4.5
|
|
YGM75
|
3
|
15
|
0.613-0.033
|
1-3
|
18.5
|
4.3*3.5*5.1
|
|
YGM85
|
3
|
20
|
0.613-0.033
|
1.2-4.6
|
22
|
5.3*4.1*5.2
|
|
YGM95
|
4
|
25
|
0.613-0.033
|
2.1-5.6
|
37
|
7.1*5.9*7.9
|
|
YGM130
|
5
|
30
|
0.613-0.033
|
3-9.5
|
75
|
7.85*8*9.7
|
|
YGM1500
|
4
|
30
|
0.95-0.038
|
5-10
|
90
|
11.15*7.48*10.23
|
|
YGM160
|
6
|
35
|
1.9-0.045
|
8-16
|
132
|
12.55*7.5*8.355
|
|
YGM190
|
5
|
35
|
0.613-0.033
|
12-26
|
200
|
11.47*6.94*9.58
|
Our Customers Site
Our factory is specialized in the production of Raymond grinding mill for more than 20 years, is the leading brand in the industry. We have accumulated rich practical experience, and the case sites cover more than 30 countries in the world, including mining, cement, metallurgy, chemical, construction waste and other fields. We can provide EPC project general contracting and other complete solutions.
This is our limestone grinding mill site in Zambian！
The customer's requirements:
Raw material: limestone, capacity: 25 tons/hour, finished products: 200mesh.
Raw material: limestone, capacity: 25 tons/hour, finished products: 200mesh.
Equipment configuration: 2 sets YGM160.
This is our Kaolin grinding mill site in Thailand！
The customer's requirements:
Raw material: Kaolin, capacity: 3 tons/hour, finished products: 325mesh.
Raw material: Kaolin, capacity: 3 tons/hour, finished products: 325mesh.
Equipment configuration: MTW110.
This is our bentonite grinding mill site in Lebanon！
The customer's requirements:
Raw material: Bentonite, capacity: 8 tons/hour, finished products: 200-250mesh.
Raw material: Bentonite, capacity: 8 tons/hour, finished products: 200-250mesh.
Equipment configuration: MTW110.
This is our bentonite grinding mill site in Columbia！
The customer's requirements:
Raw material: Gypsum, capacity: 8 tons/hour, finished products: 300mesh.
Raw material: Gypsum, capacity: 8 tons/hour, finished products: 300mesh.
Equipment configuration: YGM1500.
