Quick Details
-
Product name:
-
Directly Burial Double Sheath Double Armor Optical Cable GYTA53
-
Strength member:
-
Central steel wire & Aluminum tape
-
Jacket Material:
-
PE
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Package:
-
1/2/3km/roll, other length is also available
-
Cable Diameter:
-
9.0 Mm-16 Mm
-
Fiber count:
-
2-144 Cores
-
Standard:
-
IEC 60794-1
-
Application:
-
Telecom Comunication
Quick Details
-
Brand Name:
-
KXOFC
-
Model Number:
-
GYTA53, GYTA53
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
Directly Burial Double Sheath Double Armor Optical Cable GYTA53
-
Strength member:
-
Central steel wire & Aluminum tape
-
Jacket Material:
-
PE
-
Fiber Type:
-
G652D/G657A1/G657A2
-
Package:
-
1/2/3km/roll, other length is also available
-
Cable Diameter:
-
9.0 Mm-16 Mm
-
Fiber count:
-
2-144 Cores
-
Standard:
-
IEC 60794-1
-
Application:
-
Telecom Comunication
Products Description
Underground Armored double sheath fiber optic cable

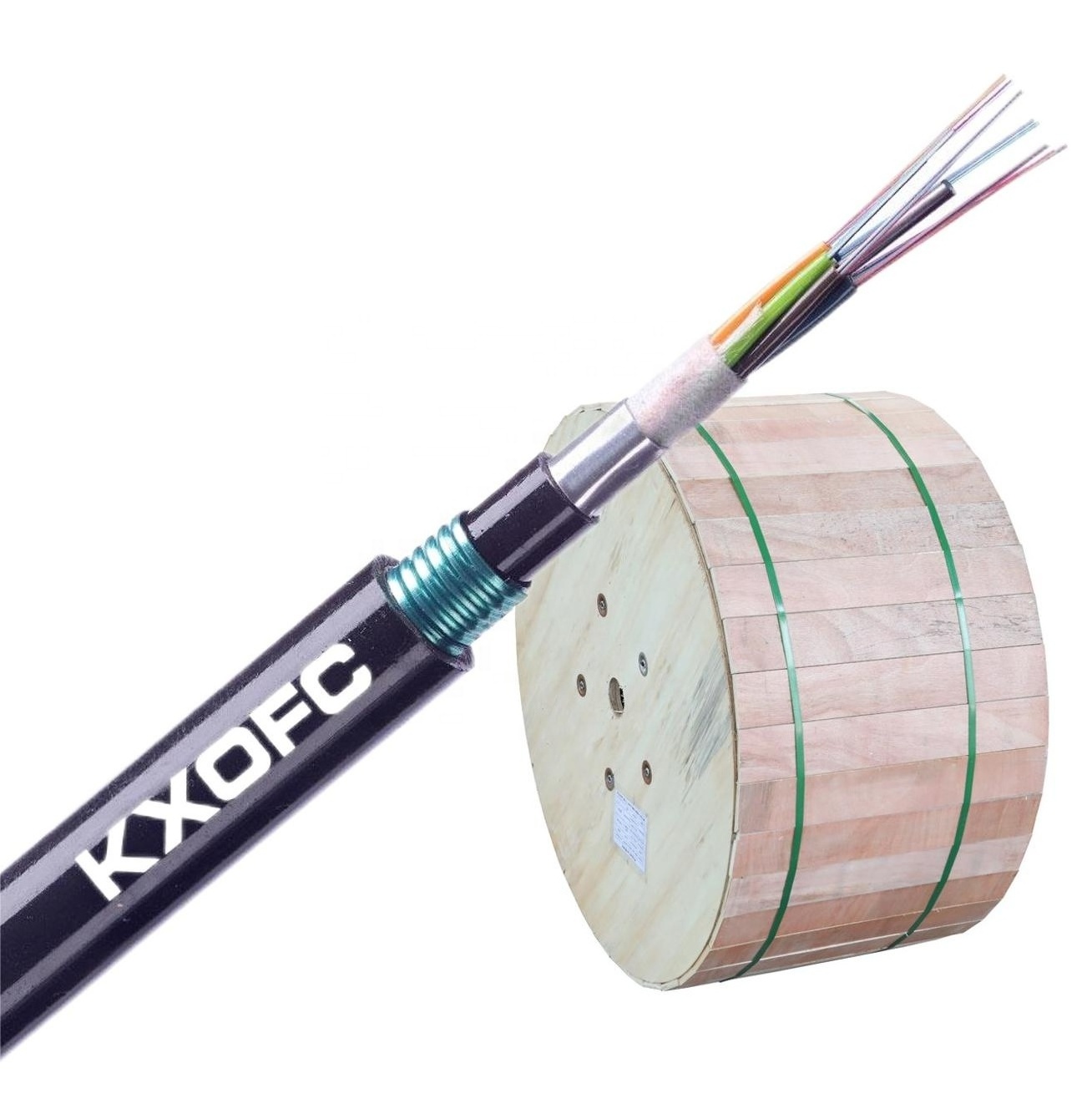

Directly Burial Double Sheath Double Armor Optical Cable GYTA53
*
Optical fibers are housed in loose tubes that made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a central strength member to form a cable core.
*
The core is protected with Aluminum tape, a layer of inner PE sheath and corrugated steel tape. Then another layer outer PE sheath is extruded.
|
Structure
|
Unit
|
Parameter
|
|
|
|
|
||||
|
Fiber Counts
|
Fibers
|
4-30
|
32-60
|
62-72
|
74-84
|
86-96
|
||||
|
Element
|
--
|
5
|
|
6
|
7
|
8
|
||||
|
Loose Tube Diameter
|
MM
|
1.75
|
2.05
|
2.05
|
2.1
|
2.1
|
||||
|
Cores of per tube
(no more than)
|
--
|
6
|
12
|
12
|
|
|
||||
|
Central Steel Wire/PE Sheath
(if required)
|
MM
|
1.4
|
1.6
|
2.2
|
1.8(2.9)
|
1.8(3.5)
|
||||
|
Cable Diameter(Nom.)
|
MM
|
11.3
|
12.1
|
12.7
|
13.4
|
14.0
|
||||
|
Weight(Approx.)
|
Kg/Km
|
125(116)
|
145(133)
|
170(148)
|
177(162)
|
192(177)
|
||||
|
Structure
|
Unit
|
Parameter
|
|
|
|
|
||||
|
Fiber Counts
|
Fibers
|
98-108
|
110-120
|
122-132
|
134-144
|
|
||||
|
Element
|
--
|
9
|
10
|
11
|
12
|
|
||||
|
Loose Tube Diameter
|
MM
|
2.1
|
2.05
|
2.05
|
2.1
|
2.1
|
||||
|
Cores of per tube
(no more than)
|
--
|
12
|
12
|
12
|
|
|
||||
|
Central Steel Wire/PE Sheath
(if required)
|
MM
|
1.8(4.2)
|
1.8(4.6)
|
2.0(5.5)
|
2.2(6.1)
|
|
||||
|
Cable Diameter(Nom.)
|
MM
|
14.7
|
15.3
|
16.0
|
16.7
|
|
||||
|
Weight(Approx.)
|
Kg/Km
|
208(193)
|
224(206)
|
246(228)
|
269(247)
|
|
||||
|
Aluminum tape
|
--
|
YES
|
|
|
||
|
Corrugated steel tape
|
--
|
YES
|
|
|
||
|
Central Strength Member
|
--
|
Steel Wire/FRP
|
|
|
||
|
Tension Strength (Long/Short Term)
|
N
|
1000/3000
|
|
|
||
|
Crush Resistance (Long/Short Term)
|
N
|
1000/3000
|
|
|
||
|
Bending Radius
|
Dynamic
|
≥20 times Cable Diameter
|
|
|
||
|
|
Static
|
≥10 times Cable Diameter
|
|
|
||
|
Storage/Operating Temperature
|
--
|
-40℃ to 60℃
|
|
|
||
|
Application
|
--
|
Long-distance Communications
|
|
|
||
Production Process
We manufacturing our products in China using high quality raw materials.
We are one of the cable manufactures to have a complete quality lab to test all the materials and each of our cable designs,
testing our products to exceed customers expectations for quality and performance.
We are one of the cable manufactures to have a complete quality lab to test all the materials and each of our cable designs,
testing our products to exceed customers expectations for quality and performance.
Product Application
