Quick Details
-
Weight:
-
According to your order, 10KG
-
Size:
-
According to your order
-
Power:
-
0
-
Weight (KG):
-
10 kg
-
Product name:
-
Water Treatment System Processing Reverse Osmosis Plant
-
Type:
-
Pure Water Treatment System
-
Capacity:
-
500L/H
-
Filter Media:
-
Sand+carbon+resin(all Included)
-
Color:
-
Blue
-
Certification:
-
ISO 9001
-
Packing:
-
Pvc Bag
-
MOQ:
-
1set
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SF
-
Material:
-
Wooden case, PVDF
-
Weight:
-
According to your order, 10KG
-
Size:
-
According to your order
-
Power:
-
0
-
Weight (KG):
-
10 kg
-
Product name:
-
Water Treatment System Processing Reverse Osmosis Plant
-
Type:
-
Pure Water Treatment System
-
Capacity:
-
500L/H
-
Filter Media:
-
Sand+carbon+resin(all Included)
-
Color:
-
Blue
-
Certification:
-
ISO 9001
-
Packing:
-
Pvc Bag
-
MOQ:
-
1set
Product Description
Model: If you need 24 hours of continuous water discharge, select double tanks and double valves for parallel operation, and the resin tank is made of glass fiber reinforced plastic

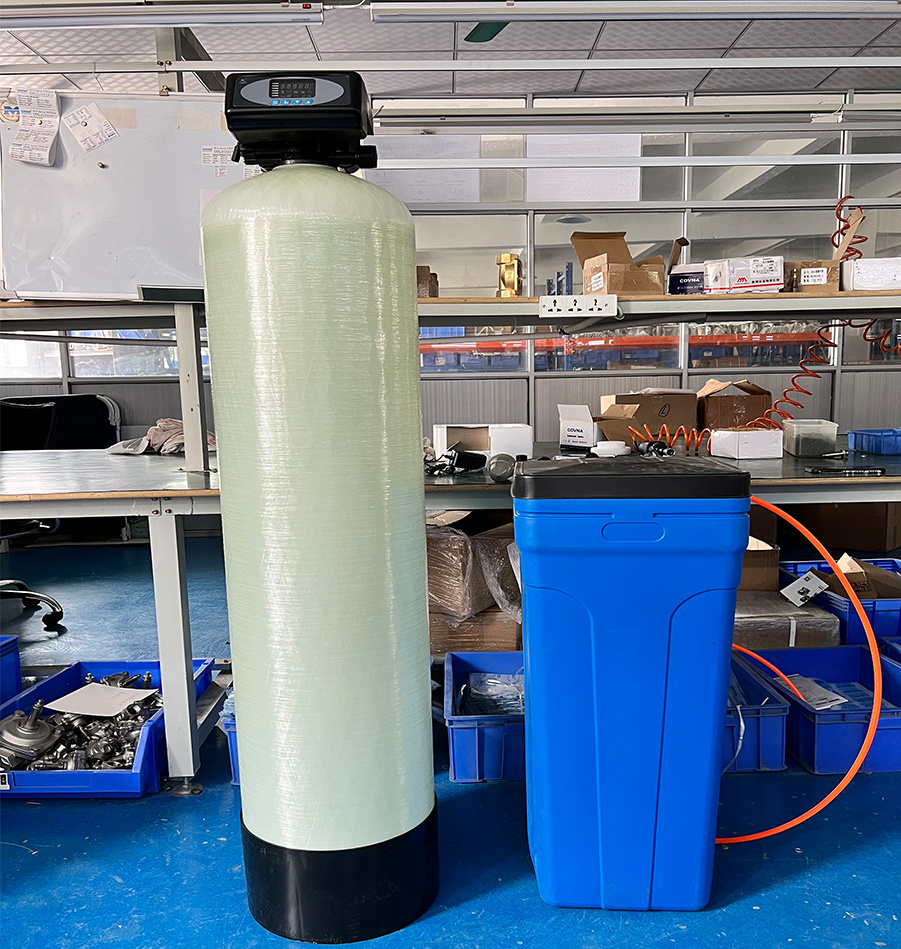

The automatic water softener equipment is composed of automatic softening valve, glass fiber reinforced plastic tank, salt tank and link pipeline, and its material can meet the national safety food grade requirements.
The glass fiber reinforced plastic tank contains ion exchange resin, which is the main body of softened water.
When the water source flows through the resin, through ion exchange, the calcium and magnesium ions in the water will replace the sodium ions in the resin to remove calcium from the water.
The purpose of magnesium ions.
The salt box is filled with softening salt, and its solution is used for resin regeneration, so that the resin has the adsorption capacity again, and the calcium and magnesium ions originally adsorbed in the resin are cleaned and discharged.
Details Images
Material of filter tank
Material:FRP/Stainless steel SUS304/SUS316
Specification
|
Model
|
Control Part
|
Tank Part
|
Brine Tank
|
Resins(L)
|
Pipe Part
|
|
500L
|
F65B1
|
844
|
25L
|
25
|
¾"
|
|
1000L
|
F65B1
|
1054
|
60L
|
50
|
¾"
|
|
2000L
|
F65B1
|
1252
|
60L
|
75
|
G1"
|
|
3000L
|
F63C1
|
1465
|
100L
|
100
|
G1"
|
|
4000L
|
F63C1
|
1665
|
200L
|
150
|
G1¼"
|
|
5000L
|
F74A1
|
2072
|
200L
|
200
|
G1¼"
|
|
8000L
|
F74A1
|
2472
|
300L
|
325
|
G1½"
|
|
10000L
|
F74A1
|
3072
|
500L
|
500
|
G1½"
|
|
12000L
|
F77A
|
3072
|
500L
|
500
|
G1½"
|
|
15000L
|
F77A
|
3672
|
800L
|
700
|
G2"
|
|
20000L
|
F78A1
|
4072
|
800L
|
800
|
G2"
|
Effect
After filtering hardness≤0.03mmol/L
Case
Our
advantage:
With high degree of automation and low salt consumption, it is the preferred equipment for boiler water softening, air conditioning cooling water, chemical water, hotels, laundry rooms, domestic water, textile industry, and softened water.
Natural raw water, underground well water, contains a lot of salts formed by calcium (Ca+) and magnesium (Mg+) ions.
If it is directly used as feed water, it is easy to form scale on the heating surface of the equipment, which will reduce the efficiency of the equipment, increase the loss, decrease the output, shorten the life of the equipment, and endanger the safety of the equipment and people in serious cases. Therefore, the equipment feed water must be softened.
Product packaging
WOODEN CASE PALLET OR CARTONS
We will use sturdy packaging to allow customers to receive complete goods
