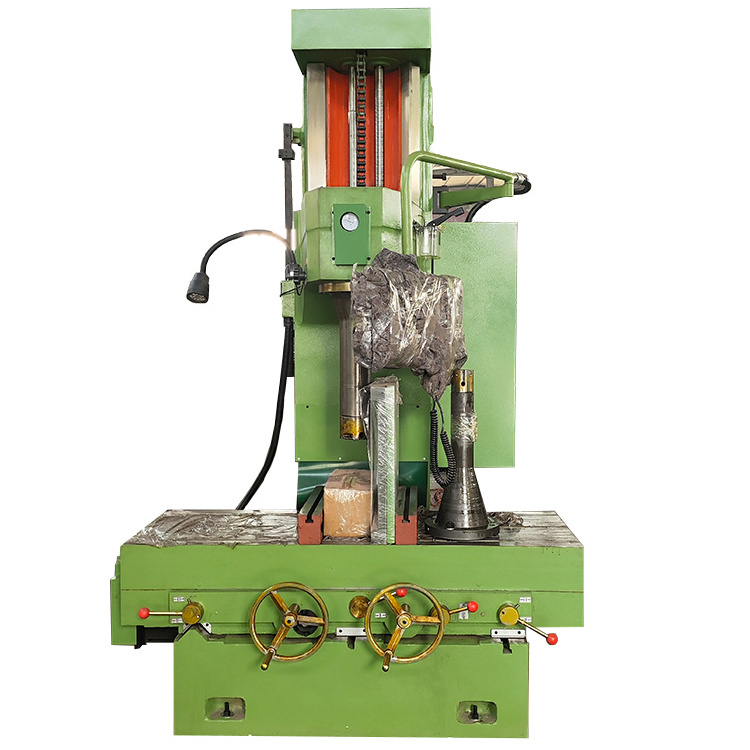

Vertical Boring Machine T7220B
The cylinder boring machine is used for boring cylinder holes of internal combustion engine,and inner holes of cylinder sleeve of cars or tractors,and also for other machine element hole.It has high cost performance.
- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Z) (mm):
-
100 mm
-
Max. Table Load(kg):
-
100
-
Travel (W-axis) (mm):
-
900 mm
-
Range of Spindle Speed(r.p.m):
-
350 r.p.m
-
Production Capacity:
-
50set/month
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AUSTING
-
Voltage:
-
220V/380v
-
Dimension(L*W*H):
-
2250*11600*2300
-
Weight (T):
-
11 T
-
Product name:
-
Boring Machine
-
Application:
-
Construction Machine Repairing
-
Max.Boring diameter:
-
200mm
-
Max boring depth:
-
500mm
-
Roundness:
-
0.005
-
Surface roughness:
-
Ra0.8-1.6
-
COLOR:
-
Custmized
-
Motor Power (kw):
-
2.2
-
After-sales Service:
-
Video Technical Suppot
-
Boring work stroke:
-
270mm
Quick Details
-
Table Size (mm):
-
Other
-
Table Travel (X) (mm):
-
200 mm
-
Table Travel (Y) (mm):
-
500 mm
-
Table Travel (Z) (mm):
-
100 mm
-
Max. Table Load(kg):
-
100
-
Travel (W-axis) (mm):
-
900 mm
-
Range of Spindle Speed(r.p.m):
-
350 r.p.m
-
Production Capacity:
-
50set/month
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AUSTING
-
Voltage:
-
220V/380v
-
Dimension(L*W*H):
-
2250*11600*2300
-
Weight (T):
-
11 T
-
Product name:
-
Boring Machine
-
Application:
-
Construction Machine Repairing
-
Max.Boring diameter:
-
200mm
-
Max boring depth:
-
500mm
-
Roundness:
-
0.005
-
Surface roughness:
-
Ra0.8-1.6
-
COLOR:
-
Custmized
-
Motor Power (kw):
-
2.2
-
After-sales Service:
-
Video Technical Suppot
-
Boring work stroke:
-
270mm
Products Description
Boring machine
|
One year warranty & lifetime service
|
Standard testing & economical & applicable
|
Full power and full power
|
low noise
|
T7220B Vertical boring machine main features
Mainly used to bore high accurate holes of cylinder body and engine sleeve and other accurate holes.
1. The table longitudinal and latitudinal moving device;
2. Boring measuring device;
3. Also provides optional digital readout for the table's longiland latimoving accessories to servo the users.
1. The table longitudinal and latitudinal moving device;
2. Boring measuring device;
3. Also provides optional digital readout for the table's longiland latimoving accessories to servo the users.
Specification
|
Model
|
T7220B
|
|
Max. boring Diameter
|
200mm
|
|
Max. Boring Depth
|
500mm
|
|
Spindle Speed Range
|
53-840rev/min
|
|
Spindle Feed Range
|
0.05-0.20mm/rev
|
|
Distance from Spindle Axis to Carriage Vertical plane
|
315mm
|
|
Table Longitudinal Travel
|
900mm
|
|
Table cross travel
|
100mm
|
|
Machining accuracy
|
Dimension Accuracy 1T7
|
|
Roundness
|
0.005
|
|
Cylindricity
|
0.02/300
|
|
Surface roughness
|
Ra0.8-1.6
|
|
Overall Dimension (L×W×H)
|
2250x1588x2335mm
|
|
N.W/G.W kg
|
3300/3800kg
|
