Quick Details
-
Power:
-
2.2Kw
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
2430x2200x2433 mm
-
Type:
-
Dehydrator
-
Dry Trays:
-
96 pcs
-
Trolleys:
-
4 pcs
-
Capacity per batch:
-
240 kg
-
Steam:
-
40 Kg/h
-
Wind volume:
-
5200 m3/h
-
Temperature difference:
-
±2
-
Usage:
-
yam dryer machine
-
Keywords:
-
sea cucumber dryer machine
-
Function:
-
food dryer machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ocean Machinery
-
Voltage:
-
220V/380V
-
Power:
-
2.2Kw
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
2430x2200x2433 mm
-
Type:
-
Dehydrator
-
Dry Trays:
-
96 pcs
-
Trolleys:
-
4 pcs
-
Capacity per batch:
-
240 kg
-
Steam:
-
40 Kg/h
-
Wind volume:
-
5200 m3/h
-
Temperature difference:
-
±2
-
Usage:
-
yam dryer machine
-
Keywords:
-
sea cucumber dryer machine
-
Function:
-
food dryer machine
Food Processing Sea Cucumber Yam Dryer Machine
Our Food Processing Sea Cucumber Yam Dryer Machine is equipped with noise-canceling & heat- stable axial flow fan and automatic temperature control system, its enclosed circulatory system design increases the drying oven thermal efficiency from traditional 3-7% to 35-45% at present, and the highest heat efficiency can be up to 70%.
It is widely used in food, chemical, for drying materials such as vegetables, fruits
like apples, pineapple, pawpaw, coconut, mango, banana, spice, sea cucumber, seaweeds, beef j erky, fish, herbs, onions, gingers, chili, pepper, cabbage, carrot, tea leaves , etc.
Technical Parameters:
|
Model No. |
Capacity (Kg) |
Power (Kw) |
Steam (Kg/h) |
Heat Dissipating Area (m2) |
Wind Volume (m3/h) |
Tem. Difference |
Trays (pc) |
Dimension (mm) |
Trolleys (pc) |
Weight (Kg) |
| OC-1 | 120 | 1.1 | 20 | 20 | 2800 | ±2 C | 48 | 2430x1200x2375 | 2 | 1200 |
| OC-2 | 240 | 2.2 | 40 | 40 | 5200 | 96 | 2430x2200x2433 | 4 | 1500 | |
| OC-3 | 360 | 3 | 60 | 80 | 8000 | 144 | 3430x2200x2620 | 6 | 2000 | |
| OC-4 | 480 | 4 | 80 | 100 | 9800 | 192 | 4460x2200x2620 | 8 | 2300 | |
| OC-C-IR | High efficiency and high temperature infrared sterilization oven, parameters vary according to temperature | 1200x1000x1600 | 1 | 1200 | ||||||

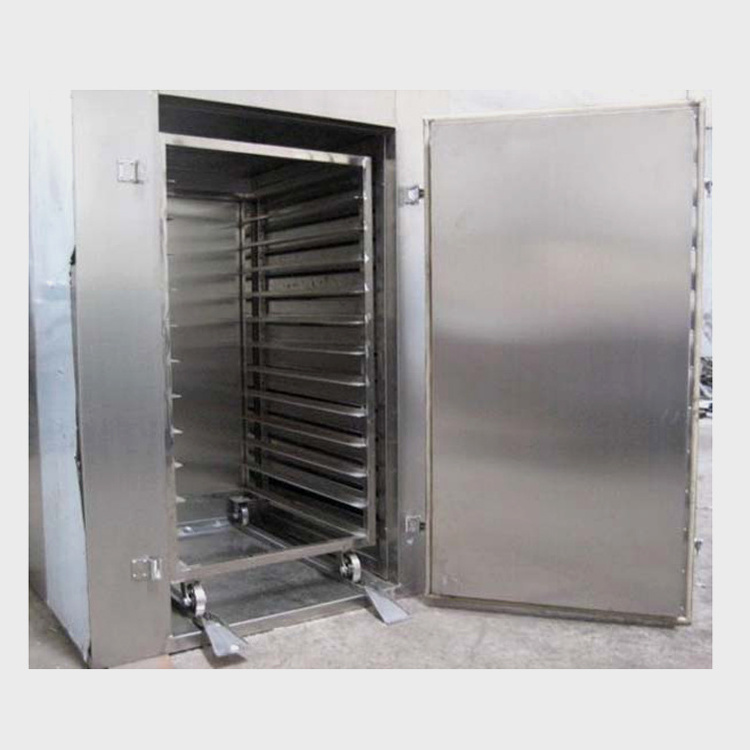

Product Photo:
Detailed Photos:
Application Photos:
