Quick Details
-
Voltage:
-
380
-
Weight (KG):
-
800
-
Power (kW):
-
11KW
-
Machine name:
-
Spring Coiler Coiling Machine cnc coil winding machine
-
SIZE:
-
1300X800X1800
-
WEIGHT:
-
800KG
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
MYT
-
Marketing Type:
-
Hot Product 2022
-
Voltage:
-
380
-
Weight (KG):
-
800
-
Power (kW):
-
11KW
-
Machine name:
-
Spring Coiler Coiling Machine cnc coil winding machine
-
SIZE:
-
1300X800X1800
-
WEIGHT:
-
800KG
-
Certification:
-
ce
Product Overview

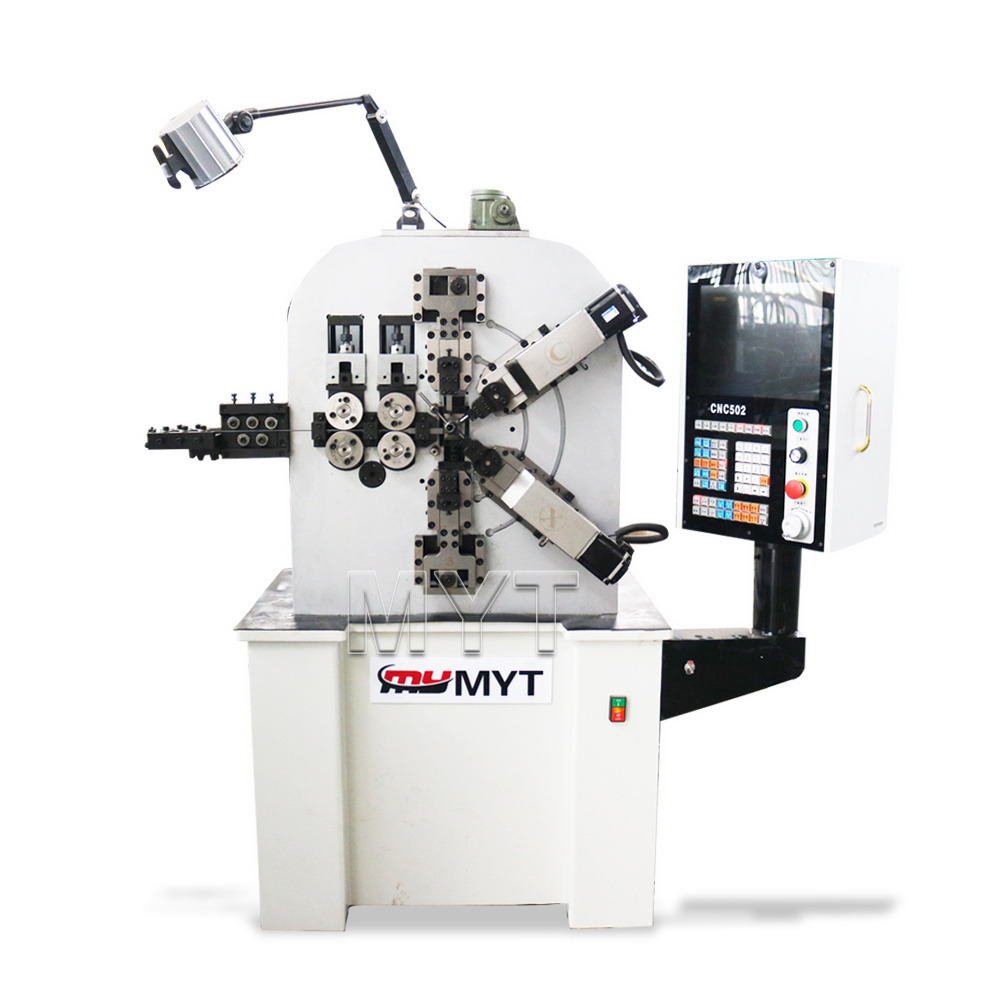

AUTOMATIC CNC spring coiling machine
* 2. The compression spring machine upper and lower is driven by three motors independently for controlling the space and cutting tool. The three axes can be exchanged.
* 3. The spring machine pitch can be adjusted by two methods easily: cam inclined knife type and shaft pushing type.
* 4. The outside diameter is driven by two motor independently. The outside diameter can be adjusted by the preset program easily.
* 5. This spring machine can manufacture the compression springs of any shape without adjusting the mechanical parts and absolutely avoid changing the cam plate.
* 6. English interface, easy operation, accurate positioning, according to the fluorescent screen work, can amend diameter angle of springs anytime.
* 7. Wireless, wire breakage and winding automatically stops design and wire frame automatic acceleration function, make
production more easily and effectively. With precision detecting and tracking device, substandard products can automatically stop. Mechanical parts automatic supply lubricating oil design, ensure equipment long time running.
Details Product details
Side of CNC springc coiling machine
Back side of CNC spring coilling machine
Feeding wheel
Twist cut
CNC control system
Japan Sanyo servo system
Lubrication system
Electric decoiler
Different models of spring machine
Camless Spring machine
Machine specifications
|
Model:
|
CNC8620
|
|
Axles Number
|
6 axles
|
|
Wire Diameter
|
φ0.5-2.0mm
|
|
Maximum Outside Diameter:
|
φ60mm
|
|
Maximum Production Speed:
|
150pcs/min
|
|
Wire Feed Instruction Value:
|
±0.01~±9999.99
|
|
Other Instruction Value
|
±0.1°~±359.9°
|
|
Wire Feeding Servo Motor
|
1KW
|
|
Outside Diameter Servo Motor (1)
|
0.75KW
|
|
Outside Diameter Servo Motor (2)
|
0.75KW
|
|
Cutter Servo Motor (1)
|
1.0KW
|
|
Cutter Servo Motor (2)
|
1.0KW
|
|
Pitch Axis Servo Motor
|
0.75KW
|
|
Power Supply
|
3-Phase 380V
|
|
Machine Weight
Machine Size |
780KG
800*1400*700mm |
