Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DADI CNC
-
Weight (KG):
-
10 KG
-
Marking Area:
-
60mm*60mm
-
Product name:
-
Laser Marking Machines
-
Laser Power:
-
20W/30W/50W
-
Laser source:
-
Raycus MAX
-
Cooling system:
-
Air Cooling System
-
Laser wavelength:
-
1064um
-
After-sales Service Provided:
-
1 Year
-
Working area:
-
50*50mm/100*100mm
Quick Details
-
Working Accuracy:
-
other
-
Graphic Format Supported:
-
PLT, DXF, BMP, Other
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DADI CNC
-
Weight (KG):
-
10 KG
-
Marking Area:
-
60mm*60mm
-
Product name:
-
Laser Marking Machines
-
Laser Power:
-
20W/30W/50W
-
Laser source:
-
Raycus MAX
-
Cooling system:
-
Air Cooling System
-
Laser wavelength:
-
1064um
-
After-sales Service Provided:
-
1 Year
-
Working area:
-
50*50mm/100*100mm
Product Description

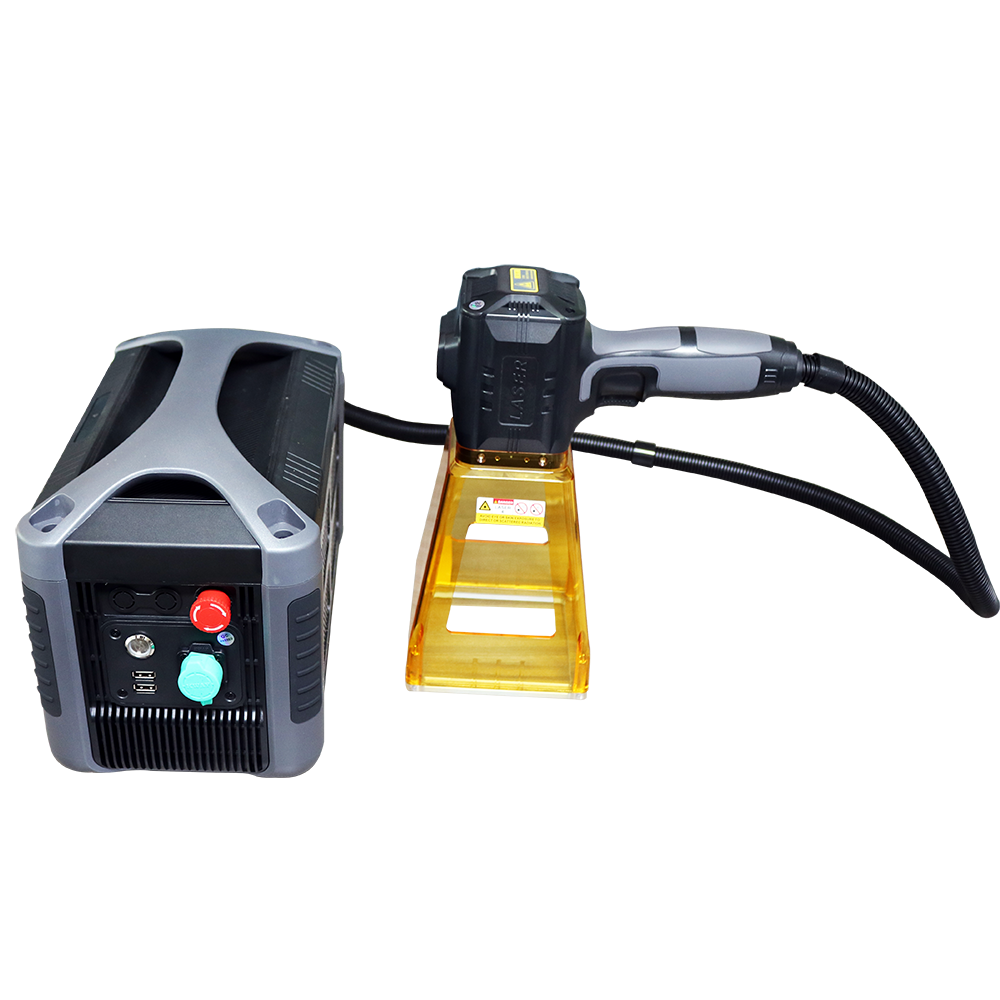

Handheld laser marking machine, designed to solve various marking difficulties. Advanced laser technology is used to achieve fast focus adjustment and high-precision marking. With a highly integrated design, the fuselage is small and lightweight, and the detachable design of the battery can last unlimited and improve work efficiency.
Machine Feature
Infrared positioning, accurate marking
Advanced laser technology is used to achieve fast
focus and high-precision marking.
Lightweight design for flexible use
The whole machine is light and portable,
and the component design is flexible;
Compatible with multi-brand hardware;
Flexibly adapt to a variety of scenarios
One-touch touchscreen, simple operation
8-inch large screen, one-key touch, simple and
smooth operation, easy to use.
Advanced laser technology is used to achieve fast
focus and high-precision marking.
Lightweight design for flexible use
The whole machine is light and portable,
and the component design is flexible;
Compatible with multi-brand hardware;
Flexibly adapt to a variety of scenarios
One-touch touchscreen, simple operation
8-inch large screen, one-key touch, simple and
smooth operation, easy to use.
Product Parameters
|
Name
|
Portable FIber laser marking machine
|
|
Power
|
20W / 30W / 50W
|
|
Marking range
|
70*70mm / 100*100mm(Optional)
|
|
Laser wavelength
|
1064nm
|
|
Focus the lens
|
130mm
|
|
Marking speed
|
≤ 7000mm/s
|
|
Line width
|
0.03mm
|
|
Repeatable positioning accuracy
|
0.01mm
|
|
File format
|
BMP/DXF/HPGL/JPEG/PLT
|
|
Power supply
|
110V / 220VAC 、Lithium（216wh）
|
|
Total weight
|
6~6.8kg
|
The samples show
Laser marking machines can be applied in a wide range of fields, including but not limited to the following application scenarios:
1. Manufacturing: Laser marking machines can be applied in various manufacturing fields, such as automobiles, aviation, aerospace, electronics, health, etc.
2. Packaging industry: Laser marking machines can be applied in the packaging industry to print enterprise logos, product models, production dates, etc. on packaging materials such as plastic, glass, and metal.
3. Food and beverage industry: Laser marking machines can be applied to containers for packaging food and beverages, such as beverage bottles, fresh-keeping boxes, plastic bags, etc.
4. Jewelry and Watch Industry: Laser marking machines can be applied to precision crafts such as jewelry and watches, printing product labels, logos, etc.
5. Medical device industry: Laser marking machines can be applied to medical devices and drug packaging, printing product labels, instructions for use, production dates, etc.
