Quick Details
-
Dimension(L*W*H):
-
4200*1150*2100MM
-
Weight:
-
3000 KG, 3000kg
-
Key Selling Points:
-
Competitive price
-
Core Components:
-
machine
-
Motor Power:
-
22 KW
-
High Pressure Gear Pump Flow:
-
63ML/R
-
Pressure:
-
25 MPA
-
Oil Cylinder Inner Diameter:
-
150MM
-
Piston Rod Diameter:
-
90 MM
-
Stroke:
-
1500MM
-
Forward Speed:
-
80 MM/Second
-
Backward Speed:
-
120 MM/Second
-
Max Thrust 16MPA:
-
50 Ton
Quick Details
-
Use:
-
Split Wood
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Sawmill-World
-
Dimension(L*W*H):
-
4200*1150*2100MM
-
Weight:
-
3000 KG, 3000kg
-
Key Selling Points:
-
Competitive price
-
Core Components:
-
machine
-
Motor Power:
-
22 KW
-
High Pressure Gear Pump Flow:
-
63ML/R
-
Pressure:
-
25 MPA
-
Oil Cylinder Inner Diameter:
-
150MM
-
Piston Rod Diameter:
-
90 MM
-
Stroke:
-
1500MM
-
Forward Speed:
-
80 MM/Second
-
Backward Speed:
-
120 MM/Second
-
Max Thrust 16MPA:
-
50 Ton
Product Description
7 Tons Electric Wood Splitter

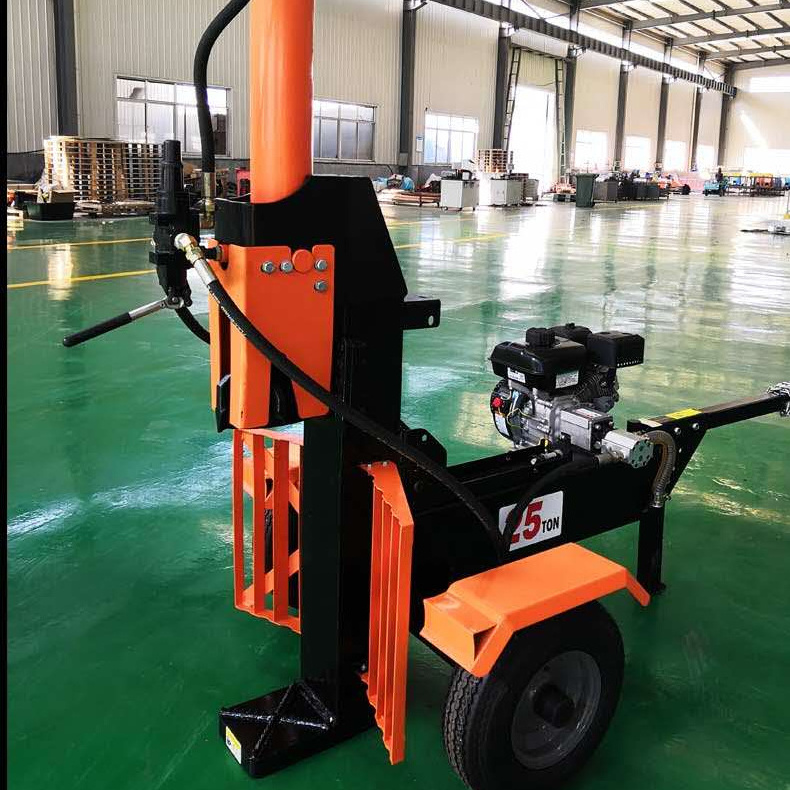

25 Tons Wood/Log Splitter with Gasoline Engine
It can be horizontal and vertical model
Horizontal Wood Splitter
|
Motor Power
|
22 KW
|
|
High Pressure Gear Pump Flow
|
63ML/R
|
|
Pressure
|
25 MPA
|
|
Oil Cylinder Inner Diameter
|
150MM
|
|
Piston Rod Diameter
|
90 MM
|
|
Stroke
|
1500MM
|
|
Forward Speed
|
80 MM/Second
|
|
Backward Speed
|
120 MM/Second
|
|
Max Thrust 16MPA
|
50 Ton
|
|
Weight
|
3 Tons
|
|
Length*Width*Height
|
5500*1000*1500MM
|
Double Cylinder Wood Splitter
|
Motor Power
|
22 KW
|
|
Max Process Wood Diameter * Length
|
1500*3600MM
|
|
Production Capacity
|
10 Tons/Hour
|
|
High Pressure Gear Pump Flow
|
80ML/R
|
|
Pressure
|
20-35MPA
|
|
Oil Cylinder Diameter
|
125MM
|
|
Weight
|
4.5 Tons
|
|
Length*Width*Height
|
4200*1150*2100MM
|
Detailed Images
Related Products
Wood Drum Chipper
|
Model
|
SH216
|
SH218
|
SH2112
|
SH2113
|
|
Blade Roll Diameter（mm）
|
650
|
800
|
1000
|
1300
|
|
Blade Roll Length（mm)
|
600
|
800
|
780
|
780
|
|
Blade Quantity（Pcs）
|
2
|
2
|
3
|
6
|
|
Feeding Inlet（mm）
|
300*600
|
400*700
|
520*700
|
1600*1000
|
|
Blade Roll Speed （R/Min）
|
650
|
650
|
500
|
500
|
|
Feeding Speed(M/Min）
|
33
|
35
|
38
|
38
|
|
Max Processing Wood Diameter（mm)
|
240
|
380
|
500
|
500
|
|
Wood Chip Length（mm)
|
20-30
|
20-30
|
20-50
|
20-50
|
|
Production Capacity（T/H)
|
5-10
|
10-15
|
25
|
30-50
|
|
Main Motor Power（kw)
|
55
|
110
|
160
|
300
|
|
Feeding Roll Motor Power（kw）
|
3*1 , 4*1
|
3*1 , 4*1
|
7.5*1,5.5*1
|
7.5*2
|
|
Weight（t)
|
4.5
|
7
|
13
|
14
|
|
Overall Dimension（mm）
|
2600*2100*1430
|
2670*2150*1500
|
4400*3700*2050
|
4485*3744*2200
|
|
Feeding Motor Power
|
2.2KW
|
2.2KW
|
3KW
|
3KW
|
|
Oil Pump Motor Power（kw）
|
1.5
|
1.5
|
1.5
|
3
|
|
Feeding Conveyor Length
|
6 Meters
|
6 Meters
|
8 Meters
|
8 Meters
|
|
Outlet Conveyor Length
|
10 Meters
|
10 Meters
|
12 Meters
|
12 Meters
|
