Quick Details
-
Warranty:
-
1 YEARS
-
Brand Name:
-
Neutral/OEM
-
Model Number:
-
Epoxy solar panel-D75
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
Diameter 75mm
-
Brand:
-
Miolentek/OEM
-
Power:
-
0.3W
-
Lamination Material:
-
EPOXY solar panel
-
Voltage supported:
-
2V
-
Solar cell:
-
Poly solar panels
-
Size:
-
Diameter 75mm
-
Solar panel shape:
-
round 2V solar panel
-
Certificate:
-
CE
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
PERC
-
Panel Efficiency:
-
0.3W
-
Warranty:
-
1 YEARS
-
Brand Name:
-
Neutral/OEM
-
Model Number:
-
Epoxy solar panel-D75
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
Diameter 75mm
-
Brand:
-
Miolentek/OEM
-
Power:
-
0.3W
-
Lamination Material:
-
EPOXY solar panel
-
Voltage supported:
-
2V
-
Solar cell:
-
Poly solar panels
-
Size:
-
Diameter 75mm
-
Solar panel shape:
-
round 2V solar panel
-
Certificate:
-
CE

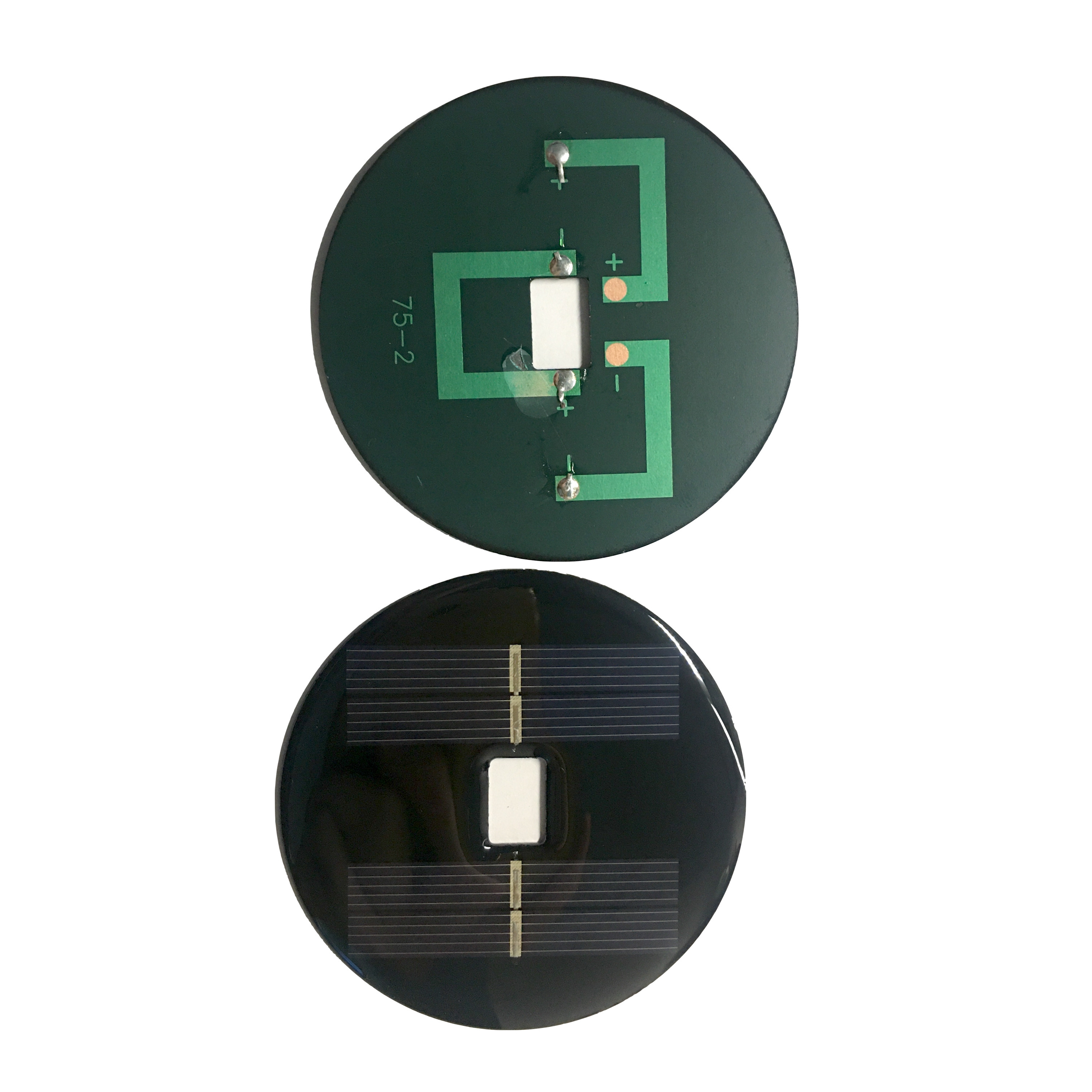

Miolentek 75mm diameter 2V round solar panel Customized 0.18w 0.2w 1w Small Solar Panels Epoxy Mini Solar Panel for LED lighth Efficiency Cheap 1w 6v Pet Laminated Square Solar Panel
|
MATERIALS Epoxy is a type of liquid resin known for its good adhesive properties and resistance to water degration. That is why they are used for laminating solar cells and is also used in boat building too. They are usually identified by their amber or slight brown colour. They also have high electrical insulation and good chemical resistance. However, in the long run, they can age prematurely under the Sun, turning yellowish and become more brittle.
|
|
|
PROCESS When the solar cell is ready for encapsulation, it is placed on the backing material and the liquid epoxy resin is poured over the cells and the connecting ribbons. These layers will be laminated together at a temperature of 50 to 60 degrees Celcius and will form a harden layer when it cools. |
|
HIGHLIGHTS:
- Impact resistance
- Economical
- High Strength with FiberGlass material FR-4
- High electrical insulation
- Attractive customizeable appearance
| Material: | Polycrystalline sillicon, FR-4 PCB, epoxy resin | |
| Peak power: | 0.3W | |
| Max voltage: | 2.0V | |
| Max current: | 159mA | |
| Open voltage: | 6.8V | |
| Short current: | 176mA | |
| Weight: | 19G | |
| Operating temperature | -40°C to +85°C | |
| Maximum system voltage | 1000VDC | |
| NOCT | 48°C+/-2°C | |
| Current temperature coefficient | %/K | 0.06+/-0.01 |
| Voltage temperature coefficient | mV/K | -(78+/-10) |
| Power temperature coefficient | %/K | -(0.5+/-0.05) |
|
|
|
