Quick Details
-
Range of Spindle Speed(r.p.m):
-
1 - 8000
-
Positioning Accuracy (mm):
-
0.01
-
Repeatability (X/Y/Z) (mm):
-
0.005
-
Place of Origin:
-
China
-
Brand Name:
-
yangtuo
-
Model Number:
-
VMC1160
-
Year:
-
2023
-
Voltage:
-
220/380/420
-
Dimension(L*W*H):
-
3200X2300X2550
-
Weight (KG):
-
6500
-
Spindle Motor Power(kW):
-
11
-
Max. Table Load(kg):
-
850 kg
-
Product name:
-

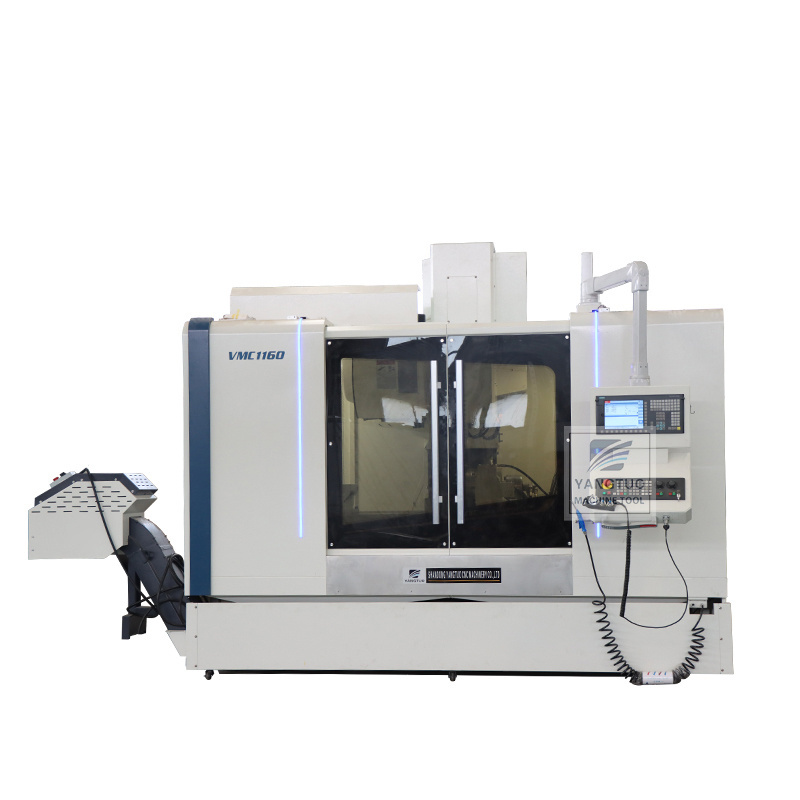

VMC1160 cnc milling machine
-
Machine Type:
-
cnc milling machine 3 axis
-
Color:
-
Customized Option
Quick Details
-
Table Travel (X) (mm):
-
1100
-
Table Travel (Y) (mm):
-
600
-
Table Travel (Z) (mm):
-
600
-
Range of Spindle Speed(r.p.m):
-
1 - 8000
-
Positioning Accuracy (mm):
-
0.01
-
Repeatability (X/Y/Z) (mm):
-
0.005
-
Place of Origin:
-
China
-
Brand Name:
-
yangtuo
-
Model Number:
-
VMC1160
-
Year:
-
2023
-
Voltage:
-
220/380/420
-
Dimension(L*W*H):
-
3200X2300X2550
-
Weight (KG):
-
6500
-
Spindle Motor Power(kW):
-
11
-
Max. Table Load(kg):
-
850 kg
-
Product name:
-
VMC1160 cnc milling machine
-
Machine Type:
-
cnc milling machine 3 axis
-
Color:
-
Customized Option
Product Description
China hot sell hobby small fresadora cnc VMC850 VMC1160 3 axis CNC bed type CNC milling machine
The machine feature and specification .
1. adopt high quality resin sand wear-resistant castings, strong and tough bones, super large column, wide and low seat, honeycomb
structure. After two annealing treatment and vibration aging, remove stress to ensure long-term deformation.
2. adopt the first 3D variable diameter design treatment in China to ensure the stability and reliability of the body.
3.X,Y,Z shaft is hard rail quenching treatment to increase the reliable performance of machine tools.
4. three-axis drive adopts high precision, high rigidity ball wire rod pair, high precision special bearing, which ensures the
positioning accuracy and repeated positioning accuracy.
5. adopts the protective cover of the guide rail of the sealed machine tool, which effectively protects the guide rail and the
lead screw, and prolongs its service life.
1. adopt high quality resin sand wear-resistant castings, strong and tough bones, super large column, wide and low seat, honeycomb
structure. After two annealing treatment and vibration aging, remove stress to ensure long-term deformation.
2. adopt the first 3D variable diameter design treatment in China to ensure the stability and reliability of the body.
3.X,Y,Z shaft is hard rail quenching treatment to increase the reliable performance of machine tools.
4. three-axis drive adopts high precision, high rigidity ball wire rod pair, high precision special bearing, which ensures the
positioning accuracy and repeated positioning accuracy.
5. adopts the protective cover of the guide rail of the sealed machine tool, which effectively protects the guide rail and the
lead screw, and prolongs its service life.
|
Specifications
|
Units
|
VMC1160
|
|
Table size
|
mm
|
1200x600
|
|
X axis travel
|
mm
|
1100
|
|
Y axis travel
|
mm
|
600
|
|
Z axis travel
|
mm
|
600
|
|
Max. worktable load
|
kg
|
800
|
|
T slot(number-width-pitch)
|
|
5-18x150
|
|
Max. spindle speed
|
rpm
|
8000(Optional:10000 )
|
|
Spindle taper
|
mm
|
BT40/150
|
|
Main motor power
|
kw
|
11
|
|
X/Y/Z rapid traverse speed
|
m/min
|
32/32/24
|
|
Cutting feed speed
|
mm/min
|
1-8000
|
|
Guide rail type
|
|
Linear rail RGH45
|
|
Distance from spindle axis to column surface
|
mm
|
650
|
|
Distance between spindle nose and worktable surface
|
mm
|
150-750
|
|
Positioning accuracy
|
mm
|
±0.01
|
|
Repeat positioning accuracy
|
mm
|
±0.005
|
|
Tool magazine
|
|
Arm 24
|
|
|
|
|
|
Max.tool weight
|
kg
|
15
|
|
Machine weight
|
kg
|
7000
|
|
Overall dimension
|
mm
|
3260*2300*2600mm
|
Product Description:
1 .Taiwan HIWIN high precison guideway
2 .Taiwan-made spindle Unit,8000-12000rpm available
3 Taiwan OKADA 24 ATC
4.Reliable Control System:Fanuc,Siemens,Mitsubishi ,GSKVmc850 vertical machining center is suitable for producing metal product
and parts in all shapes. It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
1 .Taiwan HIWIN high precison guideway
2 .Taiwan-made spindle Unit,8000-12000rpm available
3 Taiwan OKADA 24 ATC
4.Reliable Control System:Fanuc,Siemens,Mitsubishi ,GSKVmc850 vertical machining center is suitable for producing metal product
and parts in all shapes. It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection
mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
