Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LOMAN
-
Product name:
-
Plate freezer
-
Freezer Type:
-
Air Cooling/Water cooling
-
Refrigerant:
-
R717 R404A R22
-
Frozen products:
-
Meat Fish seafood
-
Application:
-
Food Quick Frozen Machine
-
Function:
-
Individual Quick Freezing
-
Material:
-
Stainless Steel 304
-
Capacity:
-
600-1300kg/h
Quick Details
-
Voltage:
-
380-440V/3P/50-60Hz
-
Power:
-
29000-62000W
-
Cooling Capacity:
-
420kg-2288kg/batch
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
LOMAN
-
Product name:
-
Plate freezer
-
Freezer Type:
-
Air Cooling/Water cooling
-
Refrigerant:
-
R717 R404A R22
-
Frozen products:
-
Meat Fish seafood
-
Application:
-
Food Quick Frozen Machine
-
Function:
-
Individual Quick Freezing
-
Material:
-
Stainless Steel 304
-
Capacity:
-
600-1300kg/h
Product Description

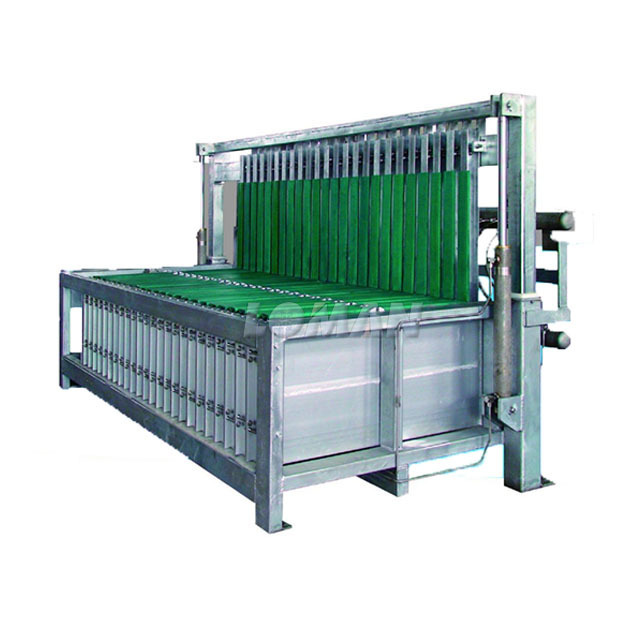

Vertical plate freezer is used for fast freezing seafood,meat solid,high liquid content or water based solids,fruit juices and fruit pulps in bulk on land or on vessel.
Products are simply placed or poured into vertical pockets between aluminum freezing plates.
After freezing,the blocks can be unloaded by defrosting and lifting the products,within minutes the cycle can begin again.
1.Lifting cylinder 2. Clamping cylinder 3. Supporter 4. Switch
5. Integral valve 6. Plate tractor 7. Evaporating aluminum plate 8. Product holder
9. Liquid supply pipe 10. Suction pipe 11. Metal hose 12. Clapboard
Specification
|
Freezing capacity
(kg/batch)
|
Size of plate
(mm)
|
Tier pitch
(mm)
|
Refrigerant
|
Total motor power
(kw)
|
Overall Dimention
(mm)
|
|
600
|
1060x530
|
75
|
R717/R22/R404a
|
29
|
2500x1500x1200
|
|
800
|
|
75
|
|
38
|
3000x1500x1200
|
|
1000
|
|
75
|
|
47
|
3500x1500x1200
|
|
1280
|
|
75
|
|
61
|
4300x1500x1200
|
|
600
|
|
100
|
|
29
|
2500x1500x1200
|
|
800
|
|
100
|
|
38
|
3000x1500x1200
|
|
1000
|
|
100
|
|
47
|
3500x1500x1200
|
|
1300
|
|
100
|
|
62
|
4300x1500x1200
|
|
In-take Temp:
|
+15°C
|
|
Out-take Temp:
|
-18°C
|
|
Freezing time:
|
90-210min
|
|
Condensing temp:
|
+35°C
|
|
Evap. Temp:
|
-35°C
|
Product details
Main feature
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Aluminum alloy extrusion plates,Hugeian and long lasting.
Stainless steel cylinder and hoses.Long lasting.
High strength galvanized frame.
Easy for cleaning and meet hygiene requirements
