Sidewall Conveyor Rubber Conveyor Belt

FOB Reference Price: Get Latest Price

≥17 Meters

US $25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: sidewall rubber conveyor belt

Standard:: DIN22102

Width:: 400-1400mm

Model type:: EP100-500

Edge:: molded edge and cut edge

Fabric:: CC, EP, NN

tensile strength:: 8-25mpa

Grade:: MOR. FOR , LOR

MOQ:: 100meter

Service:: Full-process Service

PAYMENT:: 30%T/T

Quick Details

Processing Service:: Moulding

Place of Origin:: Shandong, China

Brand Name:: Bothwin

Model Number:: sidewall rubber conveyor belt

Standard:: DIN22102

Width:: 400-1400mm

Model type:: EP100-500

Edge:: molded edge and cut edge

Fabric:: CC, EP, NN

tensile strength:: 8-25mpa

Grade:: MOR. FOR , LOR

MOQ:: 100meter

Service:: Full-process Service

PAYMENT:: 30%T/T

Product Description

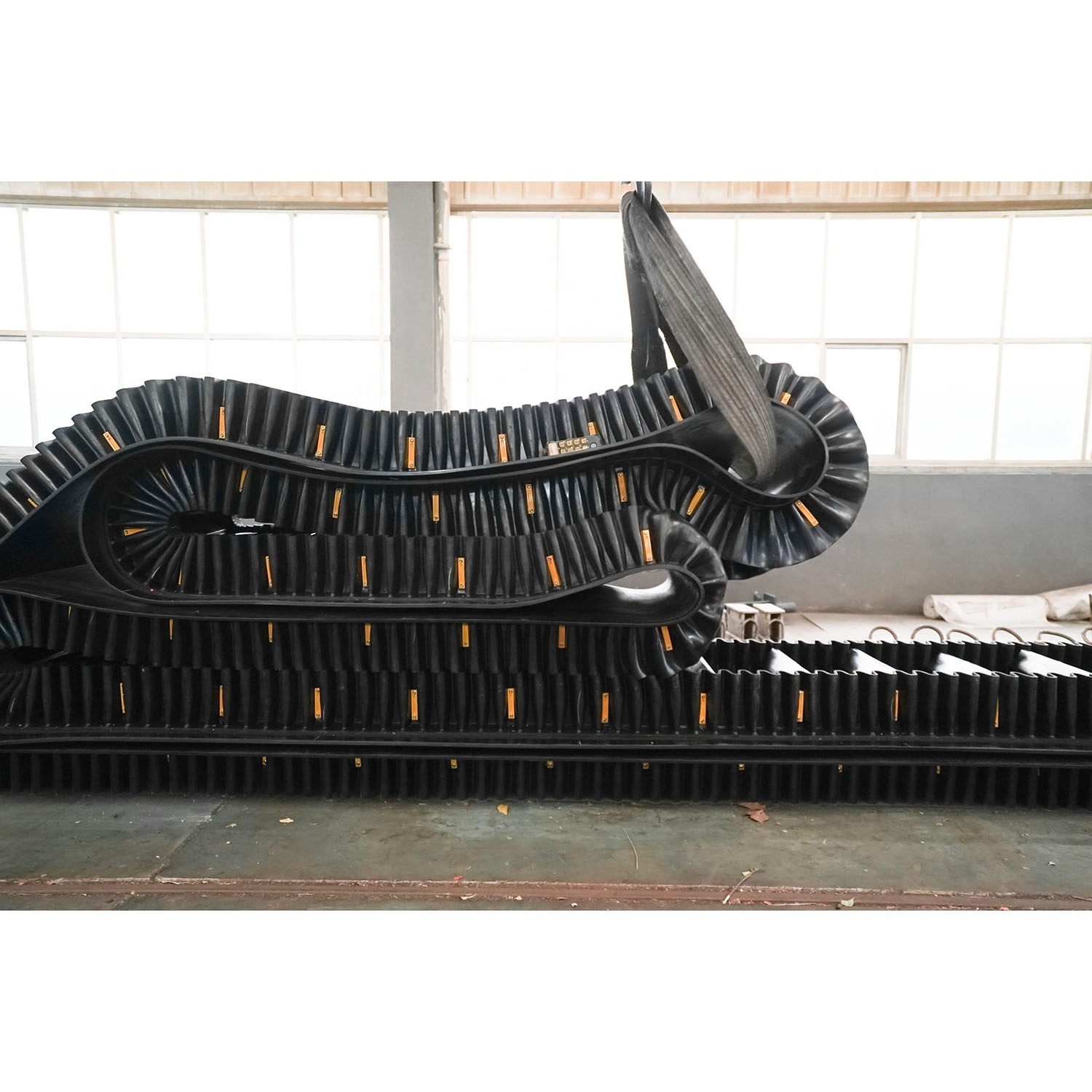

Sidewall Rubber Conveyor Belt

Sidewall conveyor belt Always works together with the corrugated transport system, normally the angle is more than 30 degree, it also could work together with the common use belt conveyor for the horizontal and short distance transportation (No clapboard generally).

Corrugated Sidewall Conveyor Belt Structure:

1. Base Belt

2. Sidewall

3.Cleat

Features:

1:increase the transmission Angle (30 ~ 90 degrees)

2: cover an area of an area small, less investment

3:large throughput, hoisting height is higher

4:from horizontal to sloping (or vertical) can smooth transition

5:suitable for conveying easily scattered powder, granular, small block, paste and liquid materials

6:low energy consumption, simple structure, adhesive tape, high strength, long service life.

Details Images

Specification

Corrugated Sidewall Conveyor Belt Structure:

1. Base Belt

2. Sidewall

3.Cleat

Base Belt :

Carcass: EP, NN, ST
Base belt width : 400- 1400 mm

Thickness : 3+1.5mm, 3+2mm, 4+2mm, 4+1.5mm, 4+3mm, 5+1.5mm, 5+2mm, 6+2mm, 8+2mm ,3/16"+1/16", 1/4"+1/16"

PLY : 1 -6 ply

Tensile strength : 10 - 20 mpa

Abrasion loss : 90 - 300 mm3

Sidewall Conveyor Belt Sidewall:

Height: 40-400(mm)

Width: 35-110(mm)

S80,S100, S120, S160, S200, S240, S300, S400
Type :light,medium,heavy,extra heavy

Corrugated Sidewall Conveyor Belt Cleat

TC75, TC90, TC110, TC140, TC180, TC220, TC280, TC380

Type:T,TC

Hight:35-360mm
Width: 55-230mm

Quality inspection

1) Provide a sample before mass production.

2) Tracing the different steps of production from the beginning.

3) Each product will be checked before delivery.

4) Try our best to help clients when problem occurred.

Thickness test

width test

abrasion loss test

Recommend Products

All kind of rubber conveyor belt
1. Cotton conveyor belt
2. Polyester conveyor belt
3. Nylon conveyor belt
4. Heat resistant conveyor belt
5. Burning Heat resistant conveyor belt
6.Acid and alkali conveyor belt
7. Oil resistant conveyor belt
8.Cold resistant conveyor belt
9.Inclined conveyor belt
10.Whole flame retardant conveyor belt
11. Tear resistant steel cord conveyor belt
12. Tear resistant conveyor belt with detector
13. Tubular conveyor belt
14. Corrugated sidewall conveyor belt

Name	Rubber Conveyor Belt
EP Fabric	EP 100 - EP 800
Thickness	3+1.5mm, 3+2mm, 4+2mm, 4+1.5mm, 4+3mm, 5+1.5mm, 5+2mm, 6+2mm, 8+2mm , 3/16"+1/16", 1/4"+1/16"
Ply	1 -6 PLY
Width	400 mm-2400 mm
Tensile strength	8MPA,10MPA,12MPA,15MPA, 17MPA, 18MPA,20MPA,24MPA,25MPA, DIN-X,Y,W, Z RMA-1,RMA-2, N17,M24, MOR
Grade	Oil resistance , heat resistance , fire resistance , cold resistance etc
Abrasion loss	90- 250 mm3
Popular Type	EP300/2, EP315/3, EP400/3,EP400/4,EP500/3, EP500/4, EP500/5, EP600/3,EP600/4,EP800/4,EP1000/5,EP1250/5,EP1200/6
Edge	CE or ME
