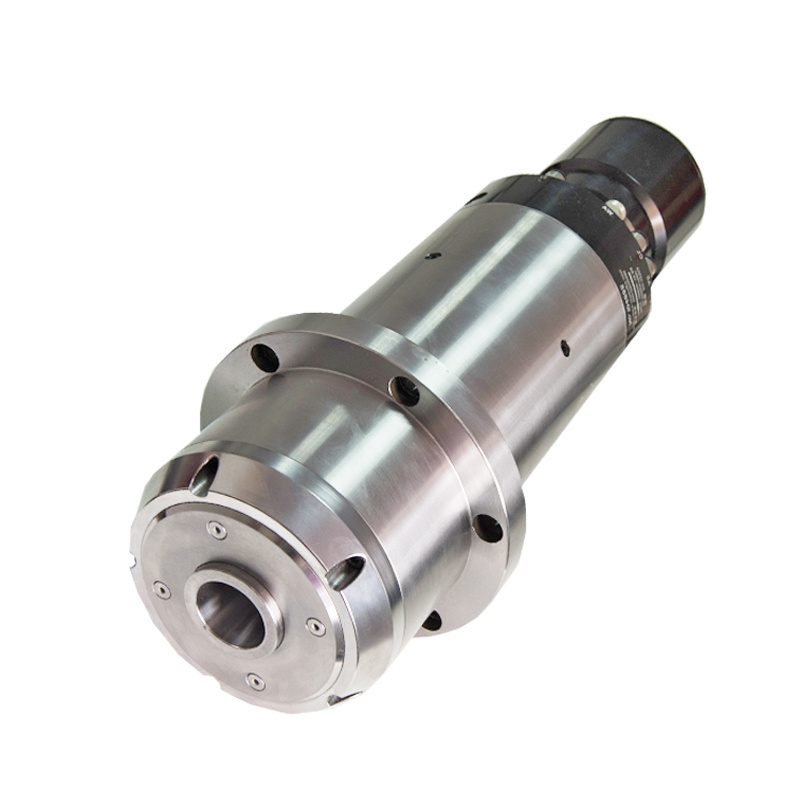

bt30 spindle 30000rpm atc cnc router milling spindle motor 7.5kw water cooling motor spindle
bt30 spindle 30000rpm atc cnc router milling spindle motor 7.5kw water cooling motor spindle
bt30 spindle 30000rpm atc cnc router milling spindle motor 7.5kw water cooling motor spindle
bt30 spindle 30000rpm atc cnc router milling spindle motor 7.5kw water cooling motor spindle
bt30 spindle 30000rpm atc cnc router milling spindle motor 7.5kw water cooling motor spindle
bt30 spindle 30000rpm atc cnc router milling spindle motor 7.5kw water cooling motor spindle
bt30 spindle 30000rpm atc cnc router milling spindle motor 7.5kw water cooling motor spindle
bt30 spindle 30000rpm atc cnc router milling spindle motor 7.5kw water cooling motor spindle

bt30 spindle 30000rpm atc cnc router milling spindle motor 7.5kw water cooling motor spindle

FOB Reference Price: Get Latest Price
≥1 Sets
US $2200
≥100 Sets
US $1500
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
EEJA
Maximum Torque:
5.73nm
Operating Speed:
30000RPM/Min
Power:
7.5kw
Cone surface spring at shaft end::
≤0.001mm
Max Frequency:
1000Hz
Max Speed::
30000Rpm
Power::
380v(3~)
Max currency::
25A
Machining material::
all kinds of steels, and some aluminum
Certificate:
ISO9001:2008
Cooling type:
Water Cooling

Quick Details

Place of Origin:
Guangdong, China
Applicable Industries:
cnc spindle
Weight (KG):
26
Brand Name:
EEJA
Maximum Torque:
5.73nm
Operating Speed:
30000RPM/Min
Power:
7.5kw
Cone surface spring at shaft end::
≤0.001mm
Max Frequency:
1000Hz
Max Speed::
30000Rpm
Power::
380v(3~)
Max currency::
25A
Machining material::
all kinds of steels, and some aluminum
Certificate:
ISO9001:2008
Cooling type:
Water Cooling
Max rotate speed
30000Rpm/min
Max Frequency
1000Hz
Voltage
380V
Cooling
water Cooled
water Cooled
BT30
Q1: Can you give us a better price? A: The more products you buy, the more discounts you get. Q2: Can I make a OEM order? A: Yes, we do but it will take longer time to do OEM. Acutally we offer wide range of spindle product sizes and you may find what you need from them. Q3: How does your factory do regarding quality control? A: We were authorized with the certificate of ISO9001 since the year of 2013 and renewed every year until now. Our employees are trained well and they are quality inspectors first then the machine operators or engineers. We use quality materials and machines to make our products. Q4: What is your minimum quanlity order? A: One set. Q5: How to find the right product? A: Read our product information first. Or tell us what you need in detail with the description of all parameters, photos and even the material that you will process. We will recommend you what is the best for you, based on the information you supply to us. Q6: What is your term of payment? A: Usually 100% TT in advance . sometimes can be 50% deposit ,and 50% balance before delivery Q7: What is the strength of your company? A: 1. Our engineers have robust experience of spindle design and processing for over ten years. 2. We have the most quality machining machineries like the Studder grinding machine, Korean Doosan CNC, Japanese NC lathe, all inspection instrument and equipment. 3. We are certificated with ISO9001 since the year 2013. 4. Normally we have finished goods stock for fast delivery. 5. Our operator team are skilled and some of them have over ten year experience of CNC and NC lathe. 6. We use good brand steel materials and quality copper wire for the stators. 7. All motor spindles are tested for over 8 hours before delivery.
