NDW-200 Computer Control Torsion Testing Machine Material Torque Testing Laboratory Equipment

FOB Reference Price: Get Latest Price

≥1 Sets

US $4200

≥3 Sets

US $3900

≥6 Sets

US $3800

Free Inquiry

Customized Request

Quick Details

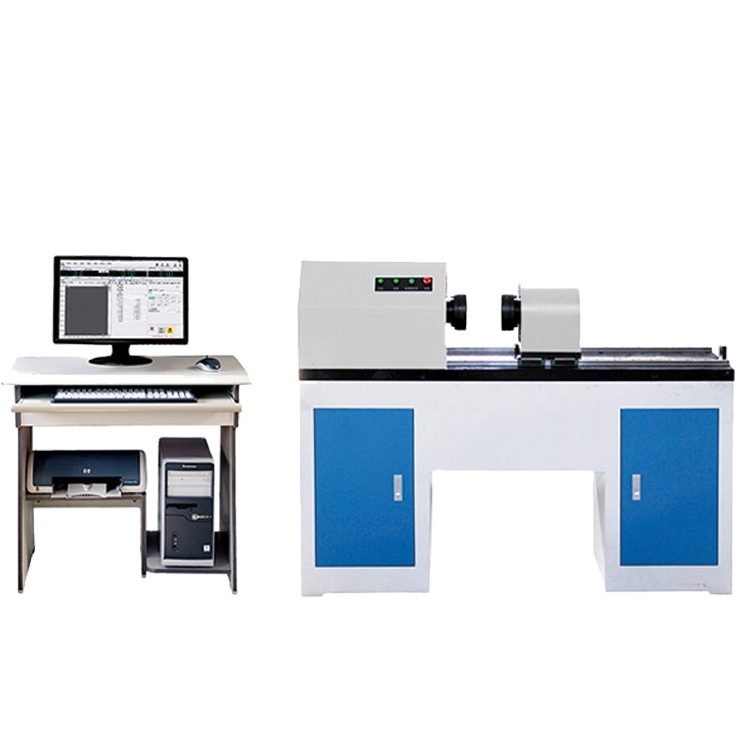

NDW-200 Computer Control Torsion Testing Machine Material Torque Testing

Laboratory Equipment

Product Description

1. Application:

This series materials torsion testing machine is used for torsion test of metal materials, nonmetallic materials, composite materials and components

2. Standard:

GB/T 10128-1998 “Meta torsion test methods under room temperature”
GB/T 10128-2007 “Meta torsion test methods under room temperature”

3.Technical parameter:

Model	NDW- 1 00	NDW- 2 00		NDW- 5 00	NDW- 1 000	NDW-2000	NDW- 3 000	NDW-5000
Max Torque ( N/m )	1 00		200	500	1000	2000	3000	5000
Control Method	Constant torque, constant angle, constant twist angle closed-loop control mode
Test class	1 class
Torque test range (F·S)	2%~ 100%F·S
Torque value relative error( %)	≤ ±1
Torque display resolution	1/20000
Twist angle test range (F·S)	2%~ 100%
Twist angle value (%)	≤ ±0.5
Twist angle display resolution	1/20000
Twist angle value accuracy (%)	≤ ±1
Corner display resolution (°)	0.01
Max twist angle	99999°
Twist angle rate control adjusting range (°/min)	0.05-800
Effective distance between chucks (mm)	600
Power supply	220V±10%, 50Hz
