Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Durmark
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1550*1100*2950
-
Weight (T):
-
6 T
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
new
-
CNC or Not:
-
CNC
-
Product name:
-
powder hydraulic forming press machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Metal forming
-
Material:
-
Aluminum, SS, MS, etc
-
Safety protection:
-
Photoelectric protection
-
Electrical component:
-
Schneider
-
Sealing ring:
-
NOK
-
Hydraulic valve:
-
Rexroth
-
Motor:
-
SIEMENS BEIDE
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Slide Stroke (mm):
-
600
-
Return Force (kN):
-
400 kN
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Durmark
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
1550*1100*2950
-
Weight (T):
-
6 T
-
Motor Power (kw):
-
11 kw
-
Marketing Type:
-
new
-
CNC or Not:
-
CNC
-
Product name:
-
powder hydraulic forming press machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Metal forming
-
Material:
-
Aluminum, SS, MS, etc
-
Safety protection:
-
Photoelectric protection
-
Electrical component:
-
Schneider
-
Sealing ring:
-
NOK
-
Hydraulic valve:
-
Rexroth
-
Motor:
-
SIEMENS BEIDE

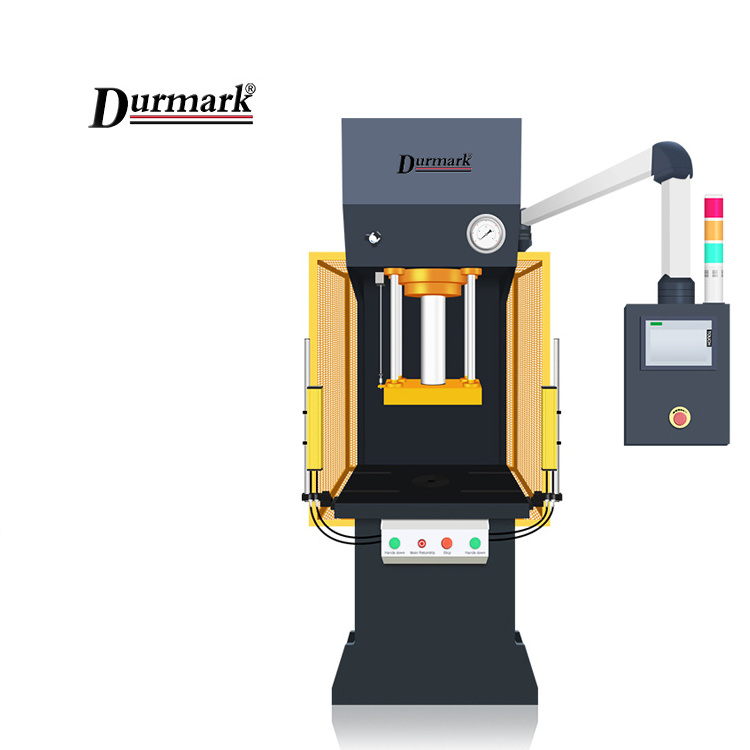

powder molding hydraulic press machine/powder compacting press/powder hydraulic forming press machine
Hydraulic press machine
Main feature
1. Adopts steel plate welded structure high sufficient, high stiffness anf high strength, compact structure and beatiful appearance;
2. Adopt PLC control, set and display pressure, dispalcement settings via text screen, sed our a related signal to control cylinder moving;
3. Wirh self-clocking and alarm functions;
4.Photoelectric protection device.
Technical parameter
|
NO. |
Items |
Unit |
YSK-160T |
|
1 |
Nominal force |
KN |
1600 |
|
2 |
Max working pressure of liquid |
Mpa |
25 |
|
3 |
Max opening height |
mm |
1000 |
|
4 |
Oil cylinder max stroke |
mm |
600 |
|
5 |
Throat depth |
mm |
350 |
|
6 |
fast down
Slider speed slow down return |
mm/s |
60 |
|
7 |
mm/s |
8-12 |
|
|
8 |
mm/s |
60 |
|
|
9 |
Worktable size |
mm |
900*700 |
|
10 |
Motor power |
KW |
11 |
Other parts
FAQ:
How about your mach
ine quality? We are worry about the quality.
RE: Durmark company is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are Brillante machines.And where there are our machines,there are good reput
ation and terminal user satisfaction.
Whether
the machine price can be more disc
ount?
RE:1. Durmark always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough quality standard to make sure the machine can work more than the real warranty period.In this way ,we w
ill save a lot and think in advance for the clients.
RE:2. we are sure to provide quality=price and price=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
