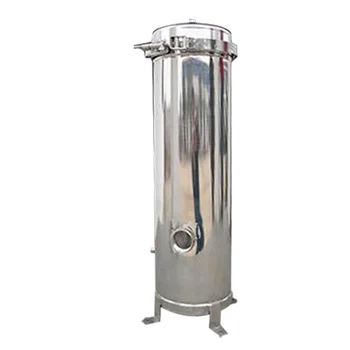

40 Inch Precision Water Filter Housing Multi Cartridges Stainless Steel 304 Filter Housing
40 Inch Precision Water Filter Housing Multi Cartridges Stainless Steel 304 Filter Housing
40 Inch Precision Water Filter Housing Multi Cartridges Stainless Steel 304 Filter Housing
40 Inch Precision Water Filter Housing Multi Cartridges Stainless Steel 304 Filter Housing
40 Inch Precision Water Filter Housing Multi Cartridges Stainless Steel 304 Filter Housing
40 Inch Precision Water Filter Housing Multi Cartridges Stainless Steel 304 Filter Housing
40 Inch Precision Water Filter Housing Multi Cartridges Stainless Steel 304 Filter Housing
40 Inch Precision Water Filter Housing Multi Cartridges Stainless Steel 304 Filter Housing

40 Inch Precision Water Filter Housing Multi Cartridges Stainless Steel 304 Filter Housing

FOB Reference Price: Get Latest Price
≥1 Pieces
US $170
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Ewater
Material:
O-ring, Stainless Steel 304/316
Weight:
50KG
Weight (KG):
20 kg
Filter Element:
Filter Cartridge
Inlet/outlet:
DN25/DN32/DN42/DN50
Quantity for Filter Cartridge:
3/5/7 ect.
length:
10inch;20incg;30inch;40inch

Quick Details

Applicable Industries:
Water treatment
Core Components:
housing
Place of Origin:
China
Brand Name:
Ewater
Material:
O-ring, Stainless Steel 304/316
Weight:
50KG
Weight (KG):
20 kg
Filter Element:
Filter Cartridge
Inlet/outlet:
DN25/DN32/DN42/DN50
Quantity for Filter Cartridge:
3/5/7 ect.
length:
10inch;20incg;30inch;40inch
Products Description

40inch Stainless Steel SS304/316L Security Multi Filter Cartridge Element Housing For RO Water Purification Treatment System

Stainless Steel Filter Housings Series provides solutions for large-scale, heavy duty filtration needs. Simple to install and
maintain, these housings are ideal for both commercial and industrial use. Holding from 3 to 120 cartridges with two types of lid sealing method.

Our stainless steel filter housing is available in single core, multi core, single bag, multi bags, sanitary type, and high flow
filter.Our factory also provide different specifications housing of customization, to support and meet our customers different demand and help them to find a better solution. Our stainless steel water filter housing widely use in many industries liquid or gas filtration, such as the RO water treatment per-filtration, drinking water, chemical filtration, food and beverage industry, pharmaceutical industry, sea water treatment, etc. Stainless Steel Cartridge Filter Housing are ideal for most industrial and commercial applications.

SS (stainless steel) filter housings meant for general industrial purposes. They can be utilized in a wide array of applications.These housings undergo a set of tests for quality assurance. We produce them with different types of connection sizes so as to match various flow rating and piping configurations.

Features and Benefits

Each housing we offer undergoes hydrostatic leak and burst pressure tests to ensure safe and consistent operation.
Lower pressure drop at higher flow rate, larger connections, air venting provision, robust knife-edge, zero bypass and leak proof sealing.
Clamp closure for easy opening and quick changeouts.
Sealed with top-seated Buna-N/Silicon/Viton 'O' ring by positive tangential contact that eliminates accidental misplacement.
Smooth surface to avoid retention of contaminants on the surface of the housings
Product Paramenters

CLAMP TYPE: WORKING PRESSURE: 100 PSI

Model
Drain
Vent
Inlet& Outlet
Dia-meter
W3L2
1/4"
1/4"
1"-1.5"
170mm
W3L3
1/4"
1/4"
1"-2"
170mm
W3L4
1/4"
1/4"
1"-2"
170mm
W5L1
1/4"
1/4"
1"-1.5"
200mm
W5L2
1/4"
1/4"
1"-1.5"
200mm
W5L3
1/4"
1/4"
1"-2"
200mm
W5L4
1/4"
1/4"
1"-2"
200mm
W7L1
1/2"
1/4"
1"-2"
250mm
W7L2
1/2"
1/4"
1"-2"
250mm
W7L3
1/2"
1/4"
1"-2.5"
250mm
W7L4
1/2"
1/4"
1"-2.5"
250mm
Model
Drain
Vent
Inlet& Outlet
Dia-meter
W5L2
1/4"
1/4"
1"-1.5"
200mm
W5L3
1/4"
1/4"
1"-2"
200mm
W5L4
1/4"
1/4"
1"-2"
200mm
W7L1
1/2"
1/4"
1"-2"
250mm
W7L2
1/2"
1/4"
1"-2"
250mm
W7L3
1/2"
1/4"
1"-2.5"
250mm
W7L4
1/2"
1/4"
1"-2.5"
250mm
W11L3
1/2"
1/4"
2"-3"
300mm
W11L4
1/2"
1/4"
2"-3"
300mm
W15L3
3/4"
1/4"
2"-3"
350mm
W15L4
3/4"
1/4"
2"-3"
350mm
W19L3
3/4"
1/4"
2"-3"
400mm
W19L4
3/4"
1/4"
2"-3"
400mm
Model
Drain
Vent
Inlet& Outlet
Dia-meter
Remark
W5L2
1/4"
1/4"
1"-1.5"
200mm
Polished or sandblast external surface.
W5L3
1/4"
1/4"
1"-2"
200mm
W5L4
1/4"
1/4"
1"-2"
200mm
W7L1
1/2"
1/4"
1"-2"
250mm
W7L2
1/2"
1/4"
1"-2"
250mm
W7L3
1/2"
1/4"
1"-2.5"
250mm
W7L4
1/2"
1/4"
1"-2.5"
250mm
W11L3
1/2"
1/4"
2"-3"
300mm
W11L4
1/2"
1/4"
2"-3"
300mm
W15L3
3/4"
1/4"
2"-4"
350mm
W15L4
3/4"
1/4"
2"-4"
350mm
W19L3
3/4"
1/4"
2"-4"
400mm
W19L4
3/4"
1/4"
2"-4"
400mm
W27L3
3/4"
1/4"
2"-4"
450mm
W27L4
3/4"
1/4"
2"-4"
450mm
Model
Drain
Vent
Inlet& Outlet
Dia-meter
W5L2
1/4"
1/4"
1"-1.5"
200mm
W5L3
1/4"
1/4"
1"-2"
200mm
W5L4
1/4"
1/4"
1"-2"
200mm
W7L1
1/2"
1/4"
1"-2"
250mm
W7L2
1/2"
1/4"
1"-2"
250mm
W7L3
1/2"
1/4"
1"-2.5"
250mm
W7L4
1/2"
1/4"
1"-2.5"
250mm
W11L3
1/2"
1/4"
2"-3"
300mm
W11L4
1/2"
1/4"
2"-3"
300mm
W15L3
3/4"
1/4"
2"-4"
350mm
W15L4
3/4"
1/4"
2"-4"
350mm
W19L3
3/4"
1/4"
2"-4"
400mm
W19L4
3/4"
1/4"
2"-4"
400mm
W27L3
3/4"
1/4"
2"-4"
450mm
W27L4
3/4"
1/4"
2"-4"
450mm
Details Images

Three different types for the top

Two different types for the connection

Product packaging
