Quick Details
-
Operating System:
-
Windows 11 Pro (Home, IOT) 64bit
-
Type:
-
Tablet PC
-
Processor Main Frequency:
-
0.9GHz~4.4GHz
-
Weight:
-
1140g
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sigan
-
Model Number:
-
SG-I10A
-
RAM/ROM:
-
16GB+128GB
-
CPU:
-
Intel i5-1235U
-
Camera:
-
Front 2.0MP;Rear 8.0MP
-
Size:
-
289.9*196.7*27.4mm
-
Software development kit (SDK):
-
Yes
-
Waterproof:
-
Rugged IP65 Grade
-
Battery Capacity:
-
7.4V/5000mAh
-
Usage:
-
All Industrial Area
-
GPS:
-
U-blox M7N, Support: GPS, glonass
-
Barcode scanner:
-
1D/2D
Quick Details
-
Screen Size:
-
10.1"
-
Memory Capacity:
-
16GB
-
Display resolution:
-
1200*1920
-
Operating System:
-
Windows 11 Pro (Home, IOT) 64bit
-
Type:
-
Tablet PC
-
Processor Main Frequency:
-
0.9GHz~4.4GHz
-
Weight:
-
1140g
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
sigan
-
Model Number:
-
SG-I10A
-
RAM/ROM:
-
16GB+128GB
-
CPU:
-
Intel i5-1235U
-
Camera:
-
Front 2.0MP;Rear 8.0MP
-
Size:
-
289.9*196.7*27.4mm
-
Software development kit (SDK):
-
Yes
-
Waterproof:
-
Rugged IP65 Grade
-
Battery Capacity:
-
7.4V/5000mAh
-
Usage:
-
All Industrial Area
-
GPS:
-
U-blox M7N, Support: GPS, glonass
-
Barcode scanner:
-
1D/2D
Products Description
Technical Parameters
|
Product Form
|

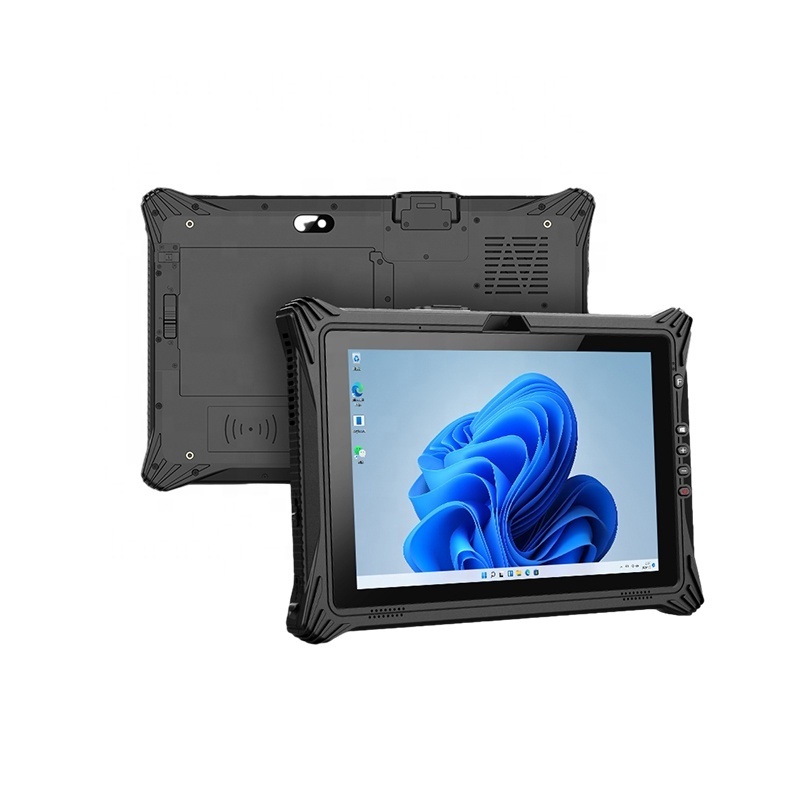

10.1 inch Rugged Tablet
|
|
Material
|
-
|
|
Dimension
|
289.9*196.7*27.4mm
|
|
Weight
|
1140g
|
|
Product Color
|
Black + Black
|
|
CPU
|
i5-1235U, TDP15W, 2P-Cores, 10E-Cores, 12threads, 0.9GHz~4.4GHz
Optional: i7-1255U, TDP15W, 2P-Cores, 10E-Cores, 12threads, 1.2GHz~4.7GHz |
|
GPU
|
Intel® Iris® Xe Graphics eligible
|
|
Memory
|
RAM 16GB DDR4L ROM 128GB SSD
|
|
Operating System
|
Windows 11 Pro (Home, IOT) 64bit, Language by default: English
Optional: Windows 10 IOT 64bit Windows 10 Pro 64bit Windows 10 Home 64bit |
|
Display
|
Type: LCD
Size: 10.1 inch 16:10 Resolution: 1200*1920 Brightness: 700cd/㎡ |
|
Touch Pannel
|
10 points capacity TP, G+F+F, Hardness over 7H, Scratch resistant, Support stylus
|
|
Camera
|
Front 2.0MP (USB)
Rear 8.0MP (USB) |
|
Buttons
|
Power *1
Volume Key + *1 Volume Key - *1 Windows Home *1 F Key *1 (Barcode Scanning, Customizable without barcode) |
|
Speaker
|
8Ω/1W Waterproof Speaker *1
|
|
Microphone
|
Waterproof microphone 4618, specification: - 44dB±3DB
|
|
Senssors
|
G_sensor
|
|
Fan
|
IPX5 Fan *1
|
|
RTC Battery
|
3V 210mAH
Continuous discharge current: 0.2mA Diameter: Ø20.0mm Max Thickness: 3H.2mm |
|
Small Battery
|
Build in Lithium-ion polymer battery, Non-removable
7.4V/700mAh |
|
Big Battery
|
Removable Li-polyment Battery
7.4V/5000mAh 4.5h ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
|
WIFI
|
Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax Dual frequency 2.4G+5.8G WIFI
|
|
Bluetooth
|
BT5.1 (BLE) class1 Transmited distance：10m
|
|
4G
|
MeiG 750
LTE-FDD: B1/3/5/7/8/20 LTE-TDD: B40 WCDMA: B1/5/8 GSM: 900/1800 China (Unicom, mobile support is poor, only B8 supports without TDD band) Europe, Middle East, Africa, Taiwan, Japan Optional: MeiG North America and South America modules |
|
GPS
|
U-blox M7N, Support: GPS, glonass
Optional: U-blox M8Q, Support: GPS, Beidou, glonass |
|
I/O Interface
|
USB3.0 *1
|
|
|
Type C (Full function/HDMI/Charging) *1
|
|
|
∮3.5mm Standard earjack *1
|
|
|
HDMI 2.1a mini *1
|
|
|
SIM card *1
|
|
|
TF card *1，Max: 128GB
|
|
|
DC 19V 3.42A jack *1
|
|
|
12PIN Pogo Pin (USB/Docking charging) *1
|
|
Adapter
|
AC100V ~ 240V, 19V 3.42A/65W Output USA Standard CE approval
Optional: EU UK |
|
Rugged Features
|
MIL-STD-810G: 1.22m drop
|
|
|
Working temperature: -20 °C to 60 °C
|
|
|
Storage temperature: -30 °C to 70 °C
|
|
|
Electrostatic discharge: ± 8kV contact discharge, ± 15kV air discharge
|
|
|
Humidity: 95% Non-Condensing
|
|
Certification
|
IP65
|
|
|
CE
|
|
|
CCC
|
|
|
MIL-STD-810G
|
|
|
Battery: UN3803, MSDS, IEC62133, aviation report, marine report
|
|
Data Collection
|
NFC
Optional, NXP300 |
|
|
Fingerprint
Built-in |
|
Expansion Module
|
RJ45 board
(10/100/1000M) network port * 1, supporting customized (10/100/1000M) gigabit network speed network port |
|
|
DB9 board
(RS232) *1, 9-line full function |
|
|
USB2.0
USB2.0 *1, Big USB |
|
|
QR Code Scanner
N3680 hardcode, Optical resolution: 5mil, scan speed: 50 times/s |
