Quick Details
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
460*180
-
Year:
-
2021
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hoston
-
Dimension(L*W*H):
-
1550*1150*1590
-
Weight (KG):
-
750
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Surface Grinding Machine
-
Machine Name:
-
Surface grinding machine
-
Color:
-
white&green
-
Model:
-
M618A
-
Spindle Speed:
-
0-6000
Quick Details
-
Grinding Length(mm):
-
500
-
Table Travel (X) (mm):
-
500
-
Table Travel (Y) (mm):
-
190
-
Surface Roughness(μm):
-
0.32 μm
-
Table Size(mm):
-
460*180
-
Year:
-
2021
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Hoston
-
Dimension(L*W*H):
-
1550*1150*1590
-
Weight (KG):
-
750
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Surface Grinding Machine
-
Machine Name:
-
Surface grinding machine
-
Color:
-
white&green
-
Model:
-
M618A
-
Spindle Speed:
-
0-6000

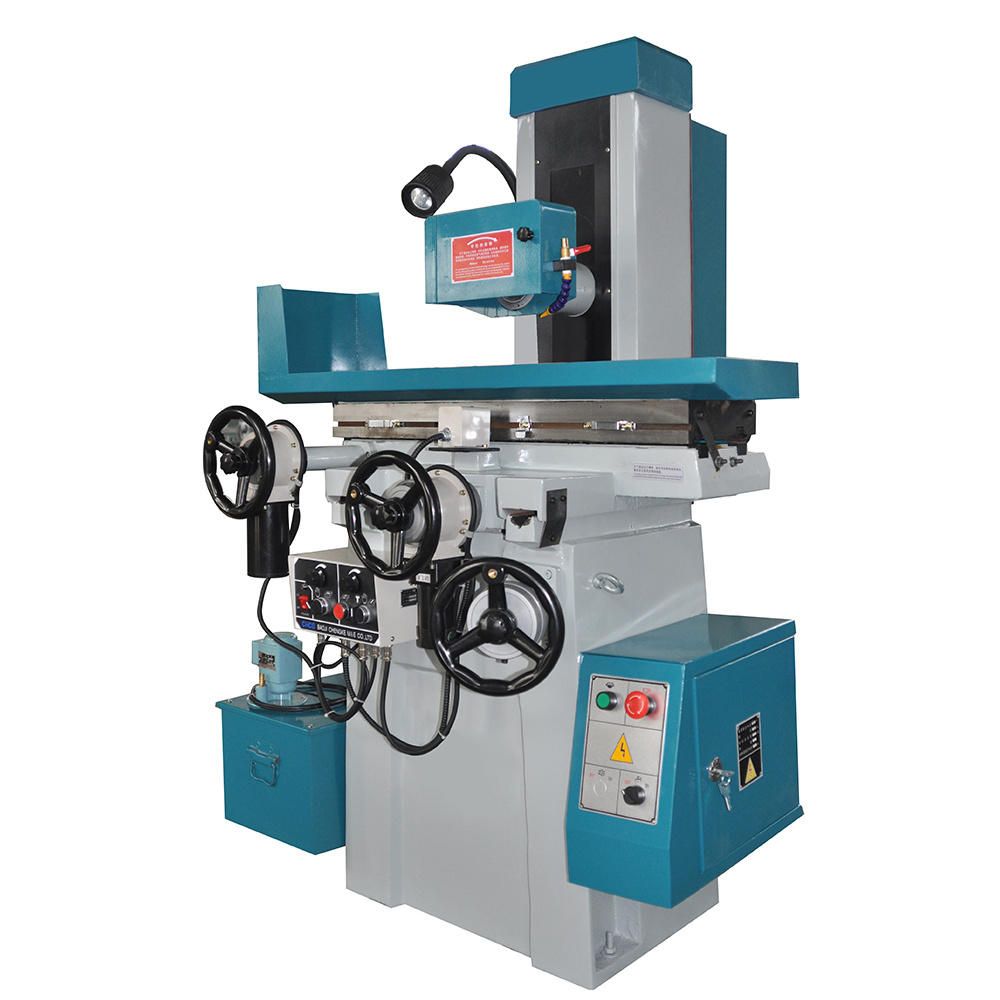

Electric Surface Grinding Machine MD618A
X-axis manual and auto electric transmission .
Y-axis manual and auto transmission .
Z-axis manual transmission .
1. High rigidity H-frame column with spindle center to table for extra clearance under the wheel.
2. Enhanced ribbed full cast iron base provides the best anti-vibration foundation with greater stability and rigidity
3. Enlarged spindle housing for heavier grinding
4. V3 grade spindle motor for powerful output to achieve precision work standards and better grinding capability.
5. Cartridge spindle w/4 per-loaded class 7 (P4) bearing and run our of taper nose better than 0.00060 T. I. R. Provides quiet, vibration free operation for better workpiece accuracy. Quiet, vibration free operation for better workpiece accuracy.
6. Our casting is made by resin sand which can make it have a comprehensive high quality; We use a copper core intensive sucker chuck, which works better than aluminum core chuck; Adopting the exceeding precise P4 level ball bearing for spindle.
|
Model |
MD618A |
|||
|
Working table |
Table Size (L× W) |
mm |
460×180 |
|
|
Max movement of working table(L× W) |
mm |
500×190 |
||
|
T -Slot number×width |
mm |
1×14 |
||
|
Grinding head |
Max distance from spindle center to table surface |
mm |
335 |
|
|
Wheel Size(Outer diameter×width×Inner diameter) |
mm |
φ180×13×Φ31.75 |
||
|
Wheel speed |
50HZ |
r/min |
2850 |
|
|
60HZ |
3440 |
|||
|
Feed amount |
Longitudinal speed of working table |
m/min |
3-20 |
|
|
Cross feed of working table |
Continuously(Variable Transmission) |
mm/min |
300 |
|
|
Intermittently(Variable Transmission) |
mm/times |
0-5 |
||
|
Per revolution on handwheel |
mm |
5 |
||
|
Per graduation on handwheel |
mm |
0.02 |
||
|
Vertical feed on handwheel |
Per revolution |
mm |
1.25 |
|
|
Per graduation |
mm |
0.01 |
||
|
Commutation feeder |
Total input power |
w |
150 |
|
|
X- feeder output speed |
R/min |
0-225 |
||
|
X- feeder size |
mm |
280×130×120 |
||
|
Y- feeder output speed |
R/min |
0-120 |
||
|
Y- feeder size |
mm |
280×130×120 |
||
|
Motor power |
Spindle motor |
kw |
1.1 |
|
|
Coolant pump motor |
w |
40 |
||
|
Working precision |
The parallelism of working surface to base level |
mm |
300:0.005 |
|
|
Surface roughness |
μm |
Ra0.32 |
||
|
Weight |
Net |
kg |
667 |
|
|
Gross |
kg |
767 |
||
|
Overall dimension(L×W×H) |
mm |
1550x1150x1590 |
||
|
Package dimension(L×W×H) |
mm |
1000x1150x1760 |
||
