Max. Spindle Speed (r.p.m):
-
2000 r.p.m
-
Spindle Bore(mm):
-
300
-
Width of bed (mm):
-
450 mm
-
Spindle Motor Power(kW):
-
15/18.5
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Z Axis)(mm):
-
450 mm
-
Place of Origin:
-
Zhejiang, China
-
Dimension(L*W*H):
-
2260*1780*2800
-
Brand Name:
-
OEM
-
Model Number:
-
VMC1060B
-
Voltage:
-
-
-
Weight (KG):
-
2000
-
Marketing Type:
-
New Product 2023
-
Worktable size:
-
600*1200mm
-
T -slot(N-W*D):
-
5*18*100mm
-
X axis travel:
-
1000mm
-
Y axis travel:
-
620mm
-
Z axis travel:
-
630mm
-
L*W*H:
-
2850*2300*2850mm
-
Max. load bearing of worktable:
-
800kg
-
Machine weight:
-
6800kg
Quick Details
-
Type:
-
VERTICAL
-
Max. Length of Workpiece (mm):
-
600
-
Year:
-
2023
-
Max. Spindle Speed (r.p.m):
-
2000 r.p.m
-
Spindle Bore(mm):
-
300
-
Width of bed (mm):
-
450 mm
-
Spindle Motor Power(kW):
-
15/18.5
-
Travel (X Axis)(mm):
-
300 mm
-
Travel (Z Axis)(mm):
-
450 mm
-
Place of Origin:
-
Zhejiang, China
-
Dimension(L*W*H):
-
2260*1780*2800
-
Brand Name:
-
OEM
-
Model Number:
-
VMC1060B
-
Voltage:
-
-
-
Weight (KG):
-
2000
-
Marketing Type:
-
New Product 2023
-
Worktable size:
-
600*1200mm
-
T -slot(N-W*D):
-
5*18*100mm
-
X axis travel:
-
1000mm
-
Y axis travel:
-
620mm
-
Z axis travel:
-
630mm
-
L*W*H:
-
2850*2300*2850mm
-
Max. load bearing of worktable:
-
800kg
-
Machine weight:
-
6800kg
Products Description

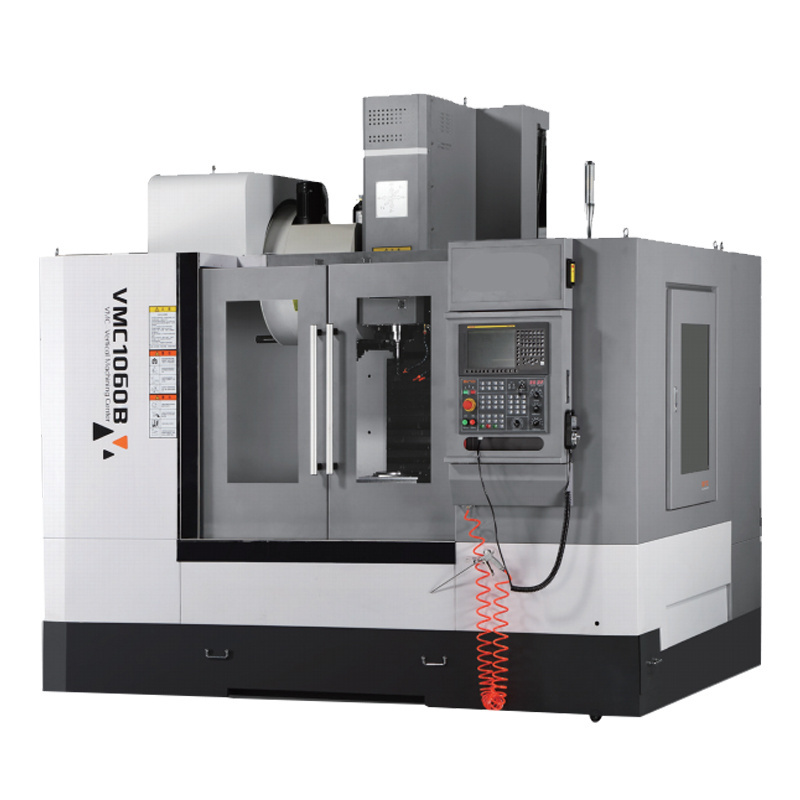

VMC1060B Strong Rigidity and High productivity CNC metal cutting machine
The VMC1060B vertical machining center adopts a vertical frame layout, with columns fixed on the bed. The spindle box moves up and down along the columns (Z direction), the slide seat moves longitudinally along the bed (Y direction), and the workbench moves laterally along the slide seat (X direction). All three axes use linear guides, replacing sliding friction with rolling friction, which makes the movement speed faster and meets the requirements of high speed and precision. The main components of the bed, workbench, bed saddle, column, and spindle box are all made of high-strength impregnated cast iron material, with a resin sand process and two aging treatments to eliminate stress. It can achieve processes such as milling, drilling, expanding, boring, reaming, tapping, etc. It is mainly used in mechanical processing industries such as military, mining, automotive, molds, instruments, etc. It can be used to process various high-precision, multi process, and complex shaped parts. Suitable for small and medium-sized batch, multi variety production, and can also enter automatic assembly line production.
|
Item
|
Unit
|
VMC850P
|
VMC1000P
|
VMC1060B
|
VMC1160B
|
|||||
|
Worktable
|
|
|
|
|
|
|||||
|
Worktable size
|
mm
|
500x1000
|
520x1200
|
610×1200
|
610×1300
|
|||||
|
T-slot (N×W×D)
|
mm
|
5x18x100
|
5x18x100
|
5x18x100
|
5x18x100
|
|||||
|
Travel
|
|
|
|
|
|
|||||
|
Axis travel (X/Y/Z)
|
mm
|
850/500/550
|
1000/520/535
|
1000/620/630
|
1100/610/630
|
|||||
|
Machining range
|
|
|
|
|
|
|||||
|
Distance from spindle center to column
front |
mm
|
582
|
582
|
667
|
667
|
|||||
|
Distance from spindle end to work table
|
mm
|
100~650
|
80~615
|
110~740
|
110~740
|
|||||
|
Machine dimension
|
|
|
|
|
|
|||||
|
L×W×H
|
mm
|
2460x2355x2860
|
2600x2355x2860
|
2850x2500x2820
|
3000x2500x2750
|
|||||
|
Machine weight
|
|
|
|
|
|
|||||
|
Max. load bearing of worktable
|
kg
|
500
|
500
|
800
|
1000
|
|||||
|
Machine weight
|
kg
|
5500
|
5800
|
6800
|
7000
|
|||||
|
Spindle
|
|
|
|
|
|
|||||
|
Spindle hole taper
|
|
BT40
|
BT40
|
BT40
|
BT40
|
|||||
|
Spindle power
|
Kw
|
11/15
|
11/15
|
11/15
|
11/15
|
|||||
|
Max. spindle speed
|
rpm
|
8000/10000
|
8000/10000
|
8000
|
8000
|
|||||
|
Feed
|
|
|
|
|
|
|||||
|
Max. feed speed
|
mm/min
|
10000
|
10000
|
10000
|
10000
|
|||||
|
Rapid feed speed (X/Y/Z)
|
m/min
|
48/48/32
|
48/48/32
|
36/36/30
|
36/36/30
|
|||||
|
Tool Magazine
|
|
|
|
|
|
|||||
|
Tool magazine capacity
|
T
|
24
|
24
|
24
|
24
|
|||||
|
Maximum allowable length of cutter
|
mm
|
300
|
300
|
300
|
300
|
|||||
|
Tool change time(T-T)
|
s
|
2.5
|
2.5
|
2.5
|
2.5
|
|||||
|
Positioning accuracy (National standard)
|
|
|
|
|
|
|||||
|
Positioning accuracy (X/Y/Z)
|
mm
|
0.008
|
0.008
|
0.010
|
0.010
|
|||||
|
Re-positioning accuracy(X/Y/Z)
|
mm
|
0.005
|
0.005
|
0.005
|
0.005
|
|||||
Machine structure :
---The contact ratio between spindle case and column increased to ensure spindle rigidity.
---1100mm wide machine body span and optimum supporting design can meet with fast feed of X and Y axis.
---Big size of “pyramid” column and with closed inner cavity to ensure low center but high rigidity support of Z axis.
---1100mm wide machine body span and optimum supporting design can meet with fast feed of X and Y axis.
---Big size of “pyramid” column and with closed inner cavity to ensure low center but high rigidity support of Z axis.
Preloaded and double anchored ball screw :
---Servo motor directly coupled ball screw.
---All the ball screws, linear guideway, bearings are well lubricated in time and ration.
---Y/Z axis adopt 45mm linear guideway while X axis adopts 35mm which make the rapid feed speed reach 48/48/32m/min.
---In order to eliminate thermal growth and increase accuracy, all axes are driven by high precision double anchored ballscrews. Also 5 rank high precision angular contacted bearing installed aside the ball screw and make pre-tension.
---All the ball screws, linear guideway, bearings are well lubricated in time and ration.
---Y/Z axis adopt 45mm linear guideway while X axis adopts 35mm which make the rapid feed speed reach 48/48/32m/min.
---In order to eliminate thermal growth and increase accuracy, all axes are driven by high precision double anchored ballscrews. Also 5 rank high precision angular contacted bearing installed aside the ball screw and make pre-tension.
Shoulder carrying tool magazine :
Shoulder carrying tool magazine can ensure Z axis geometric accuracy and perfect stability, rigidity and the minimum deformation when column loaded with tool magazine weight.
Large flow coolant fluid :
---Labyrinth style cover design to protect machine from scraps and cutting fluid.
----Standard equipped with inner side flushing system to remove scraps efficiently.
----Standard equipped with inner side flushing system to remove scraps efficiently.
