1.Control panel
2.High quality 3P Circuit breaker and terminal output
3.Strong hoisting structure
4.Durable stainless steel hinges
5.High performance exhaust silencer
6.Radiator coolant refill
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
AI Power
-
Model Number:
-
ASM1100
-
Speed:
-
1500RMP
-
Engine:
-
With Shanghai Mitsubishi S12A2-PTA
-
Alternator:
-
With Stamford HCI634J
-
Controller:
-
Deepsea,
-
Canopy Color:
-
Yellow, White, Green, Grey
-
Origin:
-
China
-
Power Factor:
-
0.8
-
Protection Class:
-
IP23
-
Insulation Grade:
-
H
-
Governor:
-
Electrical
-
Certification:
-
ISO
Quick Details
-
Rated Voltage:
-
230/400V
-
Rated Current:
-
1600A
-
Frequency:
-
50HZ
-
Place of Origin:
-
China
-
Brand Name:
-
AI Power
-
Model Number:
-
ASM1100
-
Speed:
-
1500RMP
-
Engine:
-
With Shanghai Mitsubishi S12A2-PTA
-
Alternator:
-
With Stamford HCI634J
-
Controller:
-
Deepsea,
-
Canopy Color:
-
Yellow, White, Green, Grey
-
Origin:
-
China
-
Power Factor:
-
0.8
-
Protection Class:
-
IP23
-
Insulation Grade:
-
H
-
Governor:
-
Electrical
-
Certification:
-
ISO
Product Description

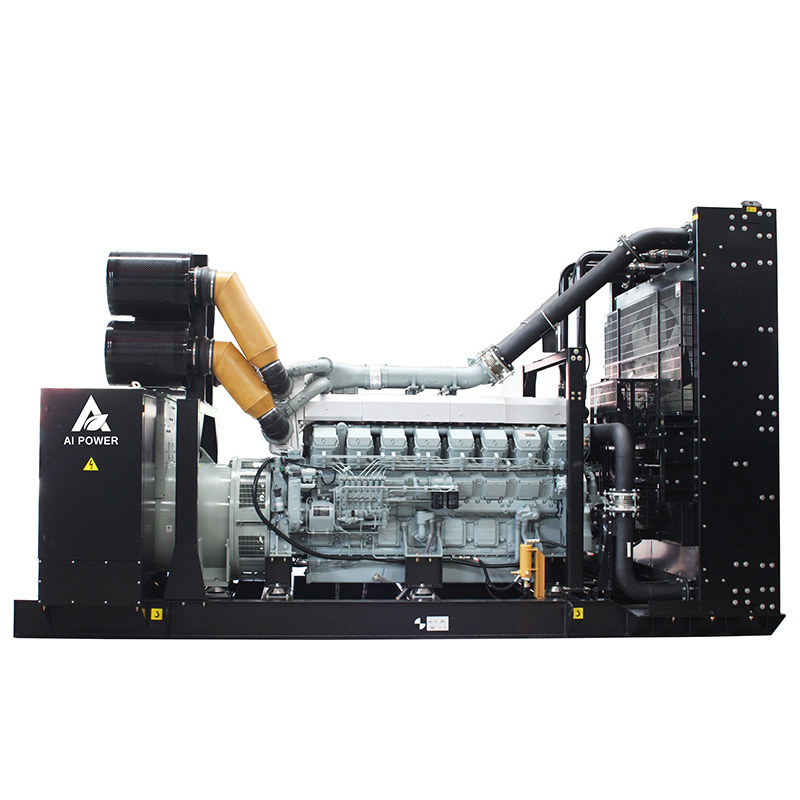

50hz Ai power diesel generator 1000kva 800kw power by Japan Mitsubishi S12A2-PTA!
AI power Mitsubishi series generator set adopts Mitsubishi engine as the power source. Shanghai Mitsubishi heavy engine Co., Ltd. is a joint venture between Japan's Mitsubishi heavy industry Co., Ltd. and Shanghai diesel engine Co., Ltd. the company produces the S6R2/S12R/S16R series engines under the authority from MHI.
Engine:
|
Engine manufacture
|
Mitsubishi Heavy Industries, Ltd.
|
|
|
||
|
Engine brand
|
Mitsubishi
|
|
|
||
|
Engine model
|
S12A2-PTA
|
|
|
||
|
Engine speed (rpm)
|
1500
|
|
|
||
|
Standby power without fan(mKW)
|
1020
|
|
|
||
|
Prime power without fan(mKW)
|
930
|
|
|
||
|
Type
|
4-Cycle, Water cooled
|
|
|
||
|
Aspiration
|
Turbo-charged, After cooler
|
|
|
||
|
Cylinder
|
12 cyliner 60°V
|
|
|
||
|
Bore * Stroke (mm)
|
150*175
|
|
|
||
|
Displacement (Liter)
|
37.11
|
|
|
||
|
Compression Ratio
|
14.0:1
|
|
|
||
Alternator:
|
Alternator brand
|
Stamford
|
|
Alternator model
|
HCI634J
|
|
Control system
|
PMG
|
|
A.V.R.
|
Included
|
|
Voltage regulation
|
±1%
|
|
Insulation system
|
Class H
|
|
Protection
|
IP23
|
|
Rated power factor
|
0.8
|
|
Winding pitch
|
Two thirds
|
|
Winding leads
|
6
|
|
Frequency (Hz)
|
50
|
|
Voltage (V)
|
400
|
|
Phase
|
3
|
|
Output ratings prime(kva/kw)
|
1030/824
|
|
Output ratings standby(kva/kw)
|
1110/888
|
|
THF
|
<2%
|
|
TIF
|
<50
|
|
Max. overspeed (Rev/Min)
|
2250
|
|
Bearing
|
Single
|
Product Details
1.Assembled by Mitsubishi diesel engine and high quality branded alternator.
2.Radiator and fan with safety guard, or heat exchanger.
3.Heavy duty steel base frame with great capacity fuel tank for options.
4.Vibration damping supports between engine/alternator and base frame.
5.Heavy duty industrial type exhaust silencer with flexible bellow.
6.High capacity sealed lead acid battery with battery cable.
7.Intelligent control panel, Deepsea or Comap brand for options.
Open Type.
● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.
Silent Performance Features:
● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● large-scale impedance combined type silencer effectively reducing noise of the generator.
● Stainless steel door locks and hinges and 180° revolvable and disassemble door for easy maintenance.
● High quality soundproof and insulation materials could efficiently reduce noise.
● Transparent viewing window make the control panel clear at a glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
●From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
● ISO standard 20', 40' and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.
AI Company
Advanced&Intelligent.
Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province, It is dedicated to becoming a comprehensive company for intelligent power and green energy supply.Our company aim to create a better life for the world by supplying better power solutions. Continually improving products' quality, friendly-use and durability is our long-term mission. We will make all the efforts to walk a long way to reach customers' greatest satisfaction.
Packing & Delivery
FAQ
1. Can you accept small order?
A: Yes, we can accept trial order, it is the starting of business. But according to different product the price may be higher as normal quantity.
2. What is your company product range?
A: We are a professional turbocharger supplier, OEM and ODM are welcome.
3. Do you inspect the product? How?
A: Yes, each step of production and finished products will be carried out inspection by QC before shipping.
4. What is your payment terms?
A: T/T 30% advance payment, the balance 70% shall be paid before shipment, L/C at sight.
5. What about your factory production capacity?
A: 200pcs per month.
6.What kind of transactions you can accept
.
A: We can accept FOB, CIF, CFR.
