* The standard configuration seat is normal seat(in right picture).
* It can be replacement into luxury seats with folding armrest. Not free.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Lianke
-
Place of Origin:
-
China
-
Size:
-
3200*1050*1450mm
-
Certification:
-
C.O
-
Max. Loading Capacity:
-
2000 kg
-
Lifting Motor Power:
-
1000 w
-
Drive Motor Power:
-
4000 w
-
Cargo Box Sizes:
-
1600*1050*600 mm
-
Thickness of Cargo Box:
-
Bottom 5mm, side 3mm
-
Front Tire:
-
5.00-14
-
Rear Tire:
-
6.00-16
-
Rear axle type:
-
DT Direct connect rear axle with high and low speed gear
-
Front shock absorption type:
-
Single row large shock absorption
Quick Details
-
Power:
-
> 1000W
-
Voltage:
-
> 60V
-
Tire Size:
-
5.00-14/6.00-16
-
Brand Name:
-
Lianke
-
Place of Origin:
-
China
-
Size:
-
3200*1050*1450mm
-
Certification:
-
C.O
-
Max. Loading Capacity:
-
2000 kg
-
Lifting Motor Power:
-
1000 w
-
Drive Motor Power:
-
4000 w
-
Cargo Box Sizes:
-
1600*1050*600 mm
-
Thickness of Cargo Box:
-
Bottom 5mm, side 3mm
-
Front Tire:
-
5.00-14
-
Rear Tire:
-
6.00-16
-
Rear axle type:
-
DT Direct connect rear axle with high and low speed gear
-
Front shock absorption type:
-
Single row large shock absorption
Product Descriptions

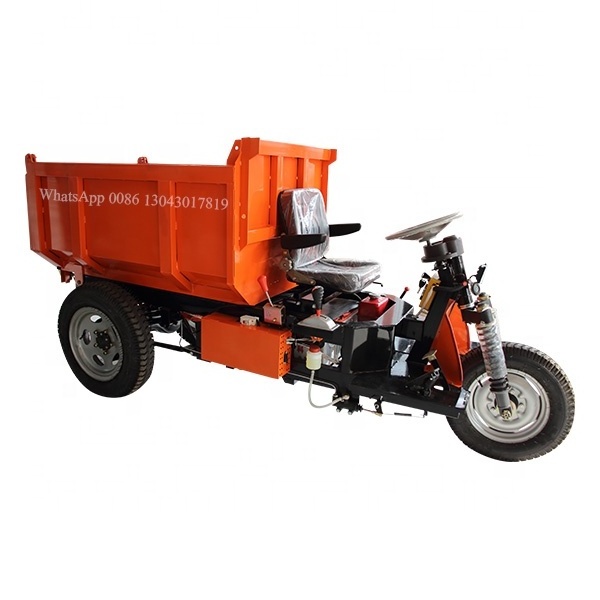

LK200E electric 3 wheeler,multi-function mini dumper truck, hydraulic and electric mini electric dumpers
Product Application
Electric 3 wheeler is one of our new main products. It is new design and model, using electric as power source in mining but with similar shape as diesel dumpers, durable and environmentally friendly . It is also widely used in mine, construction site and so on.
The main image and video may have some differences from the products in the main text. The configuration and quotation of the products are subject to the quotation provided by us. Or directly contact me via Alichat or add my whats a p p(0 0 8 6 1 3 0 4 3 0 1 7 8 1 9) for more details.
Please note: the luxury folding armrest seat in the photo below are optional, not standard configuration. For 20 units, the seat can be upgrade free of charge.
|
No.
|
Technical parameters
|
LK200E
|
LK200
|
|
|
1
|
Max. Loading capacity
|
2000kg
|
|
|
|
2
|
Front tire
|
5.00-14 (Huanyan brand)
|
4.50-14 (Huanyan brand)
|
|
|
3
|
Rear tire
|
6.00-16 (Huanyan brand)
|
|
|
|
4
|
Dimension(L*W*H)
|
3200*1050*1450mm
|
3300*1100*1350mm
|
|
|
5
|
Hopper size
(L*W*H)
Hopper height can be customized.
|
1600*1050*600mm
|
1800*1100*450mm
|
|
|
6
|
Hopper thickness
|
Bottom 5mm, side 3mm
(offer customization, such as 6mm, 8mm)
|
|
|
|
7
|
Driving motor power
|
4000W/72V
|
3000W/60V
|
|
|
8
|
Driving motor type
|
Brushless motor
|
Brushed motor
|
|
|
9
|
Lifting motor power
|
1000W/72V
|
1000W/60V
|
|
|
10
|
Lifting motor type
|
Brushed motor
|
|
|
|
11
|
Batteries type
|
water battery, 30kg/piece
|
|
|
|
12
|
Batteries quantity
|
6 pieces of 12V, total 72V
|
5 pieces of 12V, total 60V
|
|
|
13
|
Front shock absorption type
|
Single-row big shock absorption
|
|
|
Advantage & Details
1. Vehicle frame and hopper.
2. Driving motor, Rear axle and Controller
* The standard configuration is DT 4kw brushless motor and DT brand direct-connect rear axle.
Motor, controller and rear axle and totally matched, all of them are DT brand. High quality and e
xcellent coordination.
3. Batteries and charger
The standard configuration is 6pcs of 12V water batteries, so it is 72V in total. Each battery weighs 30kg/pc.
Dry batteries are optional.
4. Front shock absorption type
The standard configuration of front shock absorption is single-row big
shock absorption(in picture 2).
It can be replacement into double-row large shock absorption(in picture 3), but need extra fee.
5.Seat.
Related Products
LK12 mini dumper.
36 sets LK-12-A electric mini dumper entirely shipped to Bolivia:
https://youtu.be/c76Fe7k29hA
Mucking loader
https://youtu.be/eutgBCAR0uo
Shipment & Use
* Company workshop 360° VR display.
The following is a presentation and introduction of the production process and technology in our factory's production workshop, which has been authenticated and photographed on the Alibaba platform.
The vehicle frame and hopper are completely independently designed and produced, supporting various modifications and customization.
The vehicle frame, vehicle beam and control cabinet have all undergone spray painting and shot blasting treatment which is not only rust proof and but also has a bright and beautiful appearance.
