Quick Details
-
Touch technology:
-
Infrared Touch
-
Design:
-
Foldable
-
Touch Points:
-
20 Points
-
Multi writing:
-
Max 20 points
-
Accuracy:
-
1 mm (over 90% Area)
-
Response Time:
-
<8 ms
-
Screen surface:
-
4mm thickness Anti-Glare glass
-
Viewing angle:
-
178°
-
Glass hardness:
-
Mohs-7 level
Quick Details
-
Type:
-
Riotouch
-
Brand Name:
-
Riotouch
-
Place of Origin:
-
Guangdong, China
-
Touch technology:
-
Infrared Touch
-
Design:
-
Foldable
-
Touch Points:
-
20 Points
-
Multi writing:
-
Max 20 points
-
Accuracy:
-
1 mm (over 90% Area)
-
Response Time:
-
<8 ms
-
Screen surface:
-
4mm thickness Anti-Glare glass
-
Viewing angle:
-
178°
-
Glass hardness:
-
Mohs-7 level
Product description
Riotouch M Series Fold interactive smart board blackboard combines interactive display and traditional blackboard together. It integrates with a capacitive LED Interactive display in the central and two foldable writable surface wings on the two sides is suitable for large classrooms and conference rooms.
M Series Fold interactive smart blackboard integrates of a capacitive touchscreen with 4K UHD display, supporting 30-point touch,10-point writing interactive function. With two sides foldable and writable surface wings, it’s easy for delivery and installation. Built-in Android 8.0 OS with Conference system (UMind), Multimedia publish app (UShow), and professional file management app (UFile), M series smart blackboard is a more scientific conference and classroom solution
Details Images

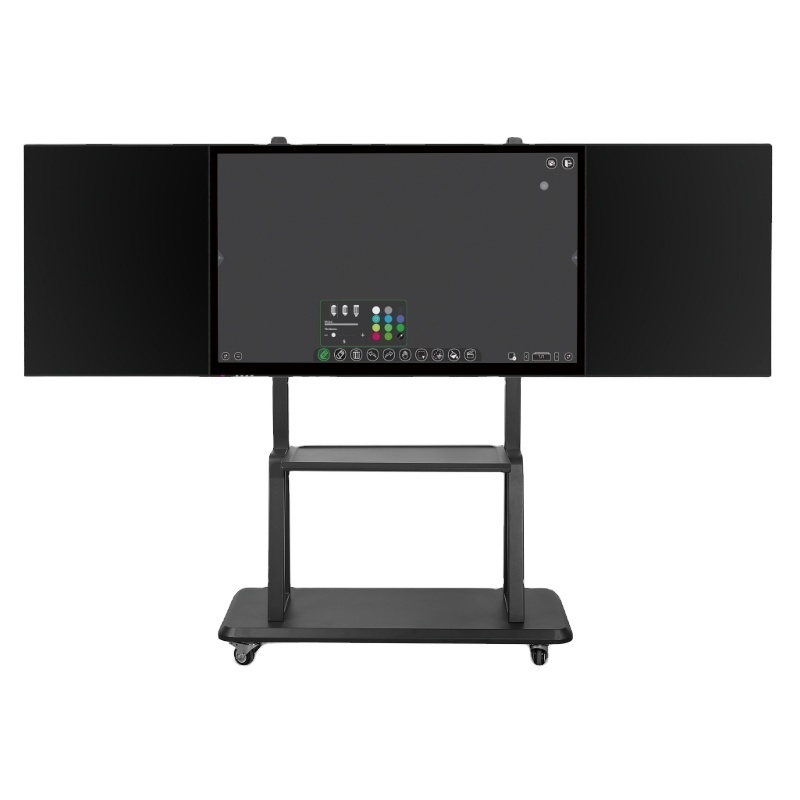

One panel double wings smart blackboard
With One P-CAP 75 inch or 86 inch 4K UHD interactive display in the center and two wings (ceramic blackboards/whiteboards) on the two side which could write with chalk or mark pens
Double panels Double wings smart blackboard
With two P-CAP 75 inch or 86 inch 4K UHD interactive displays in the center and two wings (ceramic blackboards/whiteboards) on the two side which could write with chalk or mark pens, which is suitable for more larger classroom and conference rooms
Specifications
|
Panel
|
|
|
||
|
Model
|
M86
|
M75
|
||
|
Size
|
86 inch
|
75 inch
|
||
|
Panel\Backlight
|
D-LED(OD28)
|
D-LED(OD28)
|
||
|
Display Dimension
|
1895.04mm*1065.96mm
|
1650.24mm*928.26mm
|
||
|
Resolution
|
3840*2160
|
3840*2160
|
||
|
Glass
|
chalk, liquid chalk and marker
|
chalk, liquid chalk and marker
|
||
|
Thickness of glass
|
3mm
|
3mm
|
||
|
Hardness
|
Mhos 7H
|
Mhos 7H
|
||
|
Features
|
Black, Reversible, double-sided writing
|
Black, Reversible, double-sided writing
|
||
|
Brightness
|
16:09
|
16:09
|
||
|
Ratio
|
4000:1 Typ.
|
4000:1 Typ.
|
||
|
Contrast
|
400nit (without glass), 350nit (with glass)
|
400nit (without glass), 350nit (with glass)
|
||
|
View angle
|
8ms(Typ.)\12ms(Max.)
|
8ms(Typ.)\12ms(Max.)
|
||
|
Response time
|
10 Bit (1.07B)
|
10 Bit (1.07B)
|
||
|
Color
|
( R/L 178 (Min.), U/D 178 (Min.)
|
( R/L 178 (Min.), U/D 178 (Min.)
|
||
|
Refresh frequency
|
60Hz
|
60Hz
|
||
|
Touch
|
|
|
||
|
Type
|
Capacitive touch
|
Capacitive touch
|
||
|
Technology
|
Nano Silver
|
Nano Touch
|
||
|
Active area
|
1903.04mmx1073.8mm
|
1654.24mmx932.1mm
|
||
|
Interface
|
USB2.0/3.0
|
USB2.0/3.0
|
||
|
Structure type
|
GFF
|
GFF
|
||
|
Thickness
|
3.0mm
|
3.0mm
|
||
|
Total Thickness
|
3.5±0.3mm
|
3.5±0.3mm
|
||
|
Operate system
|
Win7, 8.1, 10/Android
|
Win7, 8.1, 10/Android
|
||
|
Touch point
|
30 points in windows, 10 points in Android
|
30 points in windows, 10 points in Android
|
||
|
Linearity
|
±2.5
|
±2.5
|
||
|
Working current
|
< 500mA
|
< 500mA
|
||
|
Stand-by current
|
1A
|
1A
|
||
|
Working voltage
|
DC5V
|
DC5V
|
||
|
Response time
|
<40ms
|
<40ms
|
||
|
Penetration rate
|
≥80%
|
≥80%
|
||
|
Maninboard
|
|
|
||
|
Model
|
ADV811
|
|
||
|
Android version
|
Android 8.0 64Bit
|
|
||
|
Chip type
|
Hi3751ARBCV8110D0N
|
|
||
|
CPU
|
Dual-core A73 and dual-core A53 ，1.5GHz
|
|
||
|
GPU
|
Quad-core MaliG51
|
|
||
|
RAM
|
4GB DDR4
|
|
||
|
Flash
|
32GB (64GB optional)
|
|
||
|
Radio
|
|
|
||
|
Power(option)
|
15W*2
|
|
||
|
Front speaker
|
NO
|
|
||
|
Microphone
|
|
|
||
|
Type
|
optional
|
|
||
|
Software
|
|
|
||
|
U System
|
Launcher, Center, Float icon, setting, Float Icon
|
|
||
|
Software app
|
U mind, Ufile, Ushow, Ufreeze, Ucut, Ustore, OTA
|
|
||
|
Interfaces
|
|
|
||
|
Type-C
|
1
|
|
||
|
USB 3.0
|
1
|
|
||
|
USB 2.0
|
2
|
|
||
|
HDMI 2.0 OUT
|
1
|
|
||
|
HDMI 2.0 IN
|
1
|
|
||
|
HDMI 2.0 In (CEC&ARC)
|
1
|
|
||
|
Display Port (DP)
|
1
|
|
||
|
VGA IN
|
1
|
|
||
|
Touch out USB B type
|
2
|
|
||
|
SPDIF OUT
|
1
|
|
||
|
Earphone
|
1
|
|
||
|
MIC
|
1
|
|
||
|
VGA audio
|
1
|
|
||
|
RS232 control
|
1 (Sub-D, 9 pins)
|
|
||
|
RJ45 IN
|
1
|
|
||
|
RJ45 OUT
|
1
|
|
||
|
Windows OPS Slot
|
1
|
|
||
|
Wi-Fi for online updates
|
Yes
|
|
||
|
Front Interfaces
|
|
|
||
|
Touch
|
1
|
|
||
|
USB 2.0
|
2
|
|
||
|
HDMI
|
1
|
|
||
|
Basic information
|
|
|
||
|
Voltage
|
~ 100-240 V (50/60Hz)
|
|
||
|
Power
|
<500W
|
|
||
|
Stand-by
|
≤ 0,5 Watt
|
|
||
|
Gross weight
|
98.27(KG)
|
98.27(KG)
|
||
|
Net weight
|
85.1(KG)
|
85.1(KG)
|
||
|
Panel dimension(W x D x H)
|
1991.1mm*93.5mm*1201.0mm
|
1991.1mm*93.5mm*1201.0mm
|
||
|
Blackboard dimension(W x D x H)
|
986.0mm*17.5mm*1201.0mm
|
986.0mm*17.5mm*1201.0mm
|
||
|
Whole size(W x D x H)
|
3963.1mm*129.5mm*1201.0mm
|
3963.1mm*129.5mm*1201.0mm
|
||
|
Packing size(W x D x H)
|
2080mm*208mm*1287mm
|
2080mm*208mm*1287mm
|
||
|
Wall mount
|
800mm*600mm
|
600mm*400mm
|
||
Product Application
Our Company
Riotouch has been a professional supplier in the interactive displays and whiteboard in China since 2009. We have our professional sales team, strong Design, R&D, After-sale service team, to provide our super value products and service to our customers. We focus on smart interactive educational equipment, make lessons with more fun & joy, inspire the next generation to be more creative.
Riotouch Production Line
Certification
FAQ
1. Are you a Manufacture?
A: Yes, we are a manufacture of interactive whiteboard and interactive flat panel in China from 2009, located in Dongguan City,
Welcome your visit.
2. What's your product quality control?
A: We have strict QC team, production meeting ISO9001 production system. Our products passed CE, RoHS, FCC certification.
3. What's your after-sale service?
A: We can offer 100% guarantee on our product. Our general warranty is 1 year. For bulk order, we will provide spare parts, If any
problems, you will get our reply on line within 24 hours.
4. What's your MOQ?
A: Generally, our MOQ is 10pcs. But sample order is acceptable. More quantities enjoy better discount.
5. Could you offer the OEM service?
A: Yes, We provide OEM and ODM service and customized service. We also supply software and firmware OEM/ODEM, As we know that all
the hardware designs are almost the same, firmware become very important to win more markets.
6. What is the payment way?
A：T/T，LC,.... Trade Assurance is welcomed!
7. How about the delivery?
A: The delivery would be with in 5-20 days according to the order quantity and size of the items.
