Shenzhen Hanast New Materials Co., Ltd. (affiliated with Shenzhen KanglibangTechnologyCo., Ltd.) was established on August 30,2019.
The factory is locatedin Sanming City, Fujian Province, covering an area of 20,000 square meters.Hanast is a silicone raw material company integrating R&D, production and sales mainly engaged in conventional silicone rubber, special silicone rubber,RTV adhesive sealant, two-component electronic potting adhesive, thermallyconductive silicone, thermally conductive silicone grease,lubricating silicone grease, damping silicone grease, platinum vulcanizing agent and other siliconeraw materials, the products comply with ROHS standard, obtain SGS, Food Gradecertification,and the enterprise passed IS09001.2015 certification.
Our products have obtained many national invention patents and utility model patents, andare widely used in silicone kitchenware,high temperature wire and cableindustrial silicon rollers, medical industry, baby products, sporting goods,adult products, new energy vehicles and other fields.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
HN-6607A/B
-
Type:
-
Potting Silicone Gel
-
Product name:
-
Potting Silicone Gel
-
Features:
-
good shock absorption, moisture resistance
-
Color:
-
Transparent
-
Appearance:
-
Liquid
-
Application:
-
Electronic ballasts, Power supplies, Relays and other devices, CPU,LED
-
Packing:
-
40KG per group
-
MOQ:
-
40kg
-
Delivery time:
-
5~7days
-
Shelf life:
-
6 months
-
Advantage:
-
.Repairability,Waterproof and moisture-proof
Quick Details
-
CAS No.:
-
112926-00-8
-
Place of Origin:
-
China
-
Brand Name:
-
Hanast
-
Model Number:
-
HN-6607A/B
-
Type:
-
Potting Silicone Gel
-
Product name:
-
Potting Silicone Gel
-
Features:
-
good shock absorption, moisture resistance
-
Color:
-
Transparent
-
Appearance:
-
Liquid
-
Application:
-
Electronic ballasts, Power supplies, Relays and other devices, CPU,LED
-
Packing:
-
40KG per group
-
MOQ:
-
40kg
-
Delivery time:
-
5~7days
-
Shelf life:
-
6 months
-
Advantage:
-
.Repairability,Waterproof and moisture-proof
.
Specification
|
Characteristics before curing
|
|
|
||
|
Component
|
Component A
|
Component B
|
||
|
Color
|
Transparent liquid
|
Transparent liquid
|
||
|
viscosity（cp s. 25℃)
|
800～2000
|
800～1800
|
||
|
Relative density（mpa•s）
|
1 ．0～1.12
|
0.98～1.02
|
||
|
The mixing ratio
|
A:B=1：1
|
|
||
|
Viscosity after mixing（cp s. 25℃)
|
800～1500
|
|
||
|
Operate Time （25℃)
|
2 h
|
|
||
|
Penetration (1/10mm)
|
200~ 400
|
|
||
|
Curing conditions (120℃)
|
20~30 mins
|
|
||
|
Cured properties
Hardness(Shore A, 24hr)
|
0～10
|
|
||
Product Description

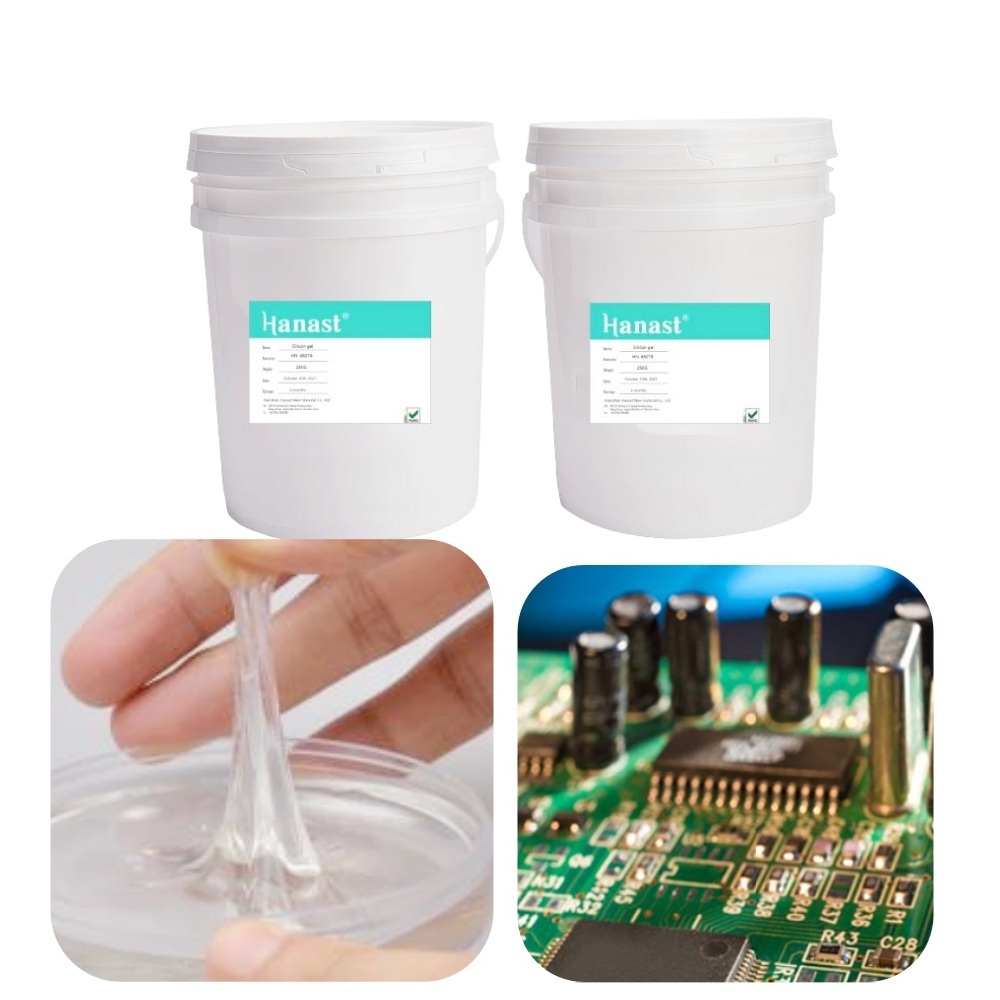

HN-6607A/B Two-Component Potting Silicone Gel
is a very soft, low cross-linking density addition potting silicone gel. It is a low viscosity liquid before vulcanization.
After vulcanization, in addition to the general characteristics of addition potting silicone gel, it has good shock absorption, moisture resistance and sealing due to its soft nature. properties and excellent dielectric insulation properties over a wide range of temperature and humidity.
CLIENT FEEDBACK
1.Good insulation
Good electrical and insulation properties, no corrosion to materials
2.Good sealing
After silicone gel potting, it has good sealing properties, does not expand or shrink, and does not damage electronic components.
3.Waterproof and moisture-proof
Improve the waterproof performance of the product and effectively improve the stability
4.Repairability
After curing, it is in a semi-solidified state. It effectively protects the product and is removable and repairable to reduce maintenance costs.
Good electrical and insulation properties, no corrosion to materials
2.Good sealing
After silicone gel potting, it has good sealing properties, does not expand or shrink, and does not damage electronic components.
3.Waterproof and moisture-proof
Improve the waterproof performance of the product and effectively improve the stability
4.Repairability
After curing, it is in a semi-solidified state. It effectively protects the product and is removable and repairable to reduce maintenance costs.
Main Feature
Product Features
1. Medium temperature curing, the curing time can be adjusted according to different temperatures;
2. It is low-viscosity silicone oil before curing and gel elastomer after curing.
1. Medium temperature curing, the curing time can be adjusted according to different temperatures;
2. It is low-viscosity silicone oil before curing and gel elastomer after curing.
Application
Application scope
It is used for waterproof, moisture-proof and gas pollution-proof coating of high-precision electronic appliances, IGBT modules,automotive electronics, smart water meters, sensors, etc., as well as for the pouring and potting of chest pads, silicone latex pads, shoulder pads, anti-slip pads, handicrafts, etc. Various solar street light optical lenses, sensors, and electronic modules provide excellent buffering and stress relief properties.
Product Usage
Instructions：
1. Before mixing, component A needs to be properly stirred manually or mechanically, and component B should be fully shaken in a sealed state before use.
2. When it needs to be attached to the application material, please confirm whether it can be attached before use, and then apply it.
2. When it needs to be attached to the application material, please confirm whether it can be attached before use, and then apply it.
3. Before construction, please weigh and mix according to the weight ratio of
A:B = 1:1, and stir thoroughly before applying glue.
