1.Wide Application:Applicable to both heat transfer printing and cotton cold transfer printing.
2.Pneumatic pressure, pressure can be flexibly controlled.
3.Reasonable structure: The integrated manufacture of feeding and outfeeding system,the parallel and accurate moving of paper and cloth, the machine occupies less space, saves labor.
4.Fabric/Transfer Paper/Tissue Paper Tension Controlled by Air Compressed
5.High pressure and high temperature could transfer all different patterns
6.Equipped with adjustable pneumatic pressure system, adjust the pressure according to different
- Product Details
- {{item.text}}
Quick Details
-
Dimensions(L*W*H):
-
249x185x136CM
-
Weight:
-
1020 KG
-
Keywords:
-
Rotary Heat Transfer Machine
-
Machine type:
-
Multifunctional Heat Transfer Machine
-
Heating Method:
-
Oil-based Heating Pipe
-
Function:
-
Roll Fabric
-
Feature:
-
Adjustable Thermostat
-
Color:
-
Customers' Demand
-
Application:
-
Fabric Heat Press Machine
-
Advantage:
-
Life Long Technical
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jiangchuan
-
Voltage:
-
220/380V
-
Dimensions(L*W*H):
-
249x185x136CM
-
Weight:
-
1020 KG
-
Keywords:
-
Rotary Heat Transfer Machine
-
Machine type:
-
Multifunctional Heat Transfer Machine
-
Heating Method:
-
Oil-based Heating Pipe
-
Function:
-
Roll Fabric
-
Feature:
-
Adjustable Thermostat
-
Color:
-
Customers' Demand
-
Application:
-
Fabric Heat Press Machine
-
Advantage:
-
Life Long Technical
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE
Product Overview
Factory Outlet

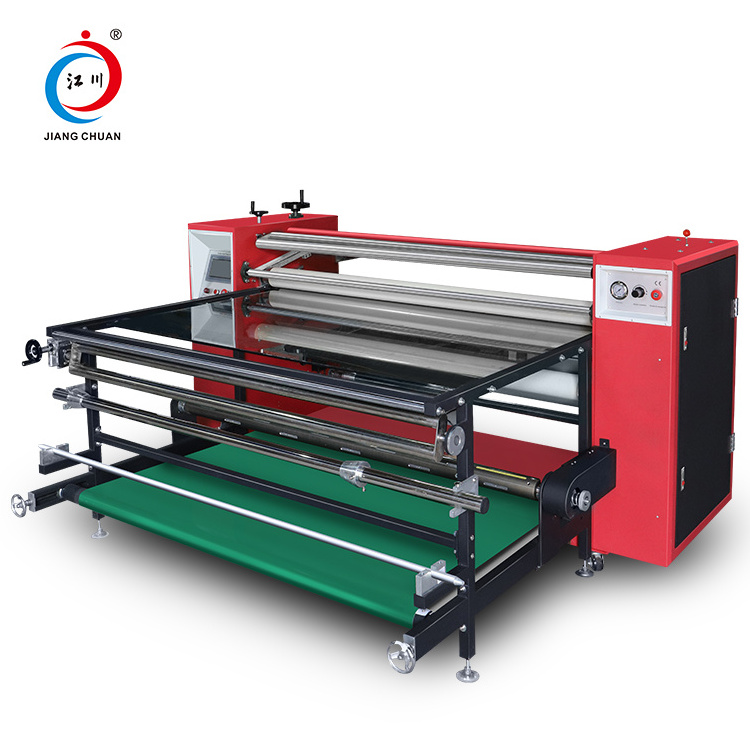

PLC Controller Small Drum Calender Sublimation Rotary Heat Transfer Press Machine
Automatic Calendar Sublimation Heat Transfer Press Printing Machine is suitable for transferring pattern to fabric from sublimation transfer paper. It is widely used to produce T-shirt, dye cloths, flag, banner etc all kinds material of fabric which need dye.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Brand Name
|
Jiangchuan
|
|
2
|
Printing/Roll Width
|
1700MM/67Inch
|
|
3
|
Roller diameter
|
210MM /8.27Inch
|
|
4
|
Voltage
|
220/380/420 Three-phase
|
|
5
|
Other Voltage
|
Custom voltage by your special order
|
|
6
|
Rated output
|
11KW
|
|
7
|
Speed
|
0-6M/Min
|
|
8
|
Weight
|
1020KG
|
|
9
|
Packing Dimensions
|
249x185x136CM
|
|
10
|
Feeding Method
|
Top feeding
|
|
11
|
Other Size
|
Available
|
|
12
|
Air Compressor Required
|
Required
|
|
13
|
Blanket Material
|
Nomex:High Temperature Resistance
|
|
14
|
Drum Surface
|
Chrome:High hardness and abrasion performance
|
|
15
|
Drum
|
Oil 100%
|
|
16
|
Temperature Range
|
0-399℃
|
|
17
|
Scope Of Delivery
|
Roller heat transfer machine,Power cable without plug,some electronic spare parts for free
|
|
18
|
Note
|
Custom size by your special order
|
|
|
|
Customized machine to work with different power supplier
|
|
19
|
Warranty
|
One Year
|
|
20
|
MOQ
|
One Set
|
|
21
|
Packing
|
Wooden Case
|
