- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
WFIT
-
Model Number:
-
TZ-225-X-G-GA05
-
Frequency:
-
demand
-
Nominal power:
-
30kw
-
peak power(KW):
-
60kw
-
Nominal speed (rpm):
-
3000
-
peak speed (rpm):
-
6000
-
peak torque(Nm):
-
240
-
Nominal torque(Nm):
-
96
-
effenciency:
-
95%
-
WEIGHT:
-
60kg
-
Size:
-
demand
-
Product Name:
-

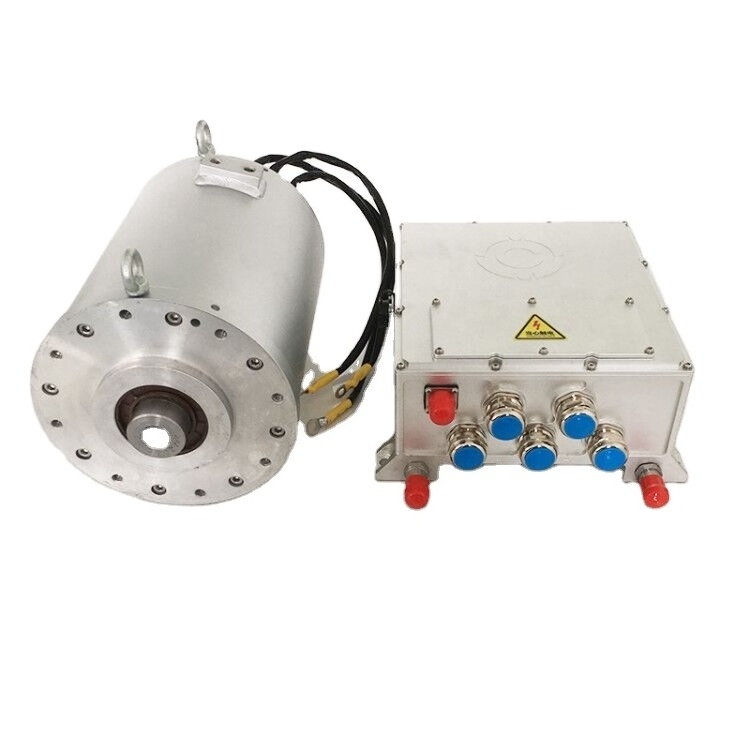

30/60KW PMSM motor and motor controller
Quick Details
-
AC Voltage:
-
200v-500v
-
Warranty:
-
6months
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WFIT
-
Model Number:
-
TZ-225-X-G-GA05
-
Frequency:
-
demand
-
Nominal power:
-
30kw
-
peak power(KW):
-
60kw
-
Nominal speed (rpm):
-
3000
-
peak speed (rpm):
-
6000
-
peak torque(Nm):
-
240
-
Nominal torque(Nm):
-
96
-
effenciency:
-
95%
-
WEIGHT:
-
60kg
-
Size:
-
demand
-
Product Name:
-
30/60KW PMSM motor and motor controller
Product Details
|
Motor
|
Motor controller
|
|
1.Continous/peak power(kw):30/60
|
1.DC battery voltage(v):336
|
|
2.Continous/peak torque(Nm):96/240
|
2.AC voltage(v):200-450
|
|
3.Continous/peak speed（rpm):3000/6000
|
3.Rated power(kw):55
|
|
4.DC bus range(v):220-450
|
4.Rated output current(A):210
|
|
5.Rated/peak current(A):110/275
|
5.Max output current (A):350
|
|
6.Peak efficiency:95%
|
6.Frequency(Hz):0-300
|
|
7.Cooling:water 50%+50%glycol
|
7.Cooling:water cooling
|
|
8.Diemension:Φ225*L300
|
|
Best-selling products
Remark：All motors can be adjusted within a certain range, we can provide 30KW-500KW motors, the scope of the motor: passenger cars,light trucks, heavy trucks, buses, boats.
If our existing products cannot meet your needs, we can also provide you with customized services.
Application
The motor is suitable for passenger cars around 1.5T.
Advantages: high torque, small weight, high efficiency and long life.
Cooperative display
A successful case of our company's participation in the design of a sightseeing bus for a domestic tourist attraction.
1
The picture shows that the engineer is designing the overall layout
2
Start the overall test
3
Overall installation effect
4
Start the test of the whole vehicle
Feedback
Factory live shot
Packing & Delivery
Packing Details :
Packing in standard export wooden case.
Delivery Details : 3-30 days after receipt of payment.
Delivery Details : 3-30 days after receipt of payment.
