- Product Details
- {{item.text}}
Quick Details
-
Dimensions(L*W*H):
-
1350*780*980mm
-
Weight:
-
98 KG
-
Ink Type:
-
Pigment ink
-
Keywords:
-
Clothing T-shirt printer machine
-
Brand:
-
XinFlying
-
Printing size:
-
600mm
-
Application:
-
Clothing T-shirt
-
Advantage:
-
Mass production/ low cost/ Colorful
-
Product name:
-
Digital Heat Press Machine
-
Printing Item:
-
PET Film
-
Showroom Location:
-
United States
Quick Details
-
Print Dimension:
-
60cm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XinFlying
-
Dimensions(L*W*H):
-
1350*780*980mm
-
Weight:
-
98 KG
-
Ink Type:
-
Pigment ink
-
Keywords:
-
Clothing T-shirt printer machine
-
Brand:
-
XinFlying
-
Printing size:
-
600mm
-
Application:
-
Clothing T-shirt
-
Advantage:
-
Mass production/ low cost/ Colorful
-
Product name:
-
Digital Heat Press Machine
-
Printing Item:
-
PET Film
-
Showroom Location:
-
United States
Working Process
Advantage:Good image quality,High precision,fast speed,Gorgeous gamut,Suitable for printing of many kinds of materials.
Details Images

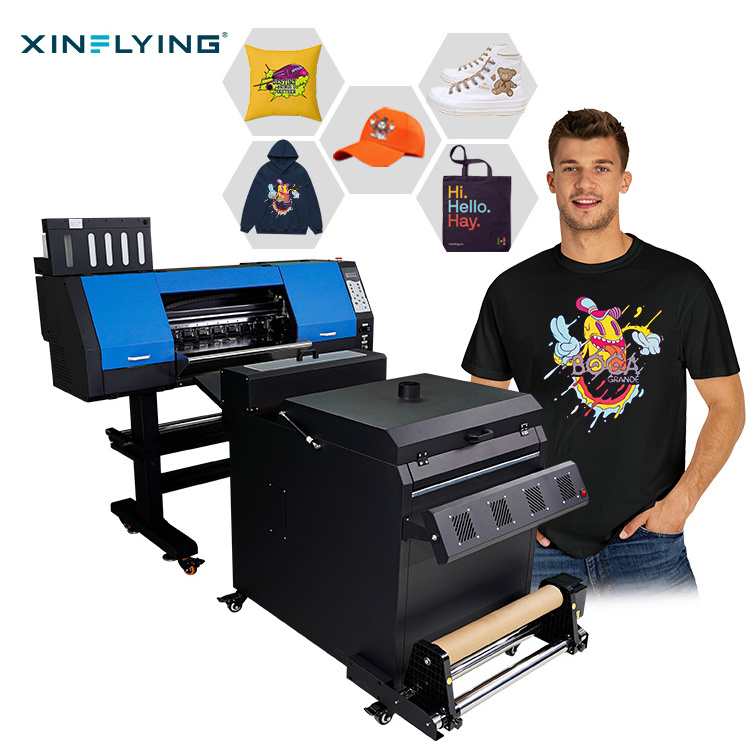

All-in-one machine for heat transfer and powder shaking:
1.Convenient, high efficiency and low cost: One-stop hollow printing, no cutting plotter, laminating machine, hollow machine, no waste discharge, time and labor saving.
2. Good effect: the pattern is soft to the touch, washable and stretchable, and the wet and dry fastness reaches level 4.
|
Product name
|
Digital heat press print machine
|
|
Model
|
E602
|
|
Nozzle number
|
2*EPi3200 ( 2 Epson 4720 )
|
|
Printing Width
|
0-600mm
|
|
Printing Speed
|
4pass:12-15sqm/h 6pass 8-10sqm/h
|
|
Powder
|
AC 110+/- 10%、AC 220+/- 10%、50/60HZ 16A
|
|
Printer Dimension
|
1900*820*1600mm
|
|
Weight
|
Net Weight: 200KG Gross Weight:250KG
|
|
Product name
|
Tunnel type Shaking and color fixing machine
|
|
Model
|
C600
|
|
Fan control
|
Shake powder control,dusting control,curing temperature PID setting
|
|
Applicable medium
|
Nylon,chemical fiber,cotton,leather,swimsuit,diving suit,PVC,EVA,etc.
|
|
Rewinding function
|
Automatic induction winding
|
|
Material delivery method
|
Normal transmiesion
|
|
Heating and drying function
|
Far infrared carbon fiber heat tube heating
|
|
Powder
|
AC 220V、50/60HZ 、15A、3.2kw
|
|
Retractable media width
|
0-600mm
|
|
Dimension
|
1350*780*980mm
|
|
Weight
|
Net Weight: 98KG Gross Weight:148KG
|
New scheme / Save labor / Save cost
1.solution for white heat transfer, which is a subversive clothing heat transfer application process.
2.It solves the problem that the direct-jet printing process is picky on the fabricand the new heat transfer process does not limit the material transfer.
3.Don't worry about color difference and fastness, the pattern is what you see is what you get.
4.There is no need to engrave and discharge waste and film, which effectively improves production efficiency, does not limit patterns, and is naturally hollowed out and thinner and breathable.
5.Short cycle and fast delivery time, breaking through the limitation of traditional process color printing plate making, digital output does not need plate making.
6.High cost performance, no need for high investment in equipment and space greatly reducing investment costs.
2.It solves the problem that the direct-jet printing process is picky on the fabricand the new heat transfer process does not limit the material transfer.
3.Don't worry about color difference and fastness, the pattern is what you see is what you get.
4.There is no need to engrave and discharge waste and film, which effectively improves production efficiency, does not limit patterns, and is naturally hollowed out and thinner and breathable.
5.Short cycle and fast delivery time, breaking through the limitation of traditional process color printing plate making, digital output does not need plate making.
6.High cost performance, no need for high investment in equipment and space greatly reducing investment costs.
