Quick Details
-
Application:
-
Marine Lifesaving
-
Material:
-
Hypalon
-
Cylinder:
-
CO2 Cylinder
-
Buoyancy:
-
for 4T,5T,7T etc. work boat
-
Color:
-
Orange
-
Components:
-
Air bag, CO2 cylinder, release valve,connect pipe
-
Suitable for:
-
Rescue Boat, Lifeboat, Work Boat, Patrol boat and other Luxury Boat
-
Customized Service:
-
Acceptable
Quick Details
-
Place of Origin:
-
Beijing, China
-
Type:
-
Self Righting System
-
Product Name:
-
Self Righting Airbag
-
Application:
-
Marine Lifesaving
-
Material:
-
Hypalon
-
Cylinder:
-
CO2 Cylinder
-
Buoyancy:
-
for 4T,5T,7T etc. work boat
-
Color:
-
Orange
-
Components:
-
Air bag, CO2 cylinder, release valve,connect pipe
-
Suitable for:
-
Rescue Boat, Lifeboat, Work Boat, Patrol boat and other Luxury Boat
-
Customized Service:
-
Acceptable
Product Description

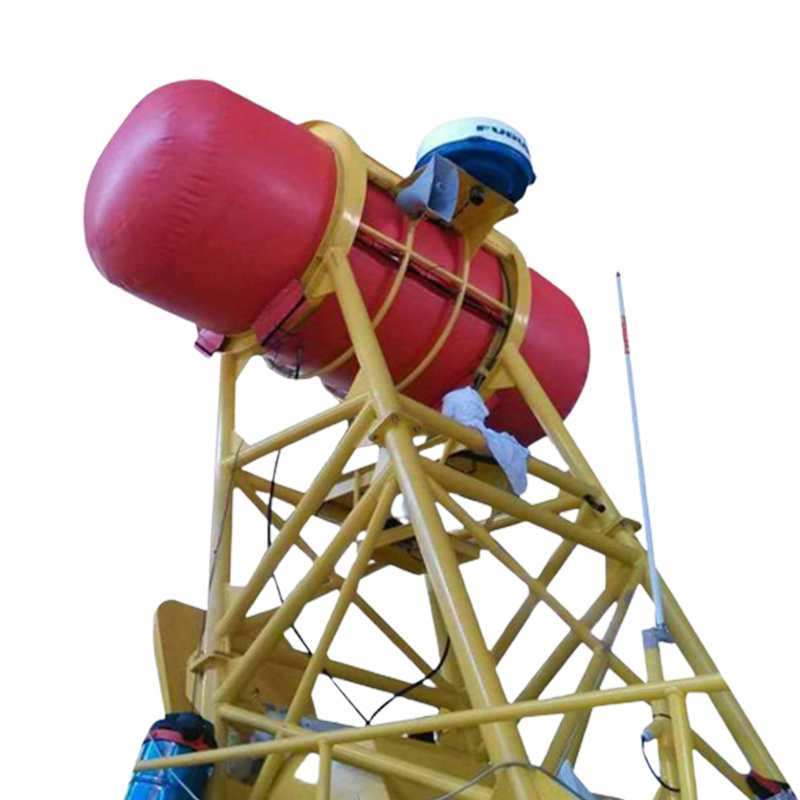

The Self-righting Airbag
The Description of the Self-righting Airbag
The self-righting system or airbag is designed
to right the boat when it capsizes. When the
boat capsizes, the airbag will be automatically inflated by the 2 sets CO2 cylinders, which will generate huge buoyancy and straighten the boat in several minutes.Then the passengers can be rescued in short time. The self-righting system includes the airbag, CO2 cylinder, connect pipe, release valve,hand ring, self-acting controller etc. It's made of Hypalon material which is
used in the construction of the collars, to ensure maximum durability and strength in any condition.
Features:
1.The self-righting system mainly includes
airbag, CO2 cylinder, connect pipe, release valve,hand ring, self-acting controller.
2.
The base material is
polyester 1000 deniers (1100 dtex) and
polyester 1500 deniers (1650 dtex). The c
oating usually take
CSM or CR.
Our material is complied with international standard ISO-9001 certification.
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
Type
|
Self-righting System
|
|
Product Name
|
Self-righting Airbag
|
|
Material
|
Hypalon
|
|
Cylinder
|
CO2 Cylinder
|
|
Thickness
|
1.25±0.05mm
|
|
Standard
|
ISO-9001
|
|
Tear Strength
|
≥20/22 daN
|
|
Tensile Strength
|
≥460/460 daN/5cm
|
|
Low Temperature Resistance
|
≤-30℃
|
|
Heat Aging
|
Hold Rate≥80%
|
|
Application
|
Lifeboat, Rescue Boat, Work Boat etc.
|
|
Customized Service
|
Acceptable
|
