Quick Details
-
Cutting Area:
-
1500*1000mm
-
Cutting Thickness:
-
0-50mm
-
Control Software:
-
AutoCAD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RUIZHOU
-
Weight (KG):
-
757 KG
-
Cutting thickness:
-
0-25mm ( customized cutting machine can up to 50mm)
-
Method of fixing material:
-
Divisional vacuum absorption
-
Knife:
-
Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel
-
Pen type:
-
signing pen, Oil pen, ball-point pen, Silver pen
-
Machine resolution:
-
0.01mm
-
Software resolution:
-
0.025mm
-
Voltage:
-
220V/380V
-
Power(W):
-
5.5kw
-
Dimension(L*W*H):
-
2144*1644*1288mm
Quick Details
-
Laser Type:
-
Other
-
Cutting Speed:
-
0-1200mm/s
-
Cooling Mode:
-
Other
-
Cutting Area:
-
1500*1000mm
-
Cutting Thickness:
-
0-50mm
-
Control Software:
-
AutoCAD
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RUIZHOU
-
Weight (KG):
-
757 KG
-
Cutting thickness:
-
0-25mm ( customized cutting machine can up to 50mm)
-
Method of fixing material:
-
Divisional vacuum absorption
-
Knife:
-
Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel
-
Pen type:
-
signing pen, Oil pen, ball-point pen, Silver pen
-
Machine resolution:
-
0.01mm
-
Software resolution:
-
0.025mm
-
Voltage:
-
220V/380V
-
Power(W):
-
5.5kw
-
Dimension(L*W*H):
-
2144*1644*1288mm

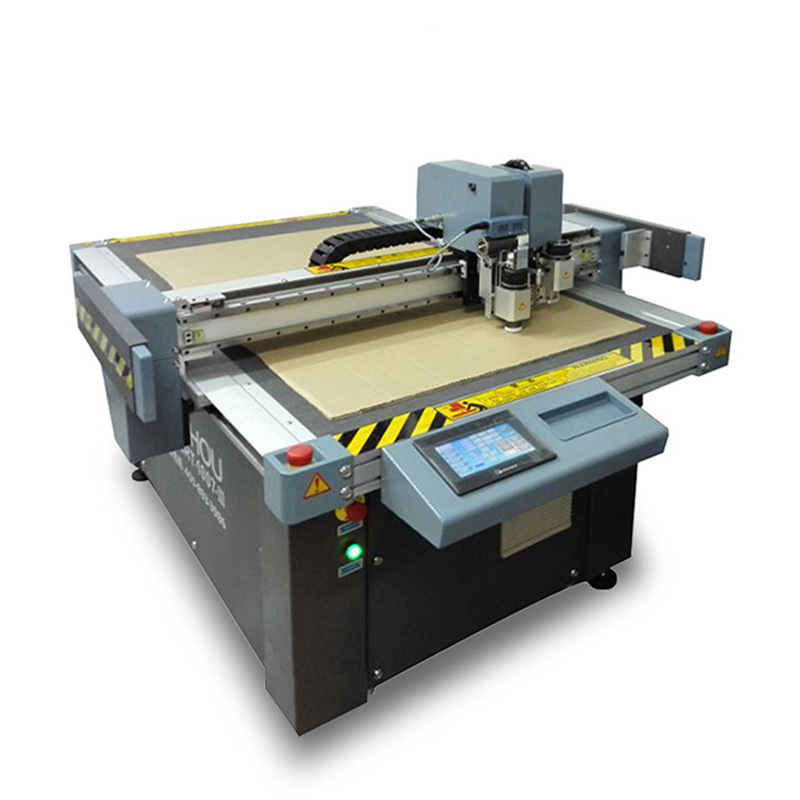

Affordable CNC Automatic honeycomb board cutting machine
P roducts description for CNC paper cutting machine
RUIZHOU RZCRT5-1007E CNC cutting machine are specialized in paper cutting, such as honeycomb board, cardboard, corrugated board, grey board, KT board or other soft materials, such as cloth, car mats, PVC, PU or others.
On the basic of different requirements of clients, RZCRT5-1007E can be equipped with multi-functional combined cutting tools, CCD positioning system, advanced frequency converter and some other or devices components with good quality. It is easy for users to operate. And more often, RZCRT5-1007E CNC cutting machines are suitable for samples cutt ing in offices, schools or research institute s because of its’ small size.
Parameters of Cardboard Cutting machine RZCRT5- 1007 E
|
Model of cutting machine |
RZCRT5-1007E |
|
Effective working area |
1000mm×700mm |
|
Cutting speed |
0-1200mm/s |
|
Cutting thickness |
0-25mm ( customized cutting machine can up to 50mm) |
|
Our Advantag es |
1.A whole piece aluminum platform
2.Welding stable machine structure
4.Safety device
|
|
Applicable Cutting thickness |
0-25mm ( customized cutting machine can up to 50mm) |
|
Method of fixing material |
Divisional vacuum absorption |
|
Knife |
Oscillating blade head, Milling Cutter, Hobbing Cutter, Creasing Wheel |
|
Pen type |
Common signing pen, Oil pen, ball-point pen, Silver pen |
|
Human Machine Interface (HMI) |
Touch screen LCD |
|
Machine resolution |
0.01mm |
|
Software resolution |
0.025mm |
|
Interface of transmission |
Network port |
| Command system | HP-GL and GP-GL compatible formats |
| Gearing | Linear guide and gear rack |
|
Motor |
Servo motor |
|
Machine Working Voltage |
220V |
|
Air pump power |
5.5KW |
|
Energy saving device |
Frequency converter |
| Safety device | Automatic laser device |
|
Software system |
Independent research and development CNC software |
|
Control system |
Cutting table and computer display |
Tools and its functions of RZCRT5-1007E
Cutting samples of RZCRT5-1007E
Six advantages of RZCRT5-1510E
Packaging of Our cutting machines
The cutting machines are packaged with standard export wooden case which can guarantee your machine safety.
