- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Parking Lot, Car Washing, Cold Storage
-
Color Temperature(CCT):
-
2700-6500K
-
Input Voltage(V):
-
AC100-277V
-
Product Weight（kg）:
-
3
-
Model Number:
-
SE-4T40W-M
-
IP Rate:
-
IP66
-
IK Rate:
-
IK10
-
Flicker Free:
-
Yes
-
Dimmable:
-
0~10V DALI
-
Power:
-
20W;30W;40W;50W
-
Size(FT):
-
1500*45*49mm
-
Features:
-
IP66 Water-proof
-
Keyword:
-
Triproof LED Light
-
Certification:
-
CE ROHs SAA ETL DLC
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Warranty(Year):
-
5 Year
-
Type:
-
LED Tri-Proof Light
-
Application:
-
Parking Lot, Car Washing, Cold Storage
-
Color Temperature(CCT):
-
2700-6500K
-
Input Voltage(V):
-
AC100-277V
-
Product Weight（kg）:
-
3
-
Model Number:
-
SE-4T40W-M
-
IP Rate:
-
IP66
-
IK Rate:
-
IK10
-
Flicker Free:
-
Yes
-
Dimmable:
-
0~10V DALI
-
Power:
-
20W;30W;40W;50W
-
Size(FT):
-
1500*45*49mm
-
Features:
-
IP66 Water-proof
-
Keyword:
-
Triproof LED Light
-
Certification:
-
CE ROHs SAA ETL DLC
Product Paramenters
|
Part No.
|
SE-2T20W-M
|
SE-4T20W-M
|
SE-4T30W-M
|
SE-4T40W-M
|
SE-5T50W-M
|
||||
|
Power
|
20W
|
20W
|
30W
|
40W
|
50W
|
||||
|
Size/mm
|
600*45*49
|
1200*45*49
|
1200*45*49
|
1200*45*49
|
1500*45*49
|
||||
|
Luminous (LM)
|
2600LM
|
2600LM
|
3900LM
|
5200LM
|
6500LM
|
||||
|
Efficacy (Lm/W)
|
130lm/W
|
|
|
|
|
||||
|
Input Voltage
|
AC220~240V AC100-277V
|
|
|
|
|
||||
|
IP Grade
|
IP66
|
|
|
|
|
||||
|
Warranty
|
5 Years
|
|
|
|
|
||||
|
LED
|
2835 SMD
|
|
|
|
|
||||
|
Driver
|
LiFud, Passed TUV
|
|
|
|
|
||||
|
Function
|
ON-OFF/ Flicker Free / 0-10V Dimmable / DALI Dimmable / Linkable
|
|
|
|
|
||||
|
Power Factor (PF)
|
≥0.95
|
|
|
|
|
||||
|
Beam Angle
|
120°
|
|
|
|
|
||||
|
CRI(Ra)
|
Ra＞80 / 90
|
|
|
|
|
||||
|
Lifespan(hrs)@25℃
|
50,000H
|
|
|
|
|
||||
|
Ambient Temp. (℃)
|
-20~+50℃
|
|
|
|
|
||||
|
Storage Temp. (℃)
|
-40~+85℃
|
|
|
|
|
||||
|
Key Material
|
Aluminum Housing +PC Cover
|
|
|
|
|
||||
|
CCT Range
|
3000K / 4000K / 5000K / 6000K
|
|
|
|
|
||||
Product Description

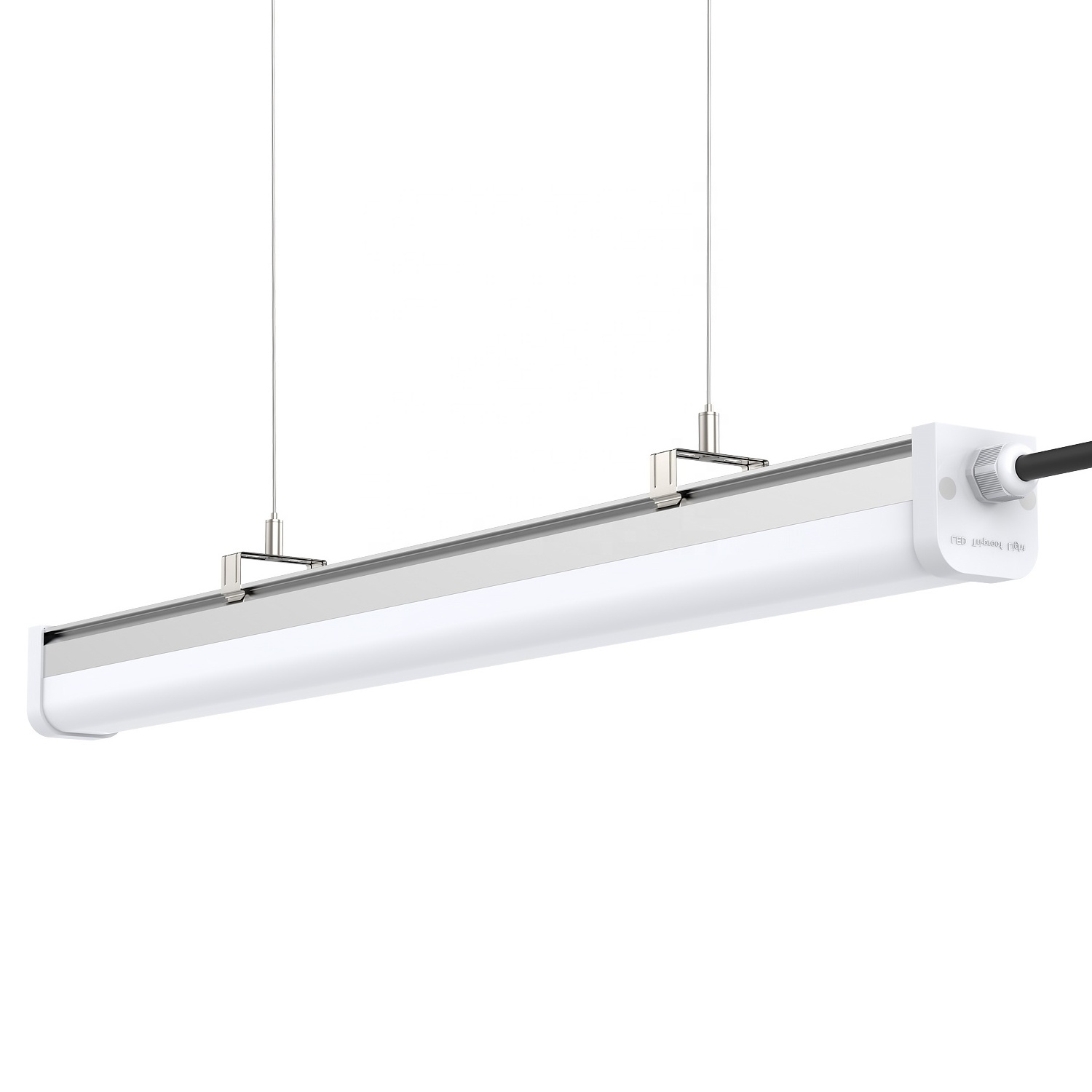

IP66 Waterproof Mini LED Tri-Proof Light Fixture is SE.Lighting's advantage products, which with 5 years Warranty. The IP66 Waterproof Mini LED Tri-Proof Light Fixture adopts aluminum housing, low temperature and good heat dissipation, with outstanding durability and stability. LED Tri-Proof Light Fixture with high brightness efficiency and low light decay, excellent energy saving. Different lengths and different wattage available.
We provide good quality and reasonable price
LED Tri-Proof Light Fixture
to many customers around the world. If you are looking for Warehouse Lighting, Car Parking Lighting, Metro Station Lighting, Parking Lot Lighting, our
IP66 Waterproof LED Tri-Proof Light Fixture
is your best choice.
Detailed Images
Test Report
Application
IP66 Waterproof
LED Tri-Proof Light Fixture
can be widely used in Public Lighting, Commercial Lighting and Industrial Lighting. Like Metro Station Lighting, Train Stations Lighting, Bus Stations Lighting, Airports Lighting, Tunnels Lighting, Corridor Lighting, Supermarkets Lighting, Car Parks Lighting, Stairwells Lighting, Service Centre Lighting, Gallery Lighting, Horse Farm Lighting, Swimming Pool Lighting, Factories Lighting, Warehouses Lighting, Workshop Lighting, Exhibition Hall Lighting, etc.
Product packaging
Aging Test
Installation Instructions
