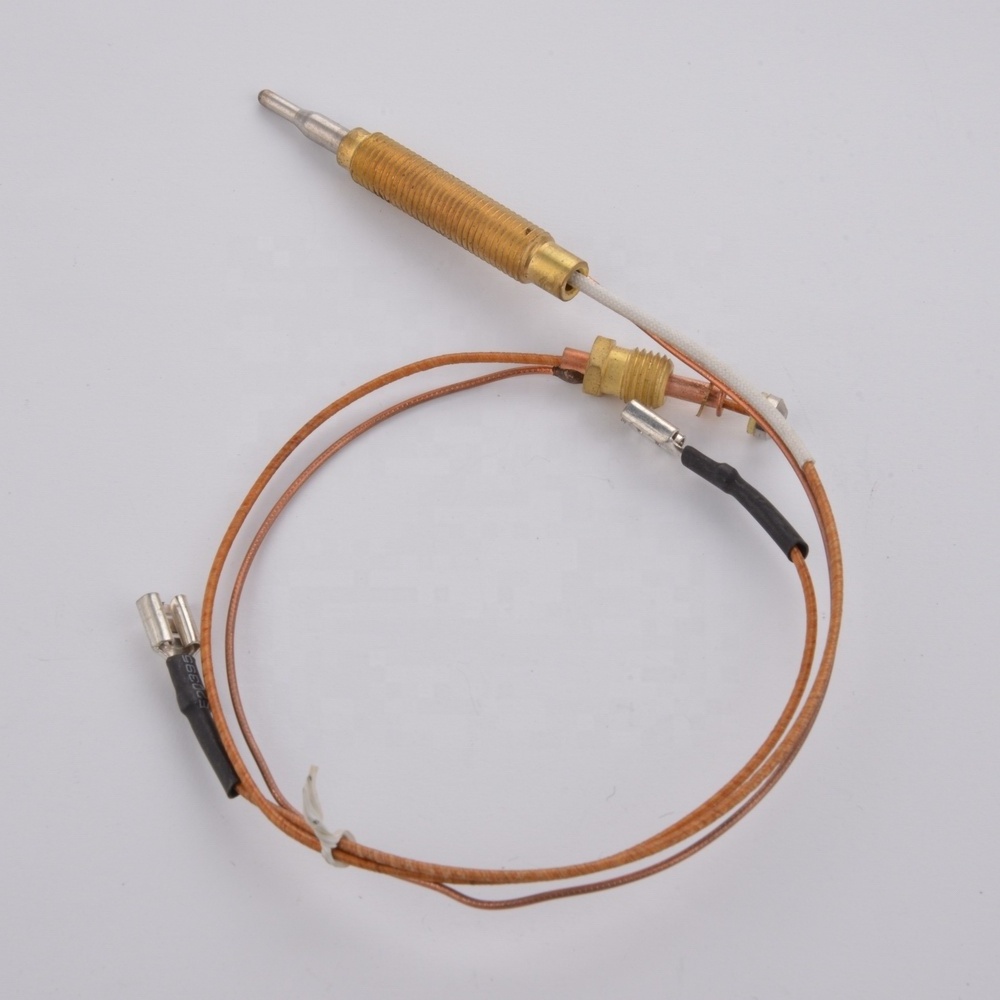

Gas burner/BBQ/stove thermocouple wire/connector

Gas burner/BBQ/stove thermocouple wire/connector

Our company manufactures thermocouple for many years.

Thermocouple and magnet valve compose a flameout safety protector which widely used in gas

appliance, such as gas cooker, gas oven, gas stove, gas heater and so on.

There are different styles and sizes. We also can make according to drawings and requests of

customers.

Working principle:

Thermocouple and magnetic valve compose gas safety protection devices, thermocouple is a

transducer can provide the power, magnetic valve is a controller.

W hen thermocouple tips is heated by fire, cold and heat generate thermoelectric power due to

temperature difference, to form closed loop current and make magnetic valve actuation , opening

gas path.

W hen the flame is out owing to unexpected reasons , thermocouple rapidly lose potential, magnet

valve lo se suction under the action of spring , so close gas path, and play a safety protection role.
