Quick Details
-
Brand Name:
-
Weyeal
-
Model Number:
-
CEMS1300
-
Product Name:
-
CEMS1300 Continuous Monitoring System for Flue Gas Emission
-
Size:
-
930*730*2010mm
-
Weight:
-
175KGS
-
Measure Method:
-
Differential Absorption Spectroscopy
-
Usage:
-
Environmental Monitoring
-
Detecting Gas:
-
SO2 , NOX ,O2 ,CO, CO2 , HCL
-
Application:
-
Waste incineration plants, Cement plants, Steel plants
Quick Details
-
Type:
-
Continuous Monitoring System for Flue Gas Emission
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Weyeal
-
Model Number:
-
CEMS1300
-
Product Name:
-
CEMS1300 Continuous Monitoring System for Flue Gas Emission
-
Size:
-
930*730*2010mm
-
Weight:
-
175KGS
-
Measure Method:
-
Differential Absorption Spectroscopy
-
Usage:
-
Environmental Monitoring
-
Detecting Gas:
-
SO2 , NOX ,O2 ,CO, CO2 , HCL
-
Application:
-
Waste incineration plants, Cement plants, Steel plants
Product Description

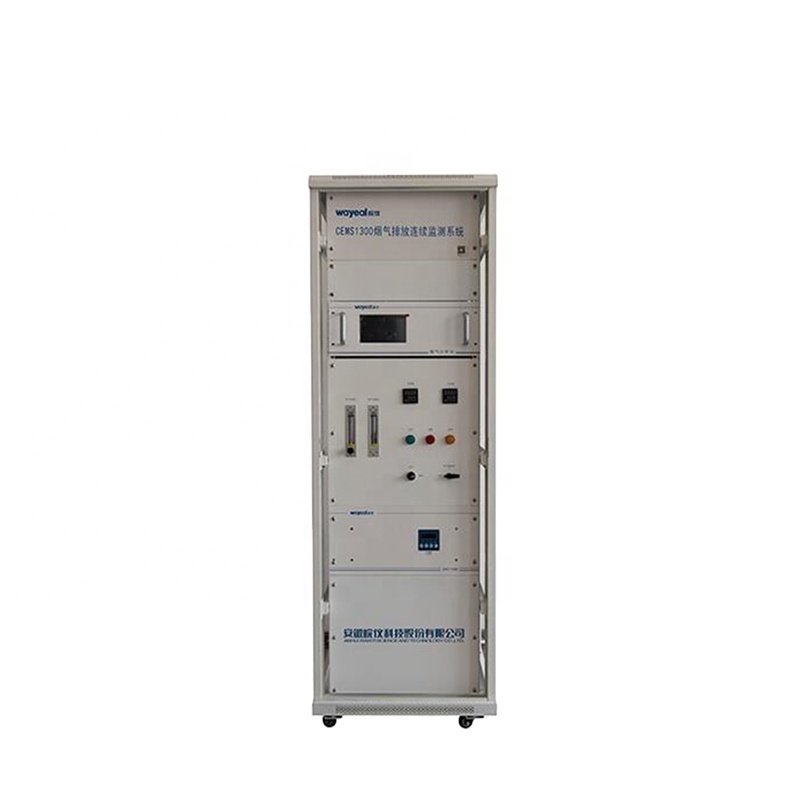

Online Flue Gas Flow Rate and Humidity Analyzer CEMS Continuous Flue Gas Emission Monitoring System
The system consists of gaseous pollutant monitoring subsystem, particulate matter monitoring subsystem, flue gas parameter monitoring subsystem and data acquisition and processing subsystem, which can continuously monitor SO2, NOX, O2, CO, CO2, HCl, soot (particulate matter) concentration, flue gas flow rate, flue gas pressure, flue gas humidity and many other related parameters and statistical emission rate, total emission, etc.
It has the functions of real-time on-site data transmission, remote fault diagnosis, report statistics and graphical data analysis, realizing the unattended work site. The whole system has a simple structure, wide dynamic range, strong real-time, flexible networking and low operating cost, while the system adopts a modular structure, which is easy to combine and can be configured according to customer needs; and it can communicate with the enterprise's internal DCS and the data system of the environmental protection department.
Product Performance
1.
High reliability
Gas analyzer with a pulsed xenon lamp light source with a lifetime of up to 10 years.
Gas analyzer adopts grating spectroscopy and array sensor, no moving parts, high reliability; Dust monitor adopts integrated design, compact structure, high reliability.
2.
Easy maintenance and low maintenance costs
The sampling signal is gathered and connected to the host computer through a hub, which makes the system wiring simple and easy to install and maintain.
Fiber optic connections between the light source, gas chamber, and spectrometer in the gas analyzer make each component simple and low-cost to maintain and replace.
3.
High measurement accuracy
Gas analysis by differential absorption spectroscopy
Effectively solve the influence of water, dust and other factors on measurement accuracy
The dust meter adopts the principle of in situ laser post scattering, which has high monitoring sensitivity, fast response speed, built-in self-correction function, accurate measurement and good stability.
System Configuration
◎ Sampling and pre-processing system
◎ SG1200 UV Differential Spectroscopy Gas Analyzer
◎ NCF1080 NO-NO converter
◎ LG1100 Laser gas analyzer
◎ SG1200 UV Differential Spectroscopy Gas Analyzer
◎ NCF1080 NO-NO converter
◎ LG1100 Laser gas analyzer
◎ HMT1000 Hygrometer
◎ LD1000 particulate matter monitor
LPT1100 Flue gas parameter monitor
◎ Data acquisition and processing subsystem
◎ LD1000 particulate matter monitor
LPT1100 Flue gas parameter monitor
◎ Data acquisition and processing subsystem
Product Application
Waste incineration plants, cement plants, steel plants
Specification
|
Product Size
|
930×730×2010mm
|
|
Weight
|
175KG
|
|
Measurement Method
|
Differential Absorption Spectroscopy
|
|
Application
|
Waste incineration plants, cement plants, steel plants
|
|
Detecting Gas
|
SO2, NOX, O2, CO, CO2, HCl
|
