Quick Details
-
Application:
-
FTTH FTTB FTTX Network
-
Item:
-
GPON OLT Class C+ SFP 20KM SC
-
Data-rate:
-
2.5G/1.25G
-
Power supply:
-
+3.3V
-
Supply Ability:
-
50,000pcs/month
-
Connector Type:
-
SC
-
Operating case temperature:
-
0 to 70 degree
-
Warranty:
-
365 days
Quick Details
-
Place of Origin:
-
China
-
Wavelength:
-
Tx1490nm/Rx1310nm
-
Transmission distance:
-
20km
-
Application:
-
FTTH FTTB FTTX Network
-
Item:
-
GPON OLT Class C+ SFP 20KM SC
-
Data-rate:
-
2.5G/1.25G
-
Power supply:
-
+3.3V
-
Supply Ability:
-
50,000pcs/month
-
Connector Type:
-
SC
-
Operating case temperature:
-
0 to 70 degree
-
Warranty:
-
365 days

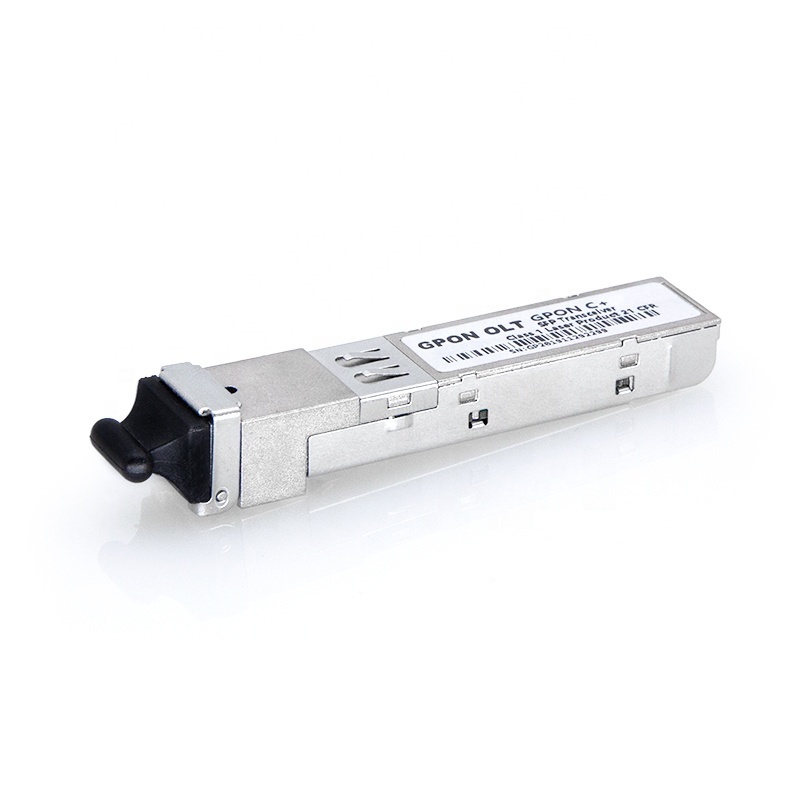

SFP module GPON OLT C+ C++ C+++ 2.5G 20km GPON SFP
Introduction:
-
The C+ SFP transceiver is the high performance module for single fiber by using 1490nm continuous-mode transmitter and 1310nm burst-mode receiver.
Features:
1. Single Fiber Transceiver with single mode SC receptacle
2. 1490nm continuous-mode transmitter with DFB laser
3. 1310nm burst-mode receiver with APD-TIA
4. Single 3.3V power supply
5. Reset burst-mode receiver design
6. Burst mode signal detect output which is LVTTL compatible.
7. Burst mode received signal strength indication (RSSI) output
8. 20Km Reach 28dB link budget
9. Complies with huawei,zte,fiberhome,bdcom OLTs
10. Operating case temperature: Standard : 0 to +70°C
Technical parameters:
|
Technical item |
Specification |
|
GPON SFP C+ |
2.5Gbps/1.25Gbps, Class C+, 0ºC ~ +70ºC With Digital Diagnostic Monitoring |
|
Wavelength |
Tx1310nm, Rx 1490nm |
Application:
- Gigabit Passive Optical Networks (G-PON) – OLT side
