Quick Details
-
Product name:
-

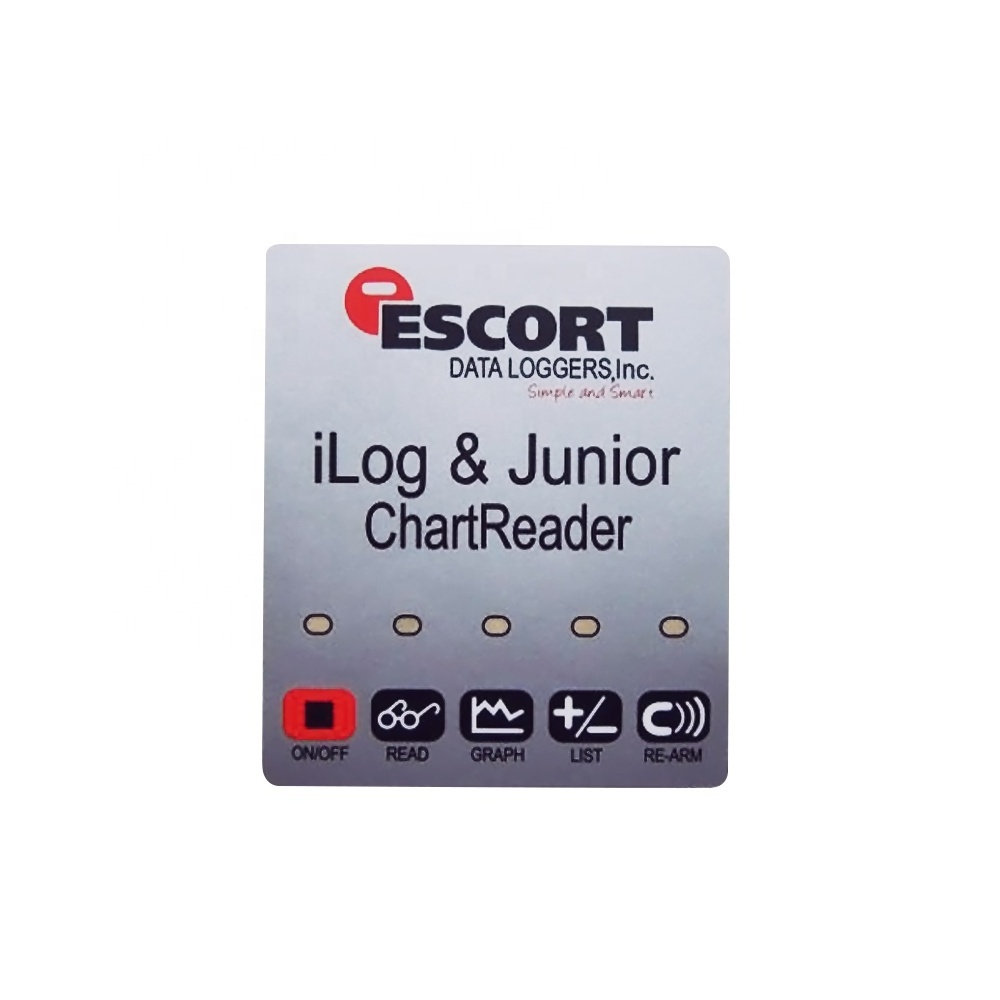

Control Buttons Membrane Keyboards
-
MOQ:
-
500 PCS
-
Graphic Overlay:
-
Sticker Printing Graphic Overlay
-
Keyword:
-
Gateron Switch Puller
-
Certification:
-
ISO9001:2008
-
Feature:
-
Waterproof
-
Printing:
-
Silkscreen Printing
-
Color:
-
Customized Color
-
Circuit:
-
Printing Silver Ink
-
Thickness:
-
Custom Thickness
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
custom
-
Model Number:
-
JT020
-
Product name:
-
Control Buttons Membrane Keyboards
-
MOQ:
-
500 PCS
-
Graphic Overlay:
-
Sticker Printing Graphic Overlay
-
Keyword:
-
Gateron Switch Puller
-
Certification:
-
ISO9001:2008
-
Feature:
-
Waterproof
-
Printing:
-
Silkscreen Printing
-
Color:
-
Customized Color
-
Circuit:
-
Printing Silver Ink
-
Thickness:
-
Custom Thickness
Products Description
|
product
|
Thin film switch
|
|
|
Product structure
|
Base material +Spacer+Upper circuit layer+Spacer+down circuit layer+Adhesive
|
|
|
Electronic characteristics
|
|
|
|
Circuit rating
|
35V(DC),100mA,1 W
|
|
|
Contact resistance
|
10Ω - 500Ω( According to the trace length and materials to confirm)
|
|
|
Insulation nresistance
|
>100MΩ 250V(DC)
|
|
|
Contact bouce
|
≤5ms
|
|
|
Dielectric withstand voltage
|
250VRms(50 - 60Hz/1 min)
|
|
|
Mechanical Properties
|
|
|
|
Responsiblity Working life
|
flat type≥500 million times;
|
|
|
|
Tactile type:≥100million times.
|
|
|
Operating pressure
|
Flat type 57-284g(2-10 OZ);
|
|
|
|
Tactile type 170-397g(6-14 Oz).
|
|
|
Switch stroke
|
flat tyep 0.1-0.5mm;
|
|
|
|
Tactile type: 0.6-1.5mm
|
|
|
Environment parameters
|
|
|
|
Operating Temperature
|
-30°C - +85°C
|
|
|
Humidity
|
40°C,90%-95%,240H
|
|
