- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V, 380V
-
Power:
-
1.1kw, 1.1KW
-
Weight:
-
190 KG
-
Dimension(L*W*H):
-
1.7*0.8*1.4m
-
Year:
-
2021.5
-
Name:
-
Onion peel and cutting machine
-
Air pressure:
-
1.0mpa
-
Material:
-
304SS
-
Feature:
-
patent machine, no damage to onions
-
Capacity:
-
200-300kg/h
-
Usage:
-
process onion by peeling skin and remove end tail
-
MOQ:
-
1 Set
-
Package:
-
Standard Wooden Case
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
hanchuang
-
Type:
-
onion peeler, cutter
-
Voltage:
-
380V, 380V
-
Power:
-
1.1kw, 1.1KW
-
Weight:
-
190 KG
-
Dimension(L*W*H):
-
1.7*0.8*1.4m
-
Year:
-
2021.5
-
Name:
-
Onion peel and cutting machine
-
Air pressure:
-
1.0mpa
-
Material:
-
304SS
-
Feature:
-
patent machine, no damage to onions
-
Capacity:
-
200-300kg/h
-
Usage:
-
process onion by peeling skin and remove end tail
-
MOQ:
-
1 Set
-
Package:
-
Standard Wooden Case
onion roots cutting machine also onion tail cutter and peeling machine +8618737189043

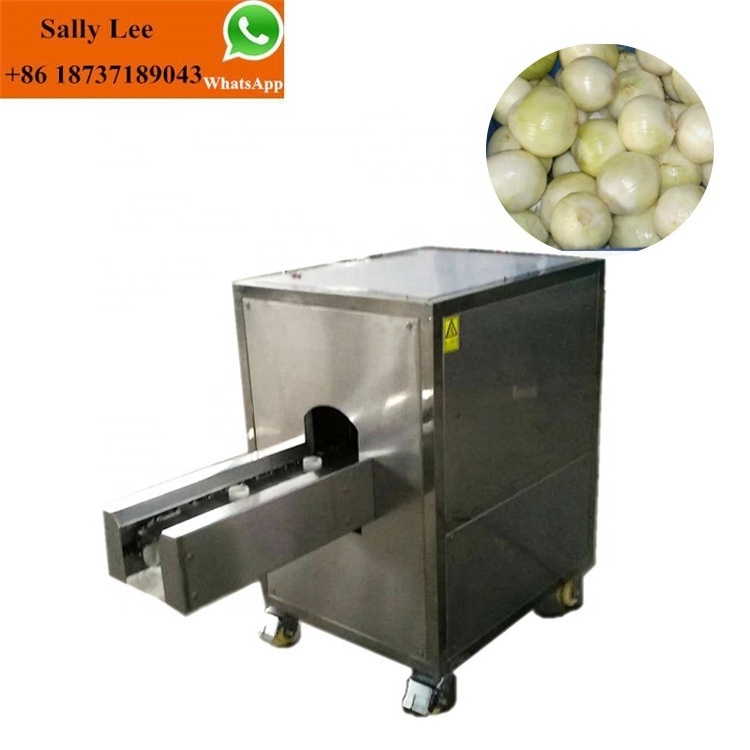

Introduction of onion peeler and cutter
The onion peeling machine simulates the movement of artificial hands to peel onions in all directions, and realizes the technology of onion peeling and root cutting without damage at high speed. The design of the machine is ingenious and novel, and the action is coherent and continuous. It cuts the roots and peels the onions during the non-stop conveying process.
Parameters of onion peeler and cutter
|
Model |
HC-SQY-YBM |
|
Name |
Onion cutting tail and peeling machine |
|
Voltage |
380V/50hz |
|
Power |
1.1kw |
|
Capacity |
200-300kg/h |
|
Weight |
190kg |
|
Machine size |
1.7*0.8*1.4m |
|
Equipped air compressor |
15kw screw air compressor, displacement of 2.0 cubic meters per minute, discharge pressure of 1.0Mpa, The volume of the gas storage tank is 1000 liters, the working pressure is 1.0Mpa (note: the air compressor need charge extraly or customer buy on their local) |
Machine features:
Manual placement and automatic root cutting and peeling mode are adopted. The operator will place the onion on the running conveyor belt, and the equipment will automatically cut the onion root, tail and peel. The size of root cutting and the number of peeling layers can be adjusted, and the processed onion is exported by the finished product conveyor belt. The machine is easy to operate and easy to use. The onion is cut flat tail and concave cut root. Suit for 3-5cm diameter range and flat onions.
Packaging & Shipping
1. Testing Machine before package
2. Package : Inside plastic bag, outside wooden case.
3. Shipping: By sea, By air.
By sea: if customer not urgently the machine, we advice by sea, even though by sea took time is long, but by sea reduce much money about the freight, and it is good for customer if the machine is heavy and big size.
By air: it is faster than by sea, but its freight is higher much than by sea, so this kind of type always suggest for light, small size and urgently demand machine.
Pre-sale service
1.Related machines’s technical parameter will be supplied to customer.
2.According to customer’s factory size, factory layout can be provided in advance.
3. According to customer’s material cost, general formulation can be prepared well.
4.Special machine can be supplied as customer’s request.
5.Professional Advice about Market, machines, processing , materials, packing can be supplied
6. Suggesting professional ship agent or helping book ship as customer request.
After sale service :
1.Allocation chart as the buyer’s request will be supplied.
2.Operation manual will be supplied after shipment.
3.One year warrantee, life time maintenance with cost price.
4.Free easy broken spare parts will be sent with container .
5.First installation can be done by engineer.
6.Training workers in customer’s factory.
