Quick Details
-
Type:
-
insulating rod, PE rod
-
Rated Voltage:
-
10kv
-
Tensile Strength:
-
78MPa
-
Color:
-
as requested
-
Packaging Detail:
-
Products covered by carton and PE membrane
-
Certification:
-
ISO9001:2000 ,CE/ROHS
-
Supply Ability:
-
500 Ton/Tons per Month
-
Payment Terms:
-
L/C,T/T,Western Union
-
Port:
-
Ningbo/Shanghai
-
Specification:
-
Mechanical and electrical applications
-
Model:
-
PE
-
Brand:
-
Haodesheng
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Haodesheng
-
Model Number:
-
insulating rod
-
Type:
-
insulating rod, PE rod
-
Rated Voltage:
-
10kv
-
Tensile Strength:
-
78MPa
-
Color:
-
as requested
-
Packaging Detail:
-
Products covered by carton and PE membrane
-
Certification:
-
ISO9001:2000 ,CE/ROHS
-
Supply Ability:
-
500 Ton/Tons per Month
-
Payment Terms:
-
L/C,T/T,Western Union
-
Port:
-
Ningbo/Shanghai
-
Specification:
-
Mechanical and electrical applications
-
Model:
-
PE
-
Brand:
-
Haodesheng
Products Description
|
3723 Phenolic cotton cloth rod
|
|
|
|
|||
|
|
|
|
|
|||
|
Properties
|
Unit
|
Fact Value index
|
Fact Value
|
|||
|
|
|
3723
|
|
|||
|
Density
|
g/cm3
|
≥1.26
|
1.43
|
|||
|
Flexural Strength
|
Mpa
|
≥90
|
101
|
|||
|
Impact Strength
|
KJ/m2
|
≥33
|
34.5
|
|||
|
Compressive Strength
|
Mpa
|
≥137.9
|
147
|
|||
|
Breakdown Voltage parallel to laminations
|
kv
|
≥10
|
11.6
|
|||
|
Water Absorption
|
%
|
≤1.0
|
0.3
|
|||
|
Reference standard
|
/
|
GB5133-85
|
|
|||

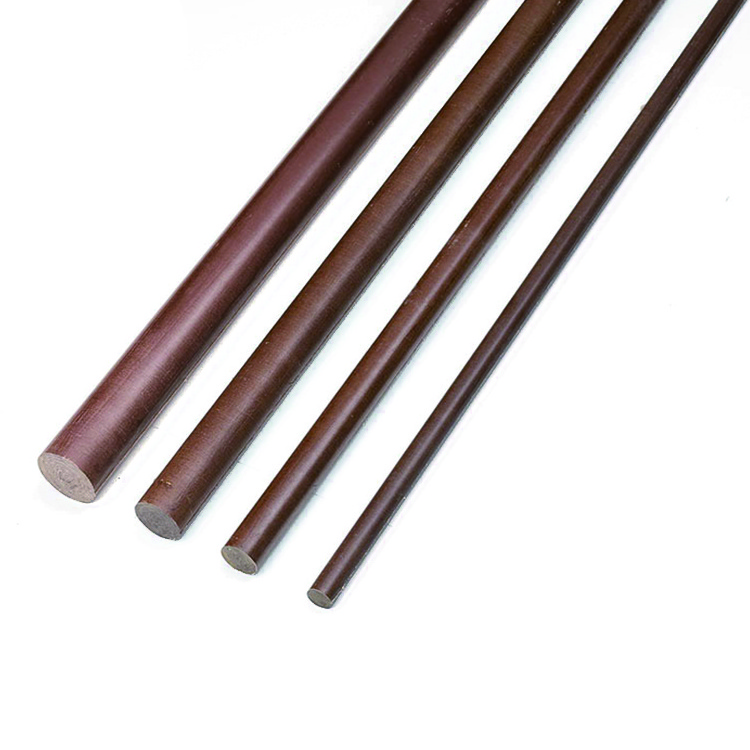

3723 Phenolic cotton cloth laminated rod is made up of cotton cloth by roasting and hot pressing in a forming mould. The rod of which the section is round, has good mechanical property and machinability.
Properties and application:
Widely used in the machinery field and electrical industry. It can be used as a part of insulating structure in generators, power distribution cabinet and other electrical equipments , also usable in the transformer oil.
Diameter: 8mm-200mm
Length: 1000mm
Color: Brown
Density:1.45-1.5 g/cm3
