Quick Details
-
Brand Name:
-
HEYA/OEM
-
Model Number:
-
SRV-20KVA
-
Input voltage:
-
140V-260V
-
Output voltage:
-
220v+-8%adustable
-
Frequency:
-
50Hz/60Hz
-
Protection system:
-
short circuit,over heating,over/lack voltage,over load
-
Delay time:
-
Short 5s-+2s(can be selected)
-
waveform:
-
No additional wave form distortion
-
Power factor:
-
0.8(can Customized 100% full power)
-
Certification:
-
ISO9001:2008,PCT,SGS,CE
-
Display:
-
LED display
-
Product Name:
-

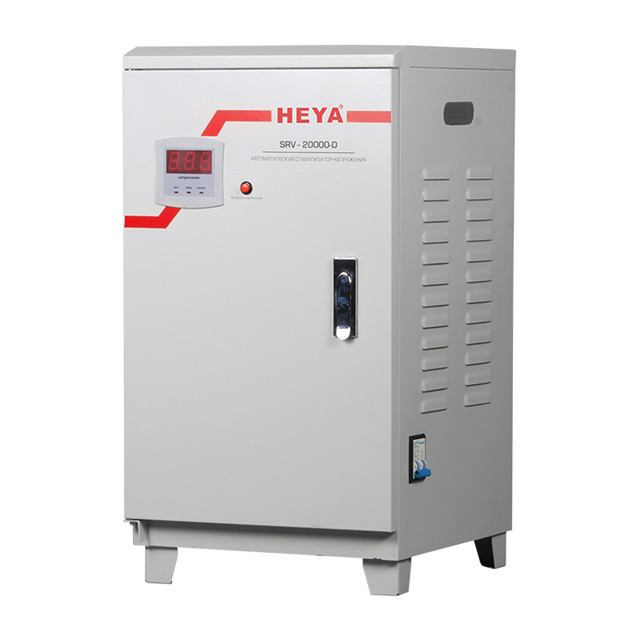

20kva 220v single phase relay control automatic AC voltage stabilizer
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HEYA/OEM
-
Model Number:
-
SRV-20KVA
-
Input voltage:
-
140V-260V
-
Output voltage:
-
220v+-8%adustable
-
Frequency:
-
50Hz/60Hz
-
Protection system:
-
short circuit,over heating,over/lack voltage,over load
-
Delay time:
-
Short 5s-+2s(can be selected)
-
waveform:
-
No additional wave form distortion
-
Power factor:
-
0.8(can Customized 100% full power)
-
Certification:
-
ISO9001:2008,PCT,SGS,CE
-
Display:
-
LED display
-
Product Name:
-
20kva 220v single phase relay control automatic AC voltage stabilizer
20kva 220v single phase relay control automatic AC voltage stabilizer
Product Parameter :
|
Model |
SRV-12000-D |
PC-SRV-12KVA |
SRV-15000-D |
PC-SRV-15KVA |
SRV-20000-D |
PC-SRV-20KVA |
|
Power capacity |
8400W |
7000W |
10500W |
10500W |
14000W |
14000W |
|
Input voltage |
AC 140-260V |
|||||
|
Output voltage |
220V±8% |
|||||
|
Phase |
Single Phase voltage stabilizer |
|||||
|
Frequency |
50-60Hz |
|||||
|
Adjust time |
1 second |
|||||
|
Type of stabilization |
Relay voltage stabilizer |
|||||
|
Display |
LED digital display |
Multi-functional LED display |
LED digital display |
Multi-functional LED display |
LED digital display |
Multi-functional LED display |
|
Protection over voltage |
250±2V |
|||||
|
Protection lack voltage |
180±2V |
|||||
|
Mode Bypass |
Yes |
|||||
|
Efficiency |
98% |
|||||
|
Type of connection |
Terminal block |
|||||
|
Degree of protection |
IP20 |
|||||
|
Delay |
5 second |
|||||
|
Temperature protection |
110°C±10°C |
|||||
|
Ambient Temperature |
-10~+45°C |
|||||
|
Relative humidity |
80% |
|||||
|
Waveform distortion |
No additional wave form distortion |
|||||
|
Dimension of device (L*W*H)(mm) |
460*265*310 |
410*250*220 |
410*360*630 |
410*360*630 |
450*430*710 |
450*430*710 |
|
Weight of device |
18.7Kg |
15.61Kg |
30Kg |
30Kg |
37Kg |
37Kg
|
