Quick Details
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
4000 - 4200 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DY
-
Voltage:
-
220v/240v/380v/400v/415v
-
Dimension(L*W*H):
-
as per order
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
IN STOCK
-
Product name:
-
Dyjx Spice Milling Turmeric Sugar Powder Grinding Machine
-
Keyword:
-
crusher machine
-
Function:
-
Make Dry Powder
-
Equipment:
-
Pin Grinding Mill Grinder Pulverizer Crusher
-
Certificate:
-
CE,ISO9001
-
Transport Package:
-
Plywood Case Packing
-
HS Code:
-
8474209000
-
Operation:
-
Manual
-
After-sales Service:
-
Support
-
Lead Time:
-
20 days
Quick Details
-
Output (kg/h):
-
20 - 1000 kg/h
-
Feeding Size (mm):
-
6 - 15 mm
-
Output Size (mesh):
-
12 - 125 mesh
-
Power (kW):
-
5.5
-
Range of Spindle Speed(r.p.m):
-
4000 - 4200 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
DY
-
Voltage:
-
220v/240v/380v/400v/415v
-
Dimension(L*W*H):
-
as per order
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
IN STOCK
-
Product name:
-
Dyjx Spice Milling Turmeric Sugar Powder Grinding Machine
-
Keyword:
-
crusher machine
-
Function:
-
Make Dry Powder
-
Equipment:
-
Pin Grinding Mill Grinder Pulverizer Crusher
-
Certificate:
-
CE,ISO9001
-
Transport Package:
-
Plywood Case Packing
-
HS Code:
-
8474209000
-
Operation:
-
Manual
-
After-sales Service:
-
Support
-
Lead Time:
-
20 days
Product Description

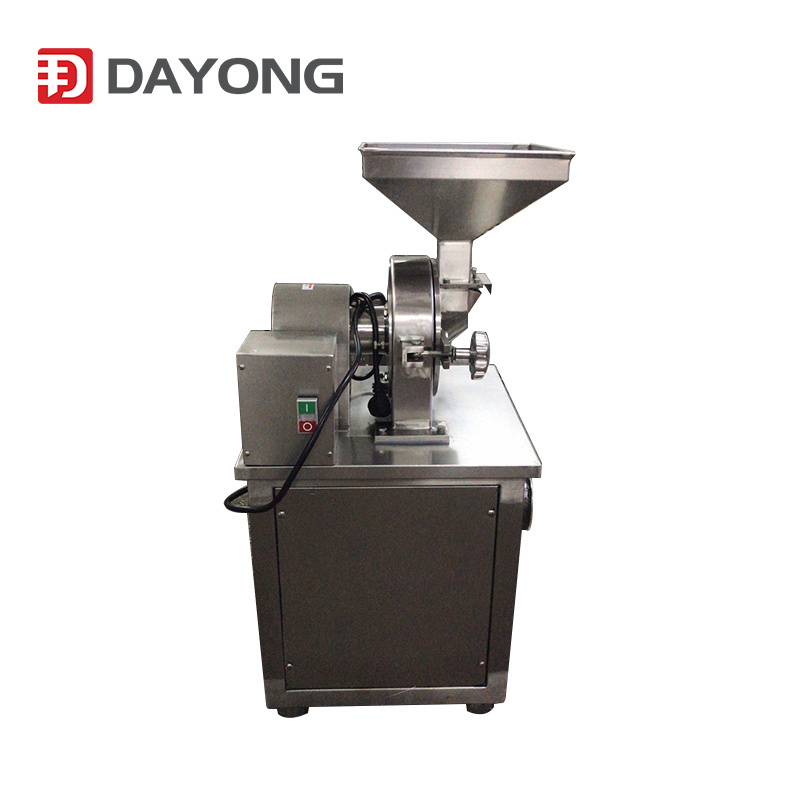

The universal powder grinder is made of high-quality 304 stainless steel and is equipped with a national standard motor. It is mainly used for chemical materials, Chinese herbal materials containing tree roots, branches and block materials, various grains with low oil content, whole grains and other hard and brittle materials.
Pictures Show
The machine uses the high-speed relative motion between movable gears to crush materials through the impact between gears,friction and impact between materials. The utility model has the advantages of simple structure, firmness, stable operation and good crushing effect. The crushed material can be directly removed from the grinding chamber of the main engine, and the particle size can be obtained by changing the screen with different apertures.
Details Images
Stainless steel screen: Change the mesh size ，then change the powder size.The screen in the machine is available with the following apertures: 0.4, 0.6, 0.7, 0.8, 1, 1.5, 2, 2.5 mm. Pin mill for spicy, rice, seed, nuts crushing to 20-120 mesh.
Product Parameters
|
Model
|
20B
|
30B
|
40B
|
50B
|
||||
|
Voltage (V)
|
220/380
|
380
|
380
|
380
|
||||
|
Power (KW)
|
2.2
|
5.5
|
7.5
|
11
|
||||
|
Spindle speed
|
4200
|
4200
|
4200
|
4200
|
||||
|
Fineness (mesh)
|
10-120
|
10-120
|
10-120
|
10-120
|
||||
|
Yield (kg/h)
|
10-120
|
30-200
|
50-300
|
70-500
|
||||
|
Size (mm)
|
480X520X1040
|
750X600 X1260
|
780 X700 X1350
|
800 X900 X1550
|
||||
|
Remark:
This machine is made of 304 stainless steel, more than 11KW motor, equipped with stainless steel electric box and triangle step-down starting device
|
|
|
|
|
||||
Application Industry
1. The Universal pulverizer may be widely applied in industries, such as medicine, chemical and food,etc., for grinding of dry and fragile materials. Materials with low softening point and big viscosity are not appropriate for this machine.
2. Components of this machine which have contact with materials to be crushed are all made of stainless steel with good anti-corrosive property. The housing is in a full enclosure for the convenience of cleaning. The interior walls are all treated to achieve evenness and smoothness of the surface, thus to ensure production of such materials as medicine, food and chemical in better conformity with the national "GMP" standard.
