Quick Details
-
Brand Name:
-
APT
-
Use:
-
FTTX
-
Warranty Time:
-
5 YEARS
-
Product name:
-
Cwdm Dwdm Fwdm
-
Application:
-
FTTTH FTTTB FTTTX
-
Wavelength:
-
1260-1650nm
-
Fiber Type:
-
SM MM
-
Certification:
-
CE RoHS
-
Connector Type:
-
SCUPC/SCAPC
-
Brand:
-
OEM Brand
-
Function:
-
FTTH Optical Network Connection
-
Keywords:
-
Cwdm Dwdm Fwdm
-
Warranty:
-
5 Years
Quick Details
-
Type:
-
wdm
-
Model Number:
-
APT-wdm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
APT
-
Use:
-
FTTX
-
Warranty Time:
-
5 YEARS
-
Product name:
-
Cwdm Dwdm Fwdm
-
Application:
-
FTTTH FTTTB FTTTX
-
Wavelength:
-
1260-1650nm
-
Fiber Type:
-
SM MM
-
Certification:
-
CE RoHS
-
Connector Type:
-
SCUPC/SCAPC
-
Brand:
-
OEM Brand
-
Function:
-
FTTH Optical Network Connection
-
Keywords:
-
Cwdm Dwdm Fwdm
-
Warranty:
-
5 Years
Specification
|
Parameter
|
Unit
|
CWDM
|
|
|
||
|
Channel Spacing
|
nm
|
100GHz or 200GHz
|
|
|
||
|
Channel Passband
|
nm
|
0.22 (100GHz) / 0.5 (200GHz)
|
|
|
||
|
Channel Number
|
/
|
4CH
|
8CH
|
16CH
|
||
|
Insertion Loss
|
dB
|
<1.5
|
<2.5
|
<5.5 or <3.5(with skip)
|
||
|
Isolation @Adjacent Channel
|
dB
|
>30
|
|
|
||
|
Isolation @Non-adjacent Channel
|
dB
|
>40
|
|
|
||
|
Isolation @Express Port
|
dB
|
>15
|
|
|
||
|
Polarization Dependent Loss
|
dB
|
<0.2
|
|
|
||
|
Polarization Mode Dispersion
|
dB
|
<0.1
|
|
|
||
|
Directivity
|
dB
|
>50
|
|
|
||
|
Return Loss
|
dB
|
UPC >45 APC>50
|
|
|
||
|
Power Handling
|
mW
|
<500 (High Power type available)
|
|
|
||
|
Operating Temperature
|
℃
|
-20~+75 (-40~+85 available)
|
|
|
||
|
Storage Temperature
|
℃
|
-40~+85
|
|
|
||
|
Package Type
|
mm
|
ABS Box
|
|
|
||

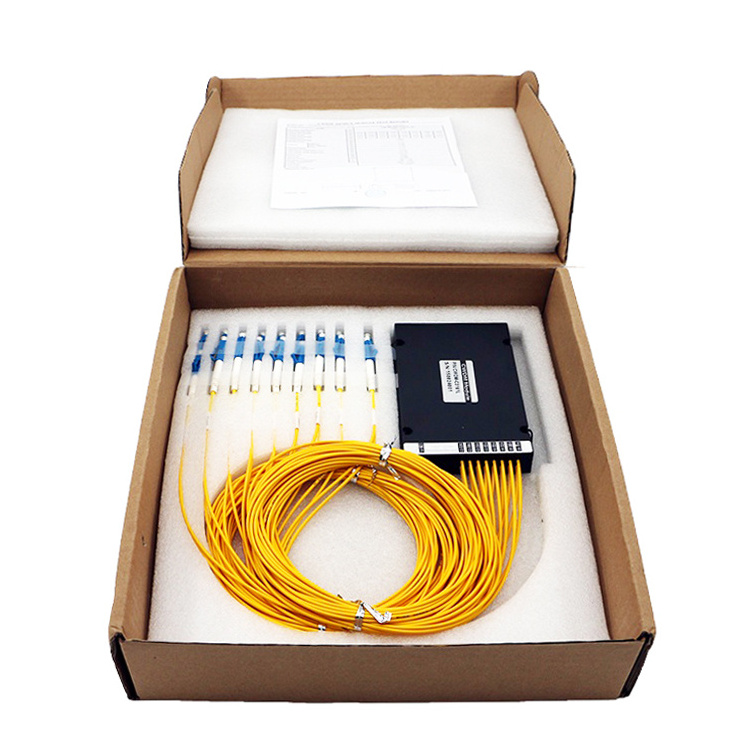

WDM
FTTX Filter WDM module extensively used in EDFA, Raman amplifiers, WDM networks and fiber optics instrumentation is based on Thin Film Filter (TFF) technology. The device combines or separates light at different wavelengths in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.
Application
1.System Monitoring
2.WDM System
3.Transmitters and Fiber
4.Fiber optical amplifier
5.Fiber optic Instruments
Qingdao Apt provides filter-based wavelength division multiplexing (WDM) filter devices that are customized to the particular wavelength bands for your special applications. As you might know, GEPON system itself works on 1310/1490, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get's "mixed".
Feature
1.Low Insertion Loss
2.Wide Wavelength Range
3.High Channel Isolation
4.High Stability and Reliability
1.Low Insertion Loss
2.Wide Wavelength Range
3.High Channel Isolation
4.High Stability and Reliability
Application
1.System Monitoring
2.WDM System
3.Transmitters and Fiber
4.Fiber optical amplifier
5.Fiber optic Instruments
