Quick Details
-
Ejector Stroke(mm):
-
100 mm
-
Ejector Force(kN):
-
33 kN
-
Theoretical Shot Volume(cm³):
-
188 cm³
-
Injection Rate (g/s):
-
121 g/s
-
Injection Weight (g):
-
157 g
-
Screw diameter (mm):
-
40 mm
-
Screw L/D Ratio:
-
18
-
Distance between Tie Bars:
-
360*360cm
-
Weight (KG):
-
250 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
310 mm
-

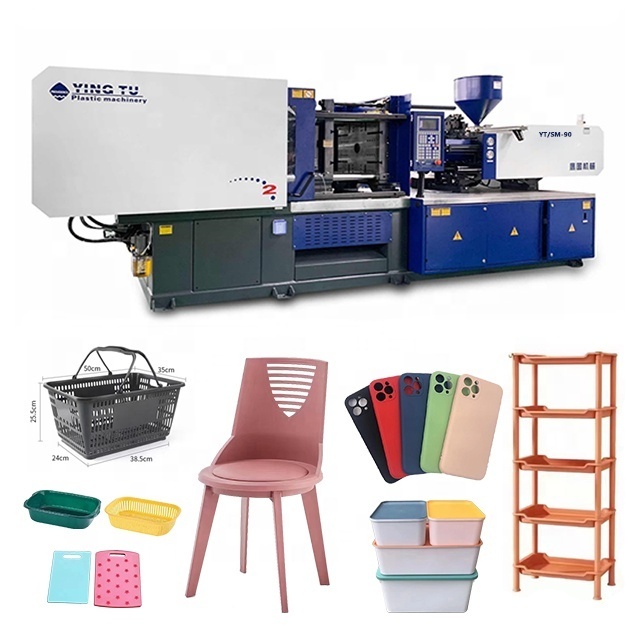

Model Number:
-
YT/SM90
-
Brand Name:
-
yingtu
-
Power (kW):
-
16 kW
-
Hydraulic system pressure:
-
16mpa
-
Heating power:
-
6.2kw
-
motor power:
-
11kw
-
Theoretical weight:
-
3t
-
Machine size:
-
4.24*1.19*1.88m
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Product name:
-
Standard Injection Machine
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
360mm
-
Distance between Tie Bars(Height)(mm):
-
360mm
-
Mold Height(mm):
-
150 - 360 mm
-
Ejector Stroke(mm):
-
100 mm
-
Ejector Force(kN):
-
33 kN
-
Theoretical Shot Volume(cm³):
-
188 cm³
-
Injection Rate (g/s):
-
121 g/s
-
Injection Weight (g):
-
157 g
-
Screw diameter (mm):
-
40 mm
-
Screw L/D Ratio:
-
18
-
Distance between Tie Bars:
-
360*360cm
-
Weight (KG):
-
250 kg
-
Place of Origin:
-
Zhejiang, China
-
Open Stroke(mm):
-
310 mm
-
Model Number:
-
YT/SM90
-
Brand Name:
-
yingtu
-
Power (kW):
-
16 kW
-
Hydraulic system pressure:
-
16mpa
-
Heating power:
-
6.2kw
-
motor power:
-
11kw
-
Theoretical weight:
-
3t
-
Machine size:
-
4.24*1.19*1.88m
-
After-sales Service Provided:
-
Video technical support
-
After Warranty Service:
-
Online support
-
Product name:
-
Standard Injection Machine
-
Marketing Type:
-
Ordinary Product
| Injection Unit | |
| The screw diameter mm | 40 |
| Screw diameter (mm) | 18 |
| Theoretical capacity cm³ | 188 |
| Actual injection weight g | 171 |
| Injection pressure Mpa | 140 |
| Clamping Unit | |
| Clamping force KN | 860 |
| Opening stroke mm | 310 |
| Space between tie-bars mm*mm | 360*360 |
| Max.mold thickness mm | 360 |
| Min.mold thickness mm | 150 |
| Oil pressure ejecting stroke mm | 100 |
| Oil pressure ejecting force KN | 33 |
| Power/Electric Heating | |
| Oil pressure system pressure Mpa | 16 |
| Heating capacity KW | 11 |
| Motor capacity KW | 6.2 |
| Other | |
| Machine size m*m*m | 4.24*1.19*1.88 |
| Theoretical weight of machine t | 3 |
