* IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
* Max power to15.4W under af standard, 30W under at standard to each PoE port
* Operating environment temperature:-40 ° ~85 ° c
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OLYCOM
-
Product name:
-
Gigabit Industrial Ethernet switch
-
Connector Type:
-
SFP
-
Dimensions:
-
114*93*35mm
-
Certification:
-
ISO9001, CE, FCC
-
Power supply:
-
24V
-
Distance:
-
20km, 40km/60km optional
-
Rate:
-
10/100/1000Mbps
-
Weight:
-
1kg/pc
-
OEM/Customization:
-
Available
-
Application:
-
Transportation, coal and petrochemical industry
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
IM-FS140GE V1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OLYCOM
-
Product name:
-
Gigabit Industrial Ethernet switch
-
Connector Type:
-
SFP
-
Dimensions:
-
114*93*35mm
-
Certification:
-
ISO9001, CE, FCC
-
Power supply:
-
24V
-
Distance:
-
20km, 40km/60km optional
-
Rate:
-
10/100/1000Mbps
-
Weight:
-
1kg/pc
-
OEM/Customization:
-
Available
-
Application:
-
Transportation, coal and petrochemical industry
Product Description

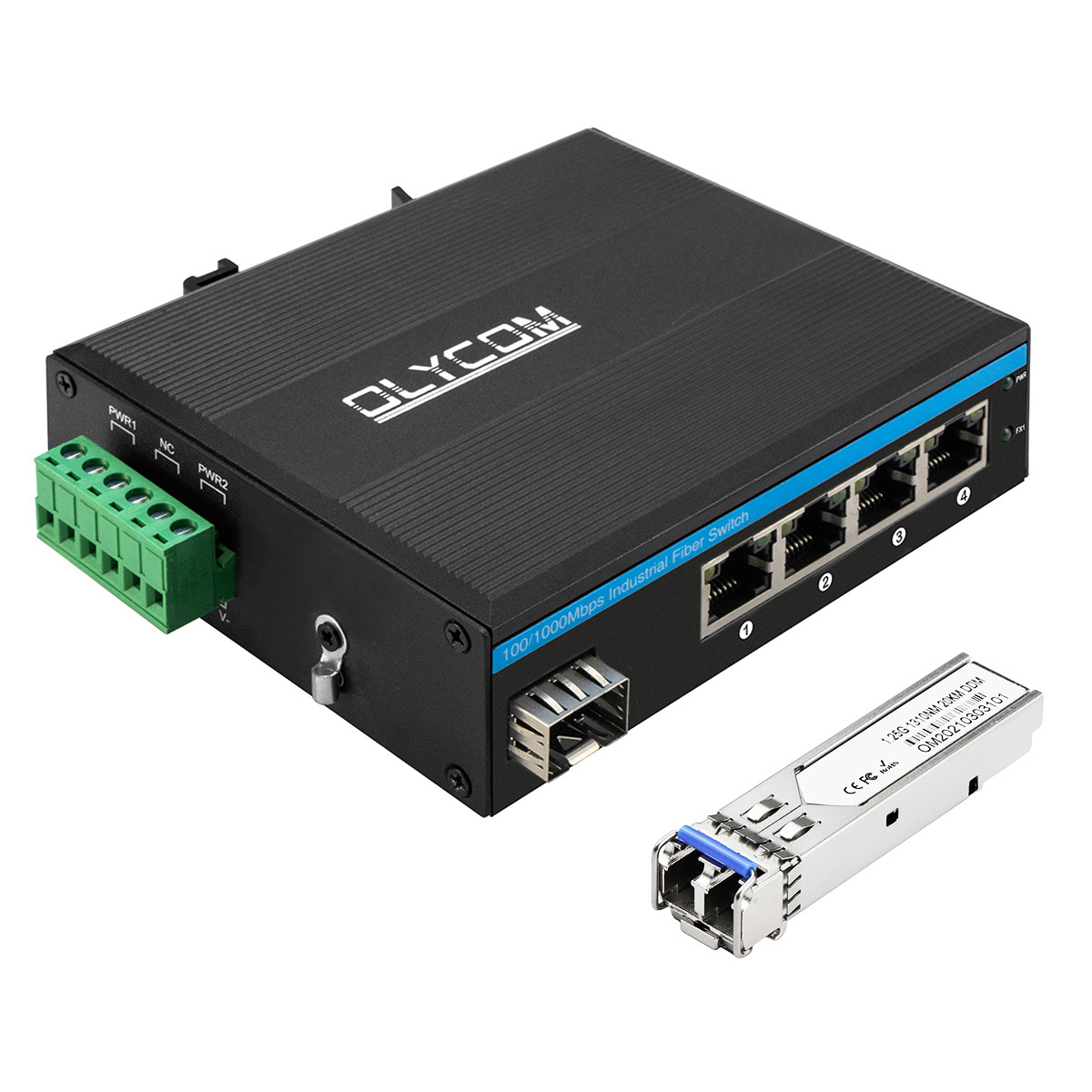

1000Mbps unmanaged Ethernet 5 port industrial Gigabit switch
Introduction
Key Features
* Max power to15.4W under af standard, 30W under at standard to each PoE port
* Operating environment temperature:-40 ° ~85 ° c
Specification
|
Product Name
|
10/100/1000Mbps Industrial POE Fiber Switch (1F+4TP)
|
|
Model No.
|
IM-FP144GE
|
|
Port
|
1 x 1000Mpbs SFP port
SM：1310nm/1550nm，20Km 1490nm/1550nm，40~120Km MM：1310nm，2Km 4x10/100/1000M UTP RJ45（Support MDI/MDIX auto-sensing） |
|
Switching features
|
Transmission mode：storage and forward<10us
System bandwidth：40Gbps (non-traffic jam) |
|
Network media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port，transmission distance: 20Km，40Km，60Km，80Km，100Km |
|
LEDs
|
Power, network, fiber
|
|
Power supply
|
POE power supply input voltage: 48V (max 52V),
Single PoE power supply output power: 15.4W (port 1~4) (802.3at standards required special instructions) |
|
Environment
|
Working temperature：-40°～ 85°C
Storage temperature：-40°～ 85°C Working humidity：10%～90%，non-condensing Storage humidity：10%～95%，non-condensing |
|
Safety
|
CE Mark, commercial
CE/LVD EN60950 |
|
Mechanical information
|
Shell：Corrugated metal shell
Safety class：IP40 Dimension: 114*93*35mm Mounting method：Din-rail mounting |
|
Warranty
|
Replacement within 1 year; 3 years repairing
|
Application
Outdoor sfp LC to UTP RJ45 copper Gigabit 1000M industrial fiber switch
Hot-selling Products
Packaging and Shipping
Packaging
Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
Grey color, corrugated metal case.
Shipping
We deliver goods from our stock by Express like DHL, UPS or FedEx.
Around 2~4 working days to send your order.
Certifications
Exhibition
FAQ
1 Q: Can I have a sample order?
A: Yes, But the delivery fee should be paid by you.
2 Q: Please tell me something about your MOQ and price terms
A: Our common practice for MOQ is 50pcs based on USD price or EUR price.
A: Yes, But the delivery fee should be paid by you.
2 Q: Please tell me something about your MOQ and price terms
A: Our common practice for MOQ is 50pcs based on USD price or EUR price.
For customization, OEM or ODM, all those terms are negotiable.
