Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gaodetec
-
Model Number:
-
STQ
-
Min Height:
-
225mm
-
Product name:
-
Double acting hydraulic cylinders
-
Tonnage:
-
50-1000 Ton
-
Stroke:
-
100-500mm
-
Pressure:
-
63MPa
-
Own body height:
-
225-898mm
-
Extend height:
-
325-1398mm
-
Outer diameter of oil cylinder:
-
127-600mm
-
Dimension of plunger:
-
70-320mm
-
Dimension of oil pump:
-
100-450mm
Quick Details
-
Warranty:
-
2 years
-
Type:
-
Hydraulic Jack
-
Max Height:
-
1398mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gaodetec
-
Model Number:
-
STQ
-
Min Height:
-
225mm
-
Product name:
-
Double acting hydraulic cylinders
-
Tonnage:
-
50-1000 Ton
-
Stroke:
-
100-500mm
-
Pressure:
-
63MPa
-
Own body height:
-
225-898mm
-
Extend height:
-
325-1398mm
-
Outer diameter of oil cylinder:
-
127-600mm
-
Dimension of plunger:
-
70-320mm
-
Dimension of oil pump:
-
100-450mm

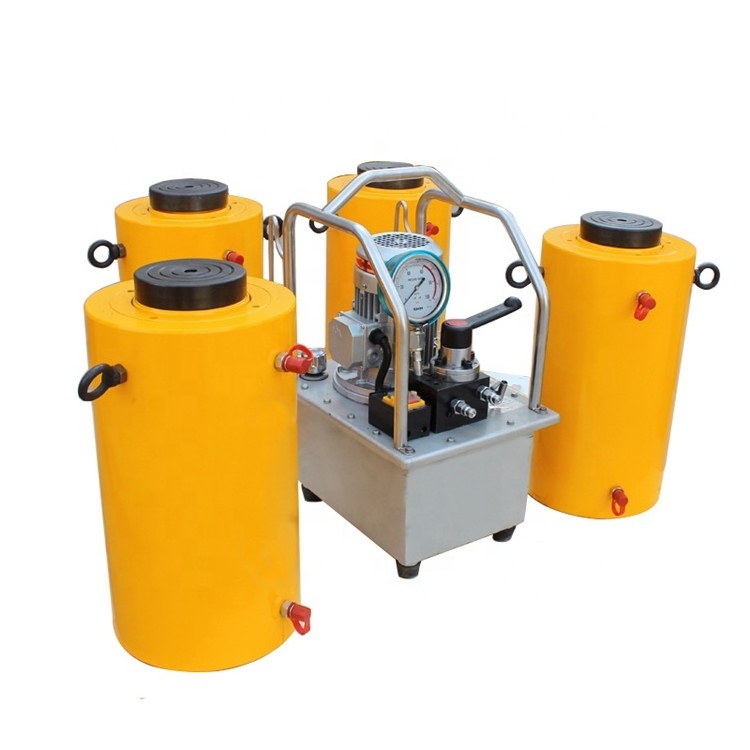

cheap sale hydraulic house lifting jacks
Product Show
Features
1. Integral stop ring provides piston blow-out protection
2. Double-acting for positive retraction
3. Baked enamel outside finish and plated pistons provide superior corrosion resistance
4. Safety valve in retract side of cylinder helps to prevent damage in case of accidental over-pressurization
5. Interchangeable, hardened grooved saddles are standard
6. Plunger wiper reduces contamination, extending cylinder life
2. Double-acting for positive retraction
3. Baked enamel outside finish and plated pistons provide superior corrosion resistance
4. Safety valve in retract side of cylinder helps to prevent damage in case of accidental over-pressurization
5. Interchangeable, hardened grooved saddles are standard
6. Plunger wiper reduces contamination, extending cylinder life
These are pictures of jacks purchased by customers before, and the
color, tonnage and stroke
can be customized. Please contact us!
Application
Hydraulic house lifting jacks
can bear partial loading is 5% of rated pressure. High pressure alloy cylinder is very durable, especially in the larger project, it is easily to be operated and control. It can be used for lifting heavy machine, bridge project, hydraulic engineering, harbour construction and other equipment. It has large output, light weight, remote control and other advantages, it can match with our high pressure oil pump, it can reach jack, push,pull and extrusion and kinds of working.
Other applications
Technical Parameters
|
Model
|
Tonnage T |
Stroke mm |
Closed height
mm
|
Extend height
mm
|
Outer diameter of oil cylinder mm
|
Dimension of plunger
mm |
Dimension of oil pump
mm
|
|
STQ50-100
|
50 |
100
|
225
|
325
|
127 |
70 |
100 |
|
STQ50-160
|
|
160
|
285
|
445
|
|
|
|
|
STQ50-200
|
|
200
|
325
|
525
|
|
|
|
|
STQ50-300
|
|
300
|
425
|
725
|
|
|
|
|
STQ50-500
|
|
500
|
625
|
1125
|
|
|
|
|
STQ100-100
|
100 |
100
|
250
|
350
|
180 |
100 |
140 |
|
STQ100-160
|
|
160
|
310
|
470
|
|
|
|
|
STQ100-200
|
|
200
|
350
|
550
|
|
|
|
|
STQ100-300
|
|
300
|
450
|
750
|
|
|
|
|
STQ100-500
|
|
500
|
650
|
1150
|
|
|
|
|
STQ150-100
|
150 |
100
|
260
|
360
|
219 |
125 |
180 |
|
STQ150-160
|
|
160
|
320
|
480
|
|
|
|
|
STQ150-200
|
|
200
|
360
|
560
|
|
|
|
|
STQ150-300
|
|
300
|
460
|
760
|
|
|
|
|
STQ150-500
|
|
500
|
660
|
1160
|
|
|
|
|
STQ200-100
|
200 |
100
|
285
|
385
|
240 |
150 |
200 |
|
STQ200-160
|
|
160
|
345
|
505
|
|
|
|
|
STQ200-200
|
|
200
|
385
|
585
|
|
|
|
|
STQ200-300
|
|
300
|
485
|
785
|
|
|
|
|
STQ200-500
|
|
500
|
685
|
1185
|
|
|
|
|
STQ320-100
|
|
100
|
310
|
410
|
|
|
|
|
STQ320-160
|
|
160
|
370
|
530
|
|
|
|
|
STQ320-200
|
|
200
|
410
|
610
|
|
|
|
|
STQ320-300
|
|
300
|
510
|
810
|
|
|
|
|
STQ320-500
|
|
500
|
710
|
1210
|
|
|
|
|
STQ400-100
|
400 |
100
|
355
|
455
|
380 |
200 |
290 |
|
STQ400-160
|
|
160
|
415
|
575
|
|
|
|
|
STQ400-200
|
|
200
|
460
|
660
|
|
|
|
|
STQ400-300
|
|
300
|
555
|
855
|
|
|
|
|
STQ400-500
|
|
500
|
755
|
1255
|
|
|
|
|
STQ500-100
|
500 |
100
|
360
|
460
|
430 |
200 |
320 |
|
STQ500-160
|
|
160
|
420
|
580
|
|
|
|
|
STQ500-200
|
|
200
|
460
|
660
|
|
|
|
|
STQ500-300
|
|
300
|
560
|
860
|
|
|
|
|
STQ500-500
|
|
500
|
760
|
1260
|
|
|
|
|
STQ630-100
|
630 |
100
|
417
|
517
|
500 |
250 |
360 |
|
STQ630-160
|
|
160
|
477
|
637
|
|
|
|
|
STQ630-200
|
|
200
|
517
|
717
|
|
|
|
|
STQ630-300
|
|
300
|
617
|
917
|
|
|
|
|
STQ630-500
|
|
500
|
817
|
1317
|
|
|
|
|
STQ800-100
|
800 |
100
|
488
|
588
|
560 |
300 |
400 |
|
STQ800-200
|
|
200
|
598
|
798
|
|
|
|
|
STQ800-300
|
|
300
|
698
|
998
|
|
|
|
|
STQ800-500
|
|
500
|
898
|
1398
|
|
|
|
|
STQ1000-100
|
1000 |
100
|
530
|
630
|
600 |
320 |
450 |
|
STQ1000-200
|
|
200
|
630
|
830
|
|
|
|
|
STQ1000-300
|
|
300
|
760
|
1060
|
|
|
|
If the model you need is not in the form, please contact us. We can customize according to your project!
