Quick Details
-
Brand Name:
-
Moerte
-
Model Number:
-
PL25L-024-08
-
Step increment Accuracy:
-
±0.001(full step,no load)
-
Inductance Accuracy:
-
±20%
-
Ambient Temperature:
-
-40℃~+60℃
-
Insulation Resistance:
-
100MΩ min. 500VDC
-
Dielectric Strength:
-
500VDC for one minute
-
Backlash:
-
0.03mm
-
Insulation class:
-
E-level
-
Life:
-
100000 cycles
Quick Details
-
Phase:
-
2
-
Type:
-
Permanent Magnet
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Moerte
-
Model Number:
-
PL25L-024-08
-
Step increment Accuracy:
-
±0.001(full step,no load)
-
Inductance Accuracy:
-
±20%
-
Ambient Temperature:
-
-40℃~+60℃
-
Insulation Resistance:
-
100MΩ min. 500VDC
-
Dielectric Strength:
-
500VDC for one minute
-
Backlash:
-
0.03mm
-
Insulation class:
-
E-level
-
Life:
-
100000 cycles
Product Description
Product Introduction：

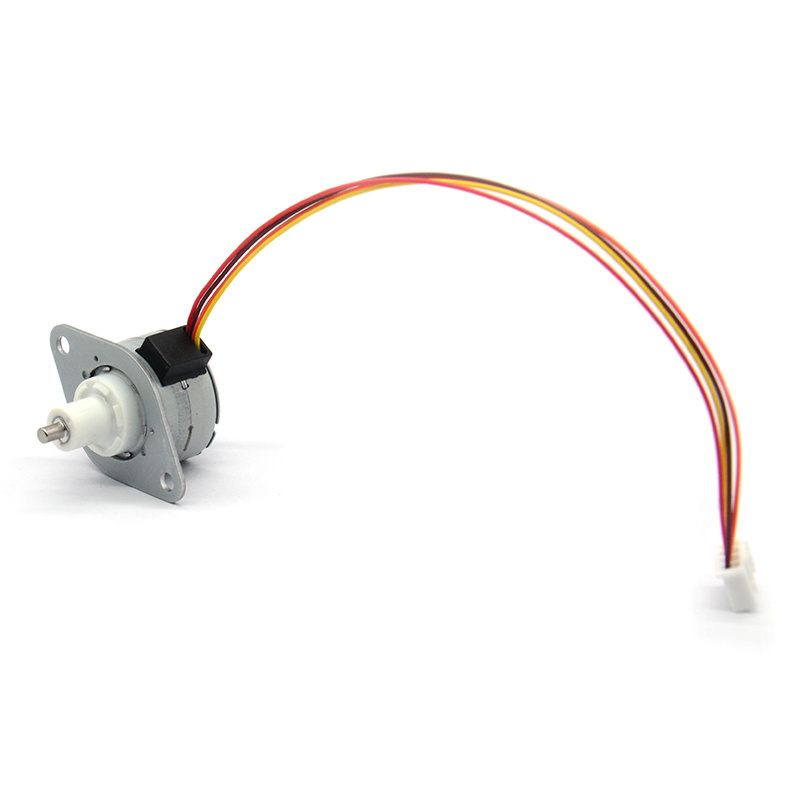

PL25L-024 Fixed (15 °)The rotor of the permanent magnet linear stepper motor (PL series stepper motor) is made of bonded neodymium iron boron permanent magnet material, and the number of poles in the rotor is the same as that in the stator. The motor has a compact structural design, strong processability, and is suitable for mass production, The lead screw is made of imported SUS303 stainless steel and rolled into shape, with high smoothness and stable size; Nut material: Teflon material; High fit of screw nut; Its characteristics are high dynamic thrust, long service life, low noise, and high temperature resistance;
Performance parameters：
Application field
Medical equipment: beauty equipment, injection pump, household appliances: coffee machine Industry: stage lighting, optical instruments, valve control, textile machinery and other automation controls;
Note: The lead, thrust, stroke, and other performance parameters of the screw can be customized according to customer requirements.
