Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hongsheng
-
Voltage:
-
Optional
-
Dimension(L*W*H):
-
4570*600*700mm
-
Weight (KG):
-
60 kg
-
Product name:
-
Portable conveyor belt price
-
Application:
-
Warehouse
-
Function:
-
Loading and unloading container/truck
-
Usage:
-
Automatic
-
Feature:
-
700~2500mm adjustable
-
Motor:
-
Variable Speed
-
Speed:
-
10~20m/min
-
Tongue:
-
Expandable and retractable
-
Belt material:
-
600/800/1000mm optional
-
Frame Material:
-
Cabon Steel
Quick Details
-
Power:
-
1.5kw/2.2kw
-
Warranty:
-
1 Year
-
Width or Diameter:
-
600~1000 mm optional
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Hongsheng
-
Voltage:
-
Optional
-
Dimension(L*W*H):
-
4570*600*700mm
-
Weight (KG):
-
60 kg
-
Product name:
-
Portable conveyor belt price
-
Application:
-
Warehouse
-
Function:
-
Loading and unloading container/truck
-
Usage:
-
Automatic
-
Feature:
-
700~2500mm adjustable
-
Motor:
-
Variable Speed
-
Speed:
-
10~20m/min
-
Tongue:
-
Expandable and retractable
-
Belt material:
-
600/800/1000mm optional
-
Frame Material:
-
Cabon Steel

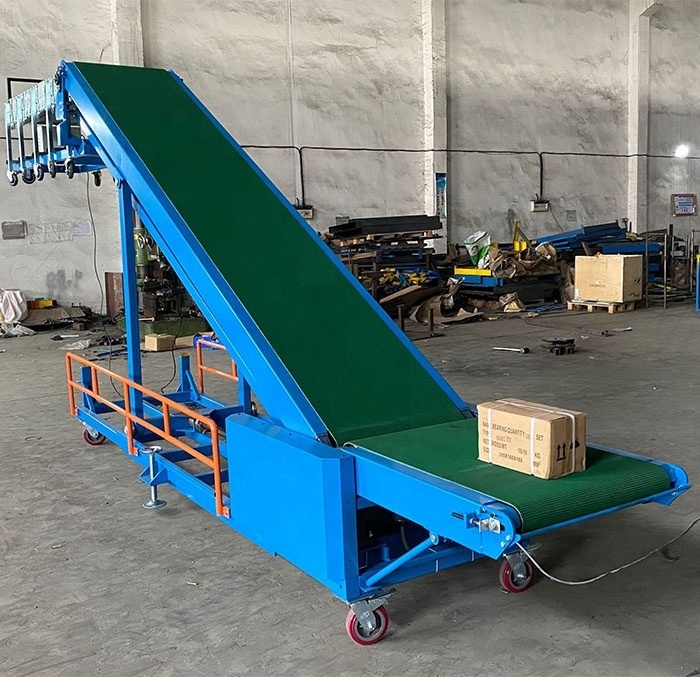

Portable conveyor belt price
Dockless loading conveyor is quite welcome to automatically load or unload goods in and out of trailers/vans/truck/containers in warehouse,harbor,airport,dock,etc.it solves the problems of no shipping docks when loading or unloading.the mechanized operation largely increases work efficiency,relieves labor intensity and also reduces cost for modern enterprises in a side range of applications.it facilitates goods handing work and also provides advantages to advanced production,modernized mangement and safe operation.
1.It be used for loading and unloading truck, ,trailer,van,container in situation that loading place without platform,as the height of belt conveyor can be adjusted,the height adjustable range is 700~2500mm;
2.It suit to transport below 50kgs soft bag, flat bottom items likes carton, box ect;
1. L argely increases work efficiency,relieves labor intensity , reduces cost for modern enterprises ;
2.Height can be adjusted,convenience to load and unload container in no platform situation;
3.Offer you the lowest price and high quality product;
4.With 10 years OEM & ODM experience;
5.With professional technical team;
6.One year warranty,spares can be free offered during this time,after you providing specific problem picture;
| Model | Belt conveyor part |
Tongue come into container |
Belt width | Table width | Adjusted height | Dead weight | Speed | Power for conveying | Power for uplifting |
| DG-600 | 4.7m inclined belt conveyor |
6 section gravity wheel conveyorx Expandable range:2200~6900mm |
600/800/1000mm | 800/1000/1200mm | 700~2500mm | 50kgs | 10~20m/min | 1.5kw | 2.2kw |
| DD-600 | 4.7m inclined belt conveyor |
4 section motorized roller conveyor Expandable range:1700~4200mm |
600/800/1000mm | 800/1000/1200mm | 700~2500mm | 50kgs | 10~20m/min | 1.5kw | 2.2kw |
More parameters can be customized accordance with your requests.
1.Dockless loading conveyor consists of two parts:flexible tongue into container and inclined belt conveyor, they can work independently,
Tongue into container have two style:
1) "6-sections flexible gravity skate wheel conveyor" Model: DG-600
2) "4-section flexible motorized roller conveyor" DD-600
2. This item can be extended through end connectting the others items by hook,so that the goods can reach the place;
1) The end can be connectted "roller conveyor"
2) The end can be connectted "wheel conveyor"
3) The end can be connectted "belt conveyor", that suit to conveyed bag packed goods
3.Material of belt is 3 mm thickness anti-skidding PVC belt ;
4. This items with two motors ,one motor for conveying goods,power is 1.5kw;the other motor for uplifting,power is 2.2kw;
conveyor lift up and down through screw .
5.The height adjustable range of incline belt conveyor is 700~2500mm ,
so this item conveyor suit to be used in the loading place where has no platform;
