Quick Details
-
Product name:
-
motor Coil Winding Machine
-
Function:
-
winding motor coil
-
Winding speed:
-
0 ~ 160 rpm
-
Wire type:
-
flat wire and round wire
-
color:
-
optional
-
delivery time:
-
20 days
-
warranty:
-
12 months
-
Max. winding diameter:
-
800mm
-
application:
-
winding motor coil
-
Power:
-
2.2kw
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Zhutang
-
Weight (KG):
-
300
-
Product name:
-
motor Coil Winding Machine
-
Function:
-
winding motor coil
-
Winding speed:
-
0 ~ 160 rpm
-
Wire type:
-
flat wire and round wire
-
color:
-
optional
-
delivery time:
-
20 days
-
warranty:
-
12 months
-
Max. winding diameter:
-
800mm
-
application:
-
winding motor coil
-
Power:
-
2.2kw
Introduc tion

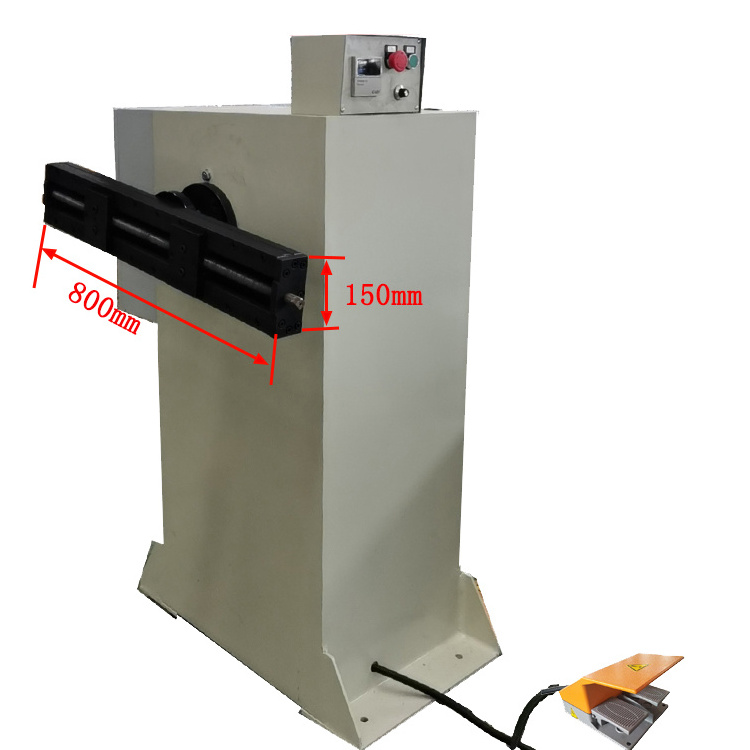

Semi automatic motor coil winding machine MW800 is suitable for winding different specifications of copper or aluminum wire coils, these coils can be used in motors and other similar products.
Main Components
1.Main frame
2.Gearbox
3.Tailstock
4.Electric control boxg
5.Foot switch
Technical Parameters
Typical s tandard specification s of MW500 are shown below, however the machine can also be manufacutured as requested .
| Center height | 1000mm |
| Max. winding diameter | 800mm |
| Winding power | 2.2kw |
| Winding speed | 0 ~ 160rpm |
| Speed regulation | stepless |
| Max. flat wire size | 5 x 12mm |
| Round wire diameter |
0.3 ~ 5mm |
| Counter | 5-digital |
| Max. capacity | 200kg |
| Warranty period | 12months |
