Quick Details
-
Certificate:
-
CE,CQC,ROHS
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
XiangKai
-
Model Number:
-
JH27-300
-
Certificate:
-
CE,CQC,ROHS

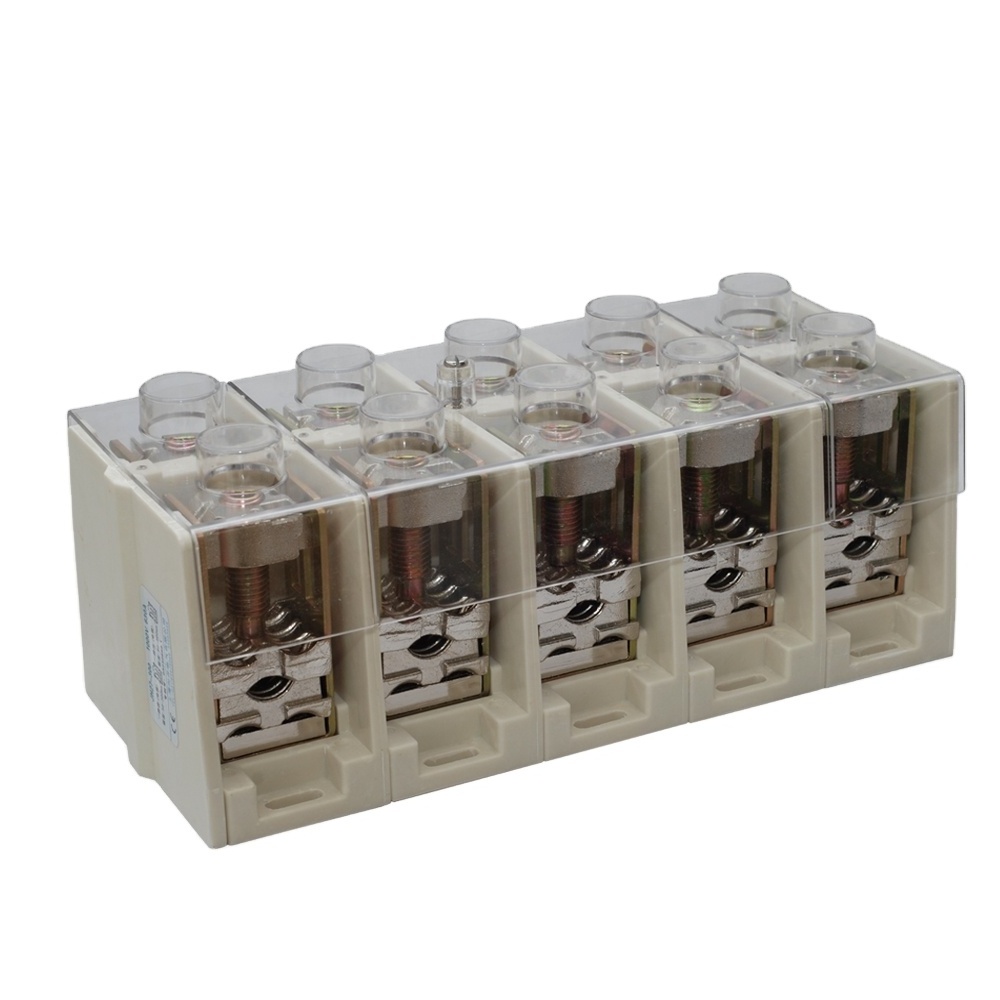

JH27 series is specially designed for wiring with big cable size > 70 mm2. While other traditional blocks fail with reliability issue and difficult to install when the cable gets bigger, JH27 still provides the same high quality of connection summarized as the following:
* Save 50%-70% cost comparing to busbar and branch cables
* Provides flexible connection solution with 10 input/output combinations
* Patented design provides reliable and wide area contact
* Low resistance contact points, max voltage loss is only 0.98 mV
* Molded with anti-aging, non-flammable, heat & impact resistance material, passed 120A/mm2 short-circuits stress test and UL 94 V-0 flammability test
* Accepts both copper and aluminum cables
* Easy and quick installation. No specialty tools needed .
* Fit for IEC60947-7-1.
JH27-300
| Rated voltage/Current/Cross-section:1 000V/630A/300mm 2 | |||
| Screw M16 | Torque(N m) 50 | Stripping length(mm) 42 | Mounting screw M6 |
| Model |
Type |
Wiring range | Order No |
| JH27-300 | 1 input(cable) ,1 output(cable) | 50~300 | XK07511 |
| JH27-300B | 1 input(bar) ,1 output(bar) | bar width≤40 | XK07521 |
| JH27-300C | 1 input(bar) ,1 output(cable) | in(width ≤40),out 50~300 | XK07531 |
| JH27-300D | 1 input(cable) ,2 output(cable) | in 50 ~300,out 25~240 | XK07541 |
| JH27-300E | 1 input(bar) ,2 output(cable) | in(width ≤40),out 25~240 | XK07551 |
| JH27-300J | 2 input(cable) ,2 output(cable) | in35 ~240,out 35~240 | XK07591 |
| JH27-300T | 1 input(cable) ,3 output(cable) | in5 0 ~300,out 25~95 | XK07501 |
Shanghai Xiang K ai Electric Co. LTD. is a technology-driven electrical components design and manufacture company, headquarter in Shanghai, China. Our mission is to provide high quality electrical products and service to our worldwide customer-base.
Entering the 21 st century, Shanghai Xiang K ai Electric Co. has started our development in the area of specialty terminal blocks and become the segment leader in China. We have published multiple patents and rolled out corresponding new products every year in the past decade. Our high current terminal blocks, multipurpose blocks and separators has been chosen by Siemens, M o eller Electric, Rockwell Automation, ABB, Schneider Electric, and Himoinsa in their systems. Our T - connection blocks have been proved by many customers as the most cost-effective and reliable product in the market. They are recommended by the China Construction Bureau and used in many Chinese national projects such as Pudong Airpo r t, Beijing Airport, Beijing Olympics, Shanghai World Expo and High-speed Rail constructions.
Our product lines are backed up by a strong R&D and support team to develop best products tailored to customer needs. Shanghai Xiang K ai Electric Co is ISO-9001 certified and our products have passed, CE, CQC certification .
