Quick Details
-
Place of Origin:
-
Other Country, Shanghai, China
-
Brand Name:
-
Gasim, Gasim Push button Switch
-
Model Number:
-
XB2-BL Push Button Switch
-
Model Name:
-
XB2-BL Momentary Push Button Switch
-
Standard:
-
IP65, IP40, IP60, IP30
-
Type:
-
Green Red Momentary Push Button Switch
-
Voltage:
-
380V
-
Current:
-
6A Momentary Push Button Switch
-
Material:
-
Plastic Cover
-
Series:
-
XB2-BL8835 Momentary Push Button Switch
-
Certification:
-
ce
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
6A
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Other Country, Shanghai, China
-
Brand Name:
-
Gasim, Gasim Push button Switch
-
Model Number:
-
XB2-BL Push Button Switch
-
Model Name:
-
XB2-BL Momentary Push Button Switch
-
Standard:
-
IP65, IP40, IP60, IP30
-
Type:
-
Green Red Momentary Push Button Switch
-
Voltage:
-
380V
-
Current:
-
6A Momentary Push Button Switch
-
Material:
-
Plastic Cover
-
Series:
-
XB2-BL8835 Momentary Push Button Switch
-
Certification:
-
ce

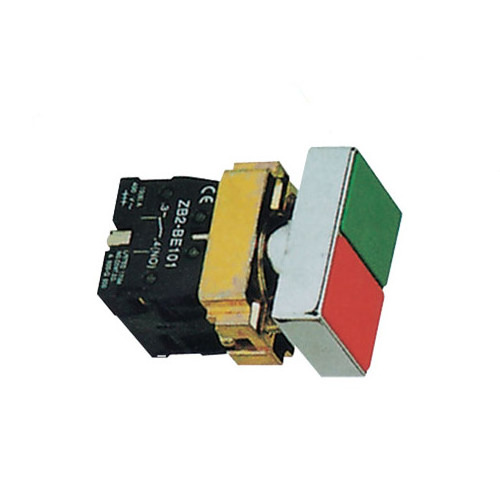

GASIM Pushbutton Switch
Momentary Push Button Switch
|
With chromium plated metal bezel
|
|||||
| Double-headed pushbuttons, spring return | ||||||
| Description | Contact | Scheme | Scheme | Degree. of protection | Reference | |
|
Without indicaton 1 flat green Pushbutton 1 bulgy red PushButton |
N/C + N/O |
|
Unmarked | IP40 | XB2-BL8325 | |
| IP65 | XB2-BL9325 | |||||
|
| O |
||||||
| IP40 | XB2-BL8425 | |||||
| IP65 | XB2-BL9425 | |||||
|
With pilot light
1 flat green pushbutton 1 indicator with yellow lens Direct supply≤380V 1 bulgy red pushbutton |
N/C + N/O |
Unmarked | ||||
| IP40 | XB2-BW8365 | |||||
|
| O |
||||||
| IP40 | XB2-BW8365 | |||||
|
1 flat green pushbutton
1 indicator with yellow lens 220/250V supply direct through resistor BA 9s, 130V bulb included 1 bulgy red pushbutton |
N/O + N/C |
Unmarked | ||||
| IP40 | XB2-BW8375 | |||||
|
| O |
||||||
| IP40 | XB2-BW8475 | |||||
|
1 flat green pushbutton
1 indicator with yellow lens 1.2VA-220V direct supply via integral transformer BA 9s 6V, bulb included 1 bulgy red pushbutton |
N/O + N/C |
Unmarked | ||||
| IP40 | XB2-BW8345 | |||||
|
| O |
||||||
| IP40 | XB2-BW8445 | |||||
| Latching mushroom head “emergency stop” pushbutton | ||||||
| Description | Contact | Scheme | Reference | |||
| Push-pull Red | φ40 | XB2-BT42 | ||||
| φ60 | XB2-BX42 | |||||
| Turn to release Red | N/C |
|
||||
| φ30 | XB2-BS442 | |||||
| φ40 | XB2-BS542 | |||||
| φ60 | XB2-BS642 | |||||
| Rey release(key n° 445)Red | φ30 | XB2-BS742 | ||||
| φ40 | XB2-BS142 | |||||
| φ60 | XB2-BS242 | |||||
| Latching mushroom head pushbutton with “Trigger action” | ||||||
| Turn to releaseRed release(Key n° 445)Red |
N/O + N/C |
|
φ40 | XB2-BS8445 | ||
| XB2-BS9445 | ||||||
