Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
none
-
Model Number:
-
MY1025
-
Torque:
-
1.31~25 kg.cm
-
Power:
-
250w
-
Supply voltage:
-
24Vdc
Quick Details
-
Speed(RPM):
-
2750rpm
-
Continuous Current(A):
-
≤13.7A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
none
-
Model Number:
-
MY1025
-
Torque:
-
1.31~25 kg.cm
-
Power:
-
250w
-
Supply voltage:
-
24Vdc

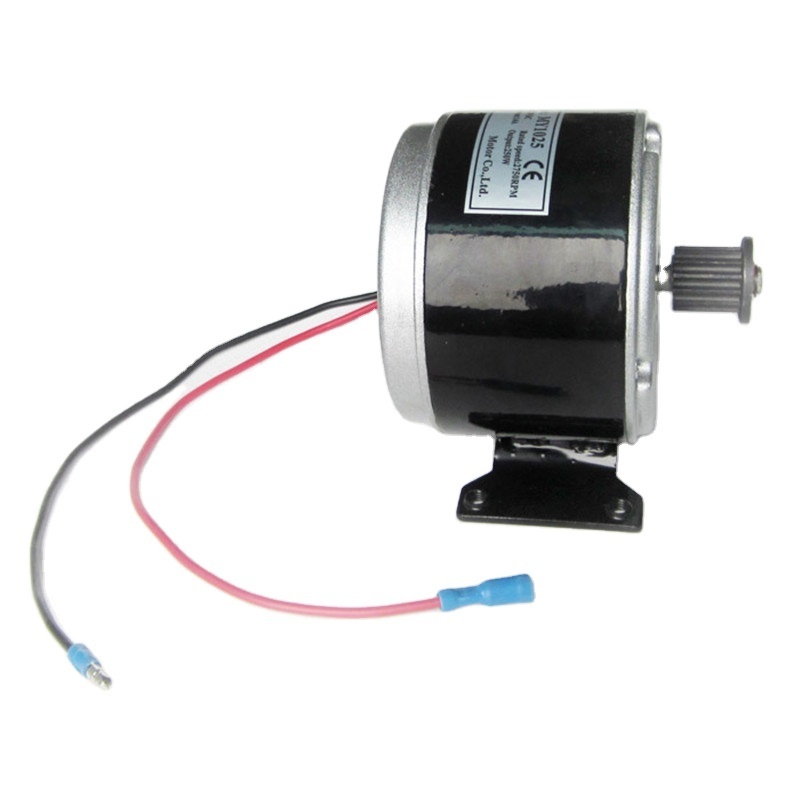

brushed high speed DC motor 2750rpm 24v dc electric motor for bicycle 250W 14A
|
Rated speed
|
2750RPM
|
|
Rated voltage
|
24V
|
|
Rated output
|
250W
|
|
Empty current
|
1.6A
|
|
Rated current
|
less than 14A
|
|
Motor weight
|
1.9kg
|
|
Motor diameter
|
101mm
|
|
Motor length
|
110mm
|
|
Reference load
|
75kg
|
|
Speed
|
about 25 kilometers per hour
|
|
Mounting holes
|
Mounting holes
|
|
Motor gear
|
13 tooth belt gear
|
|
Applicable belt
|
535-5m -15 for driving belt
|
|
Model
|
MY1025
|
